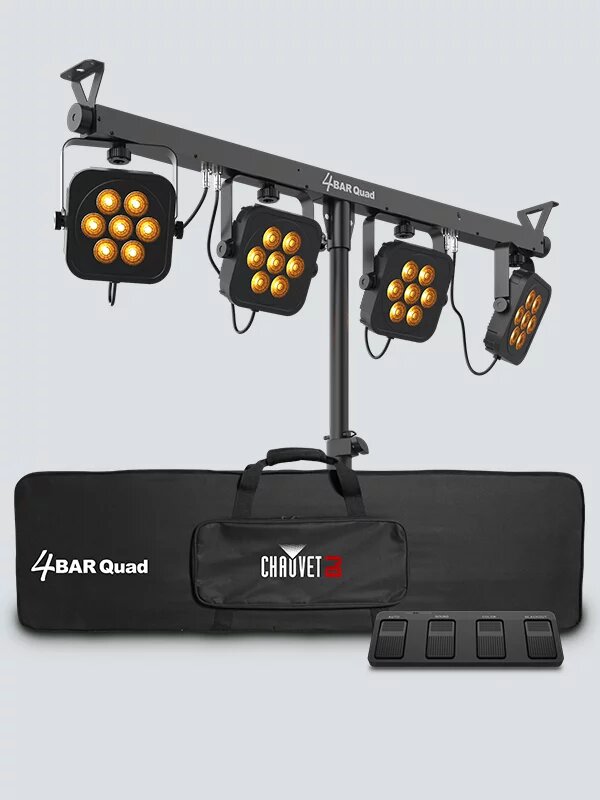

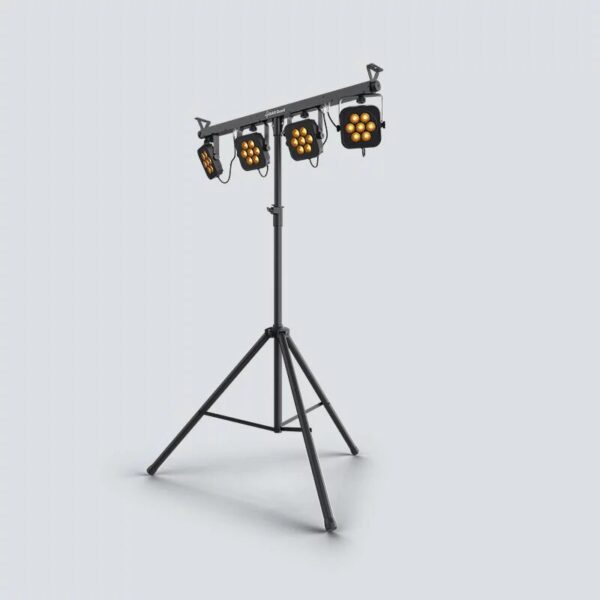

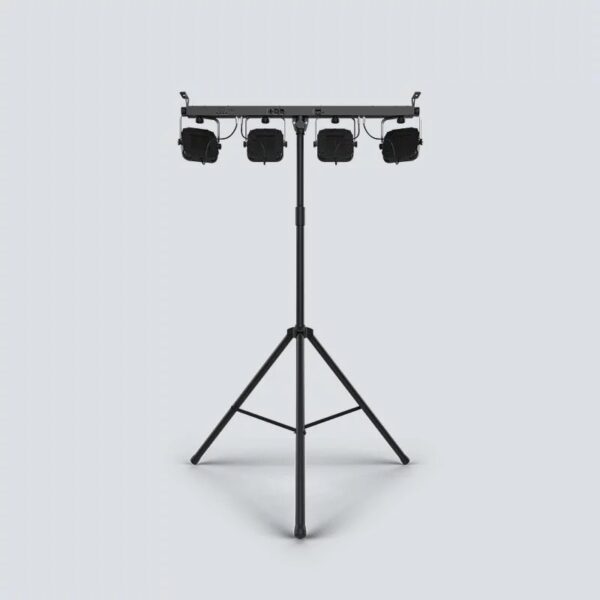

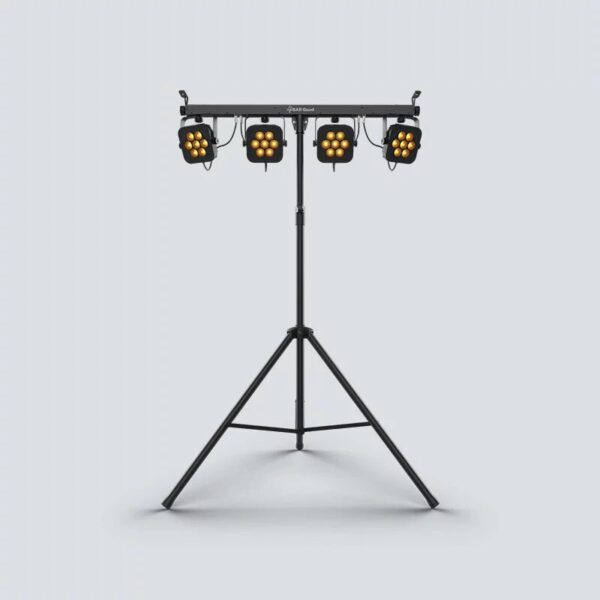

Chauvet DJ 4BAR Quad

Highlights

• Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• Out of the box wireless control with included footswitch or optional IRC-6 controller
• Easily set up and tear down in minutes with the included tripod stand and carrying bags
• D-Fi™ USB compatibility for wireless Master/Slave or DMX control
• Achieve total room or stage coverage with 4 individually adjustable heads
• Increase mounting options by safely mounting to truss using built-in bolts

Specifications

• DMX Channels: 4, 6 or 19
• DMX Connectors: 3-pin XLR
• Max Unobstructed Distance: (foot switch): 100 ft (30.5 m)
• Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 1310 Hz
• Beam Angle: 14°
• Field Angle: 23°
• Operating Frequency: (D-Fi): 2.412 to 2.484 GHz
  (foot switch): 433 MHz
• Fits Tripod Size: 1.5 in (36.80 mm)
• Illuminance: 2,353 lux @ 2 m (per pod)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz
  78 W, 0.6 A @ 230 V, 50 Hz
• Weight: 12.2 lb (5.5 kg)
  (Controller): 1.2 lb (0.6 kg)
• Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
  (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
• Approvals: CE, FCC
• Footswitch battery: 9 V
• Stand Height: 7 ft 4 in (2.2 m)
• Bracket Mounting Hole: M10 (1.5 mm pitch)
• Optional Controllers: IRC-6, D-Fi USB

WHAT’S INCLUDED

• 4Bar Quad
• Power cord
• Carrying bag
• Tripod
• Tripod Carry bag
• Wireless Footswitch
• Quick Reference Guide
