Chauvet Professional Cloud 9

At a Glance

Professional fogger gives high-impact low-lying fog effect on stage or in ballrooms

Continuous operation produces fog to cover 3,230 ft2 (300 m2) area

Ultrasonic agitator combines distilled water with fog to produce low-lying fog effect

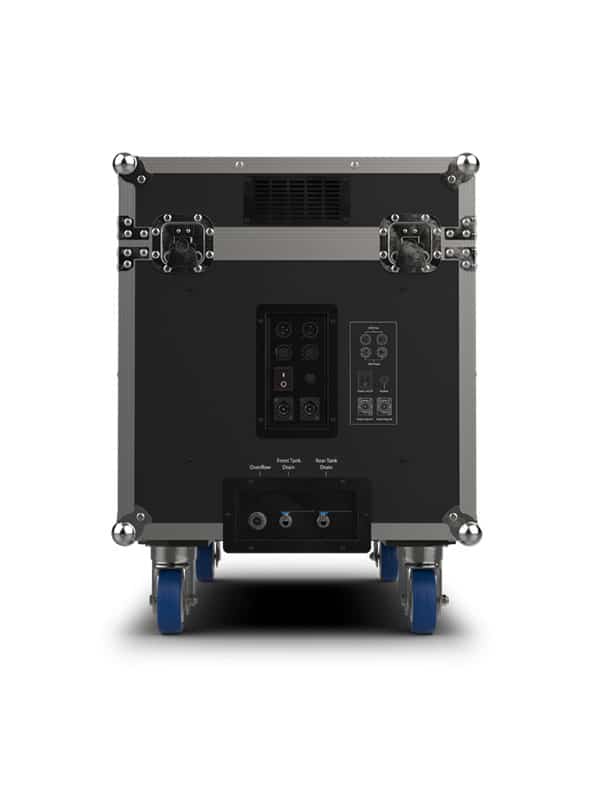

Ships in rugged flight case with locking casters with hinged top cover to allow for operation even when closed

Control via on board digital display or DMX

Integrated water drain system makes cleanup fast and easy

Use the low-lying fog fluid (LLG) to product the CO2 effect, which lasts for several minutes before dissipating

Use without dry ice or CO2, so no special licensing/training required

Specifications

Dynamic Effects

Output: 15,000 cfm

Low Fluid Shutdown: Yes

HDF- Best overall performance for a medium to large coverage area. Fog dissipates after lifting into the air.

PHF- Great dual-purpose effect. Good coverage area. Fog lifts into the air to become haze.

Construction / Physical

Dimensions: 33.85 x 19.29 x 24.80 in (860 x 490 x 630 mm)

Output Nozzle (outer diameter): 4.76 in (121 mm)

Hose Length (fully extended): 8 ft (2.44 m)

Weight: 121.3 lb (55.8 kg)

Exterior Color: Black

Fluid Tank Capacity: 0.92 gal (3.5 l)

Water tank Capacity: 5.3 gal (20 l)

Fluid Consumption: 29 ml/min (0.007 gal/min)

Water Consumption (distilled): 165 ml/min (0.044 gal/min)

Maximum Run Time: 2 hours max runtime @ 100% output

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65 (2x 120 V, 1x 230 V)

Data Connectors: 3- and 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX,

DMX Channels: 2

Modes/Personalities: 1 personalities (2)

On-Board Control: Yes

Electrical

Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz

Power and Current (input A): 1000 W, 8.36 A @ 120 V, 60 Hz (120 V version)

Power and Current (input B): 1130 W, 9.40 A @ 120 V, 60 Hz (120 V version)

Power and Current: 2,600 W, 11.3 A @ 230 V, 50 Hz (230 V version)

Heat-up Time: 3 min

Breaker Size: 15 A (Input A, 120 V version)

Breaker Size: 20 A (230 V version)

Certifications / Qualifications

CE

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Thermal Dissipation @ 120V: 7,265 BTU per hour (max)

Thermal Dissipation @ 230V: 8,870 BTU per hour (max)

What’s Included

Cloud 9

2 Seetronic Powerkon IP65

Directional hose and hose clamp

Overflow polyurethane tubing, 8.5 mm, 3ft (0.9 m)

Required Accessories

LLG
