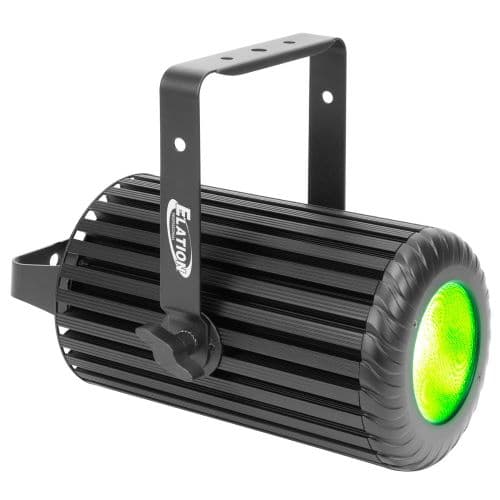

Elation COLOUR PENDANT

Features

41° Beam Angle – 66° Field Angle

Fully Blended Color Transformations

Adjustable Frequency Settings for Flicker FREE Operation for TV and FILM

Convection Cooled / Silent Operation

Removable Pendant and Yoke Mounting Brackets

E-Fly™ Internal Extended Range Wireless DMX Transceiver



Specifications

SOURCE

(36) 3W RGBW LEDs

100,000 Hour Average Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



PHOTOMETRIC DATA

3,650 LUX 339 FC @3.3’ (1m) (41°Full ON)

1,020 LUX 95 FC @6.6’ (2m) (41°Full ON)

458 LUX 43 FC @9.8’ (3m) (41°Full ON)

255 LUX 24 FC @13.1’ (4m) (41°Full ON)

164 LUX 15 FC @16.4’ (5m) (41°Full ON)



EFFECTS

Strobe and Color Macros

Dimming : 0% – 100%

Selectable Dimming Curves



CONTROL / CONNECTIONS

11 DMX Channel Modes (1 / 3 / 4×2 / 5×2 / 6×2 / 7 / 8 / 10)

Frequencies (1200Hz, 2400Hz, 4800Hz, 9600Hz)

E-Fly™ Internal Extended Range Wireless DMX Transceiver

4 Button Control Panel and LCD Menu Display

5pin DMX In/Out

RDM (Remote Device Management)

Locking Power Cable In

With Wired Digital Communication Network



SIZE / WEIGHT

Length: 14.7” (374 mm)

Width: 9.9” (252.5 mm)

Horizontal Height: 12.0” (308.8 mm)

Weight: 14.0 lbs. (6.4 kg)



ELECTRICAL / THERMAL

AC 100-240V – 50/60Hz

110W Max Power Consumption

-14°F to 113°F (-10°C to 45°C)



APPROVALS / RATINGS

CE | cETLus | IP20



INCLUDED ACCESSORIES

(1) Locking Power Cable



OPTIONAL ACCESSORIES:



COL110/ESK – Exterior Shroud Kit – Black



COL123/ESK – Exterior Shroud Kit – White
