Sennheiser EW 500 G4-MKE2

EM 300-500 G4

• Frequency range

• Dimensions

  Approx. 202 x 212 x 43 mm

• Compander

  Sennheiser HDX

• THD, total harmonic distortion

  ≤ 0.9 %

• Weight

  Approx. 980 g

• Audio output

  6.3 mm jack socket (unbalanced): +12 dBu

  XLR socket (balanced): +18 dBu

• Signal-to-noise ratio

  ≥ 115 dBA

• Switching bandwidth

  up to 88 MHz

• Peak deviation

  ±48 kHz

• Nominal deviation

  ±24 kHz

• Modulation

  Wideband FM

• Power supply

  12 V DC

• Antenna connector

  2 BNC sockets

• Current consumption

  350 mA

• Adjacent channel rejection

  Typically ≥ 75 dB

• Intermodulation attenuation

  Typically ≥ 70 dB

• Receiving frequency

  Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

• RF sensitivity

  < 2.5 μV for 52 dBA eff S/N

• Squelch

  5 to 25 dBμV in steps of 2 dB

• Equalizer

  Preset 1: Flat

  Preset 2: Low Cut (-3 dB at 180 Hz)

  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  Preset 4: High Boost (+6 dB at 10 kHz)

• Temperature Range

  -10 °C to +55 °C

• Receiver Principle

  True diversity

• Blocking

  ≥ 75 dB

What’s in the Box

• EM 300-500 G4 true diversity receiver
• SK 500 G4 bodypack transmitter

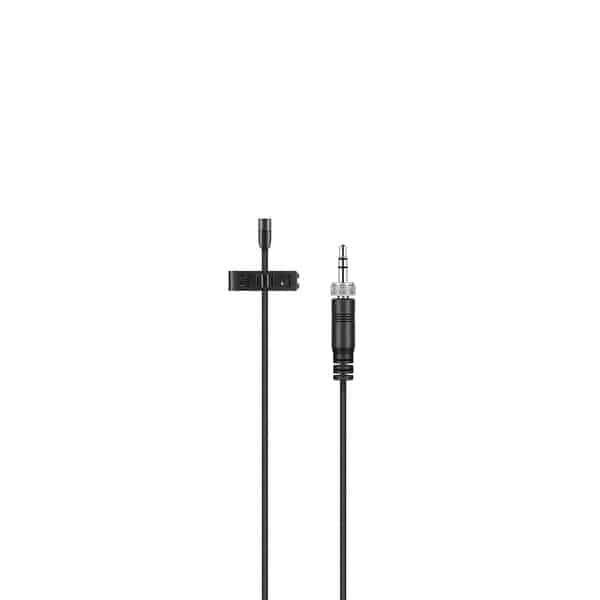

• MKE 2 clip-on microphone
• GA 3 rackmount set
• 2 AA batteries
• 2 rod antennas
• power supply
• quick guide
• safety guide
• manufacturer declaration sheet
