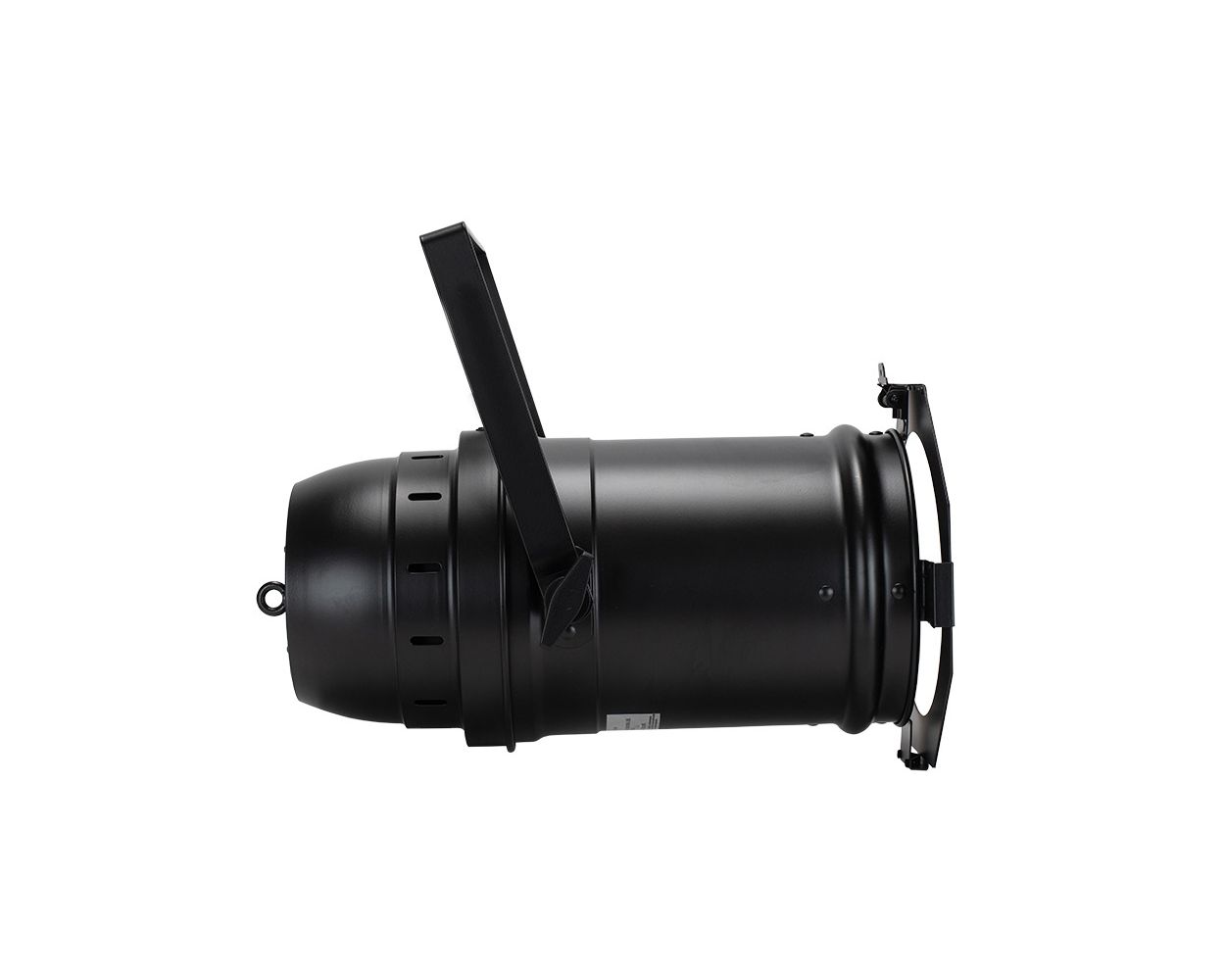

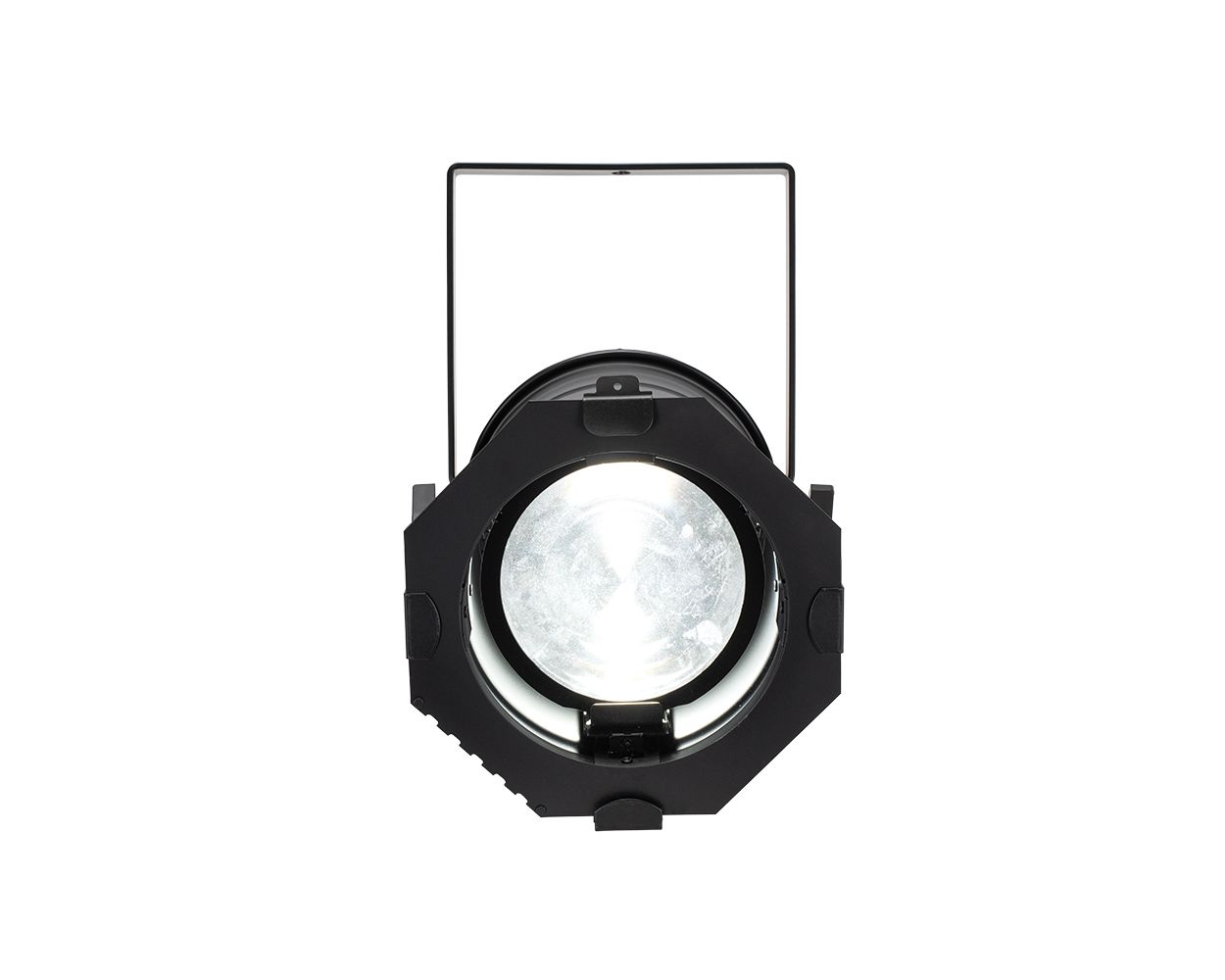

ADJ Par Z300 6K

• Aria X2 Wireless Management System

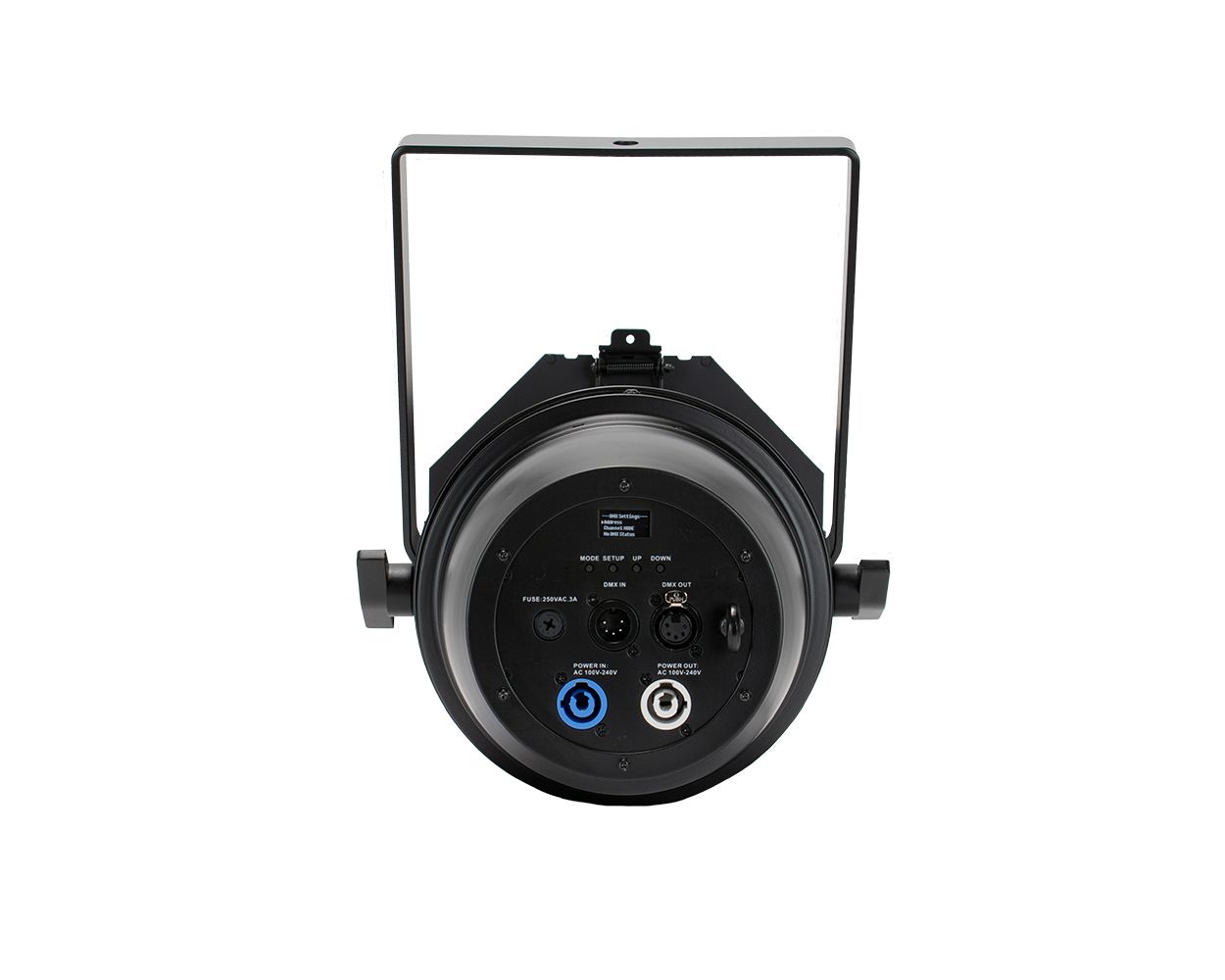

• 4-button DMX menu display on rear panel
• OLED display
• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• Strobe Rate: 0.6Hz to 7.5Hz
• Selectable Refresh Rates: 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 10KHz, 15KHz, 20KHz, 25KHz
• Electronic Dimming: 0 – 100%
• 6 Dim Modes

Optical:

•  300-Watt, 6000K Cool White C.O.B. LED (Chip On Board)
•  Life expectancy: rated at 50,000 hrs.
•  Manual Zoom: 9°, 15°, 20°, 25°, 30°, 35° and 40°
•  Zoom Ratio: 4.4:1

Photometrics:

• • 13980 Lux (Zoomed In to 9° @ 5 meters)
• 1828 Lux (Zoomed Out to 25° @ 5 meters)
• CRI: 95

Connection:

• DMX: 5-pin DMX In/Out
•  With Wired Digital Communication Network
•  Locking IP20 Power In/Out connections

Control:

• Aria X2 Wireless Management System
• DMX-512
•  3 DMX control modes: (1, 3 & 4 Ch. modes)
•  RDM and RDM Net Compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode

Electrical:

•  Power Draw Total (@ Full On): 320W
•  Power Consumption: 2.7A @ 120V/60Hz ; 1.5A @ 220V/50Hz
•  Multi-voltage operation: AC 100-240V, 50/60Hz
•  Daisy chain: 2 fixtures @ 120V; 4 fixtures @ 230V
•  Fuse protected: 8A/250V

Ambient Temperature Range (For Use):

•  -4° ~ 104°F (-20°C ~ 40°C)

Storage Temperature Range:

•  -22° ~ 113°F (-30°C ~ 45°C)

Dimensions / Weight:

•  Dimensions (LxWxH): 20.08” x 15.33” x 10.14” / 510 x 389.3 x 257.5mm
•  Weight: 13.23 lbs. / 6kg.

IP Rating / Approvals:

•  IP20
•  CE & FCC
•  ETL Approved (Pending)

What’s Included:

•  Gel Frame
•  Power Cord

Specifications subject to change without notice.
