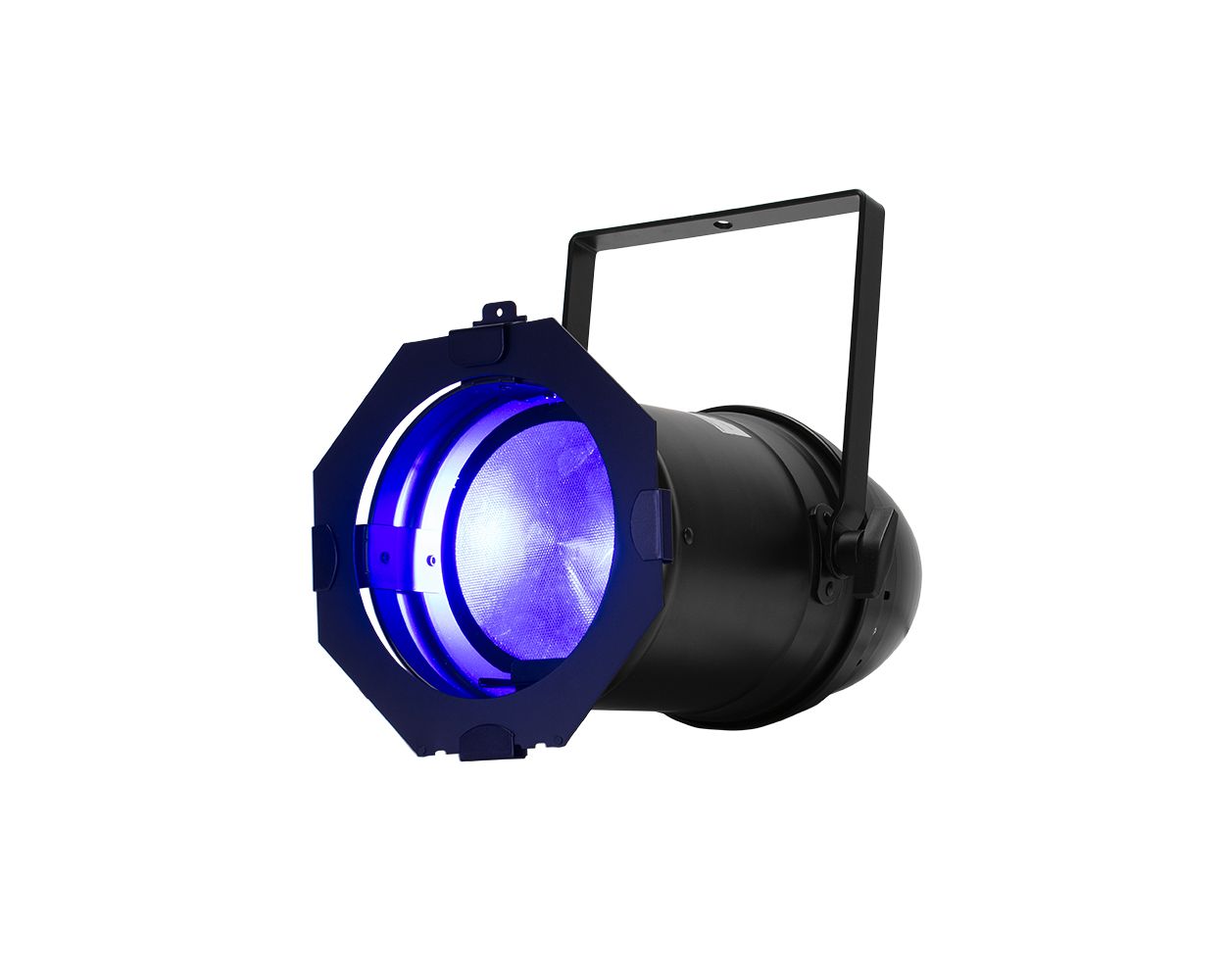

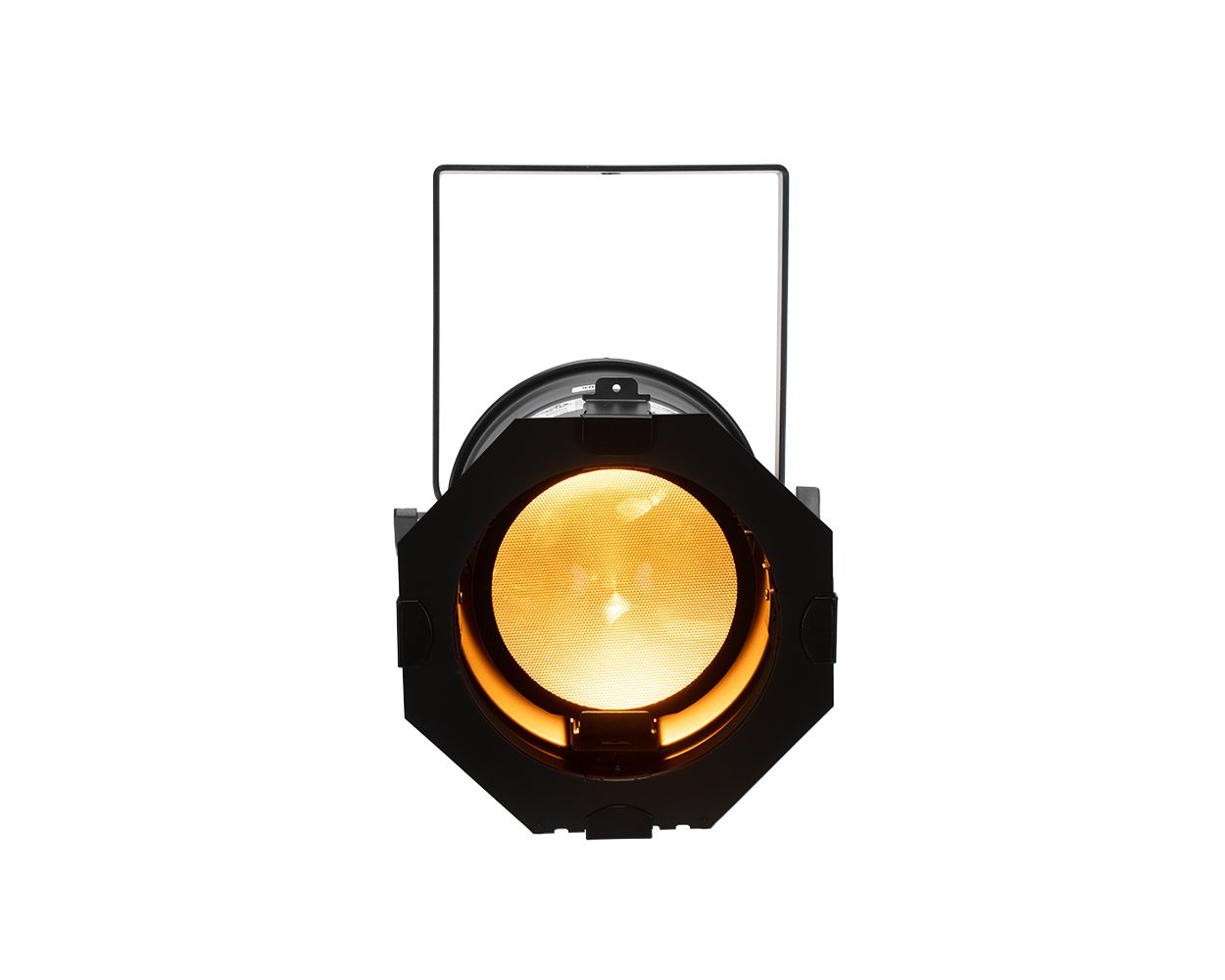

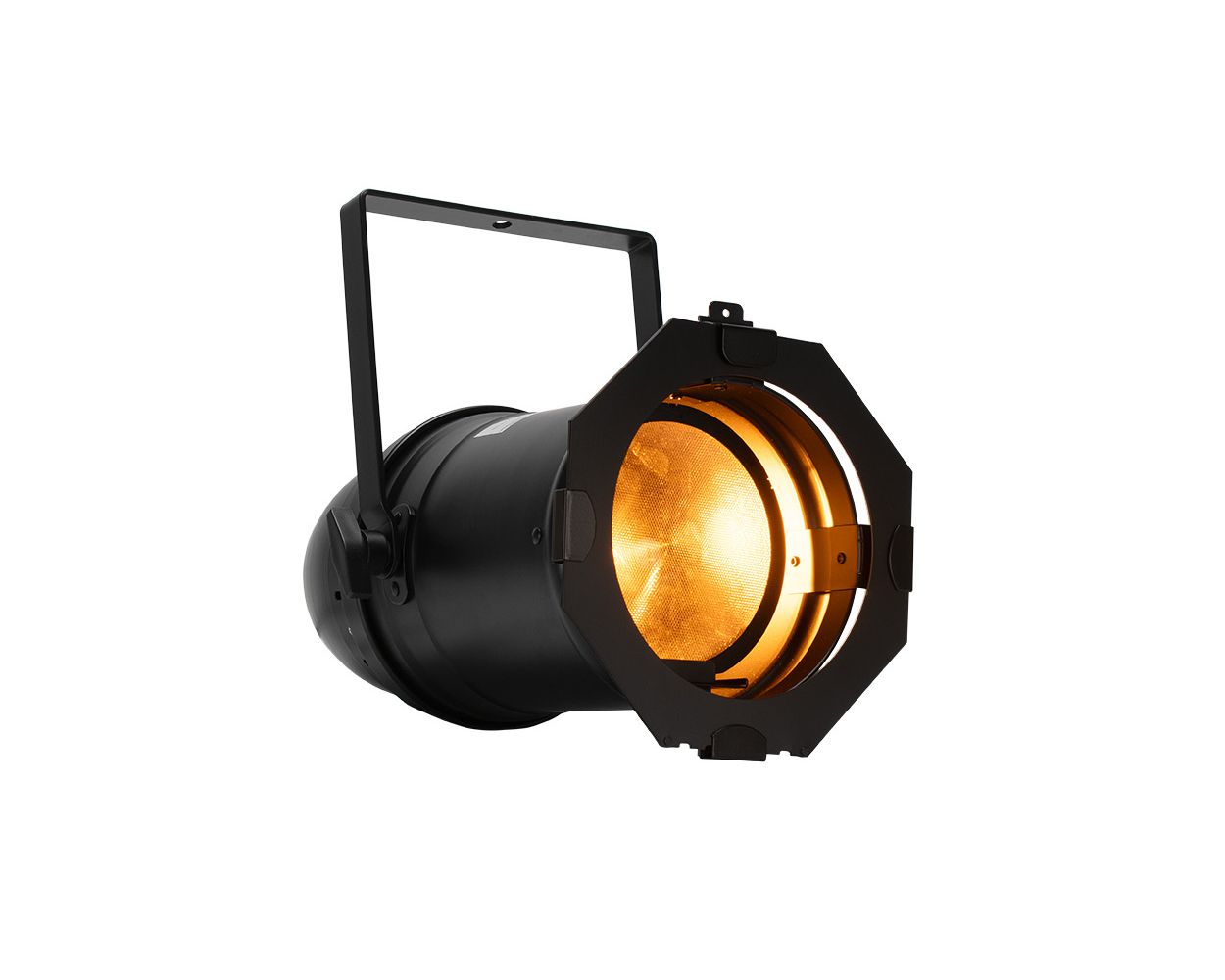

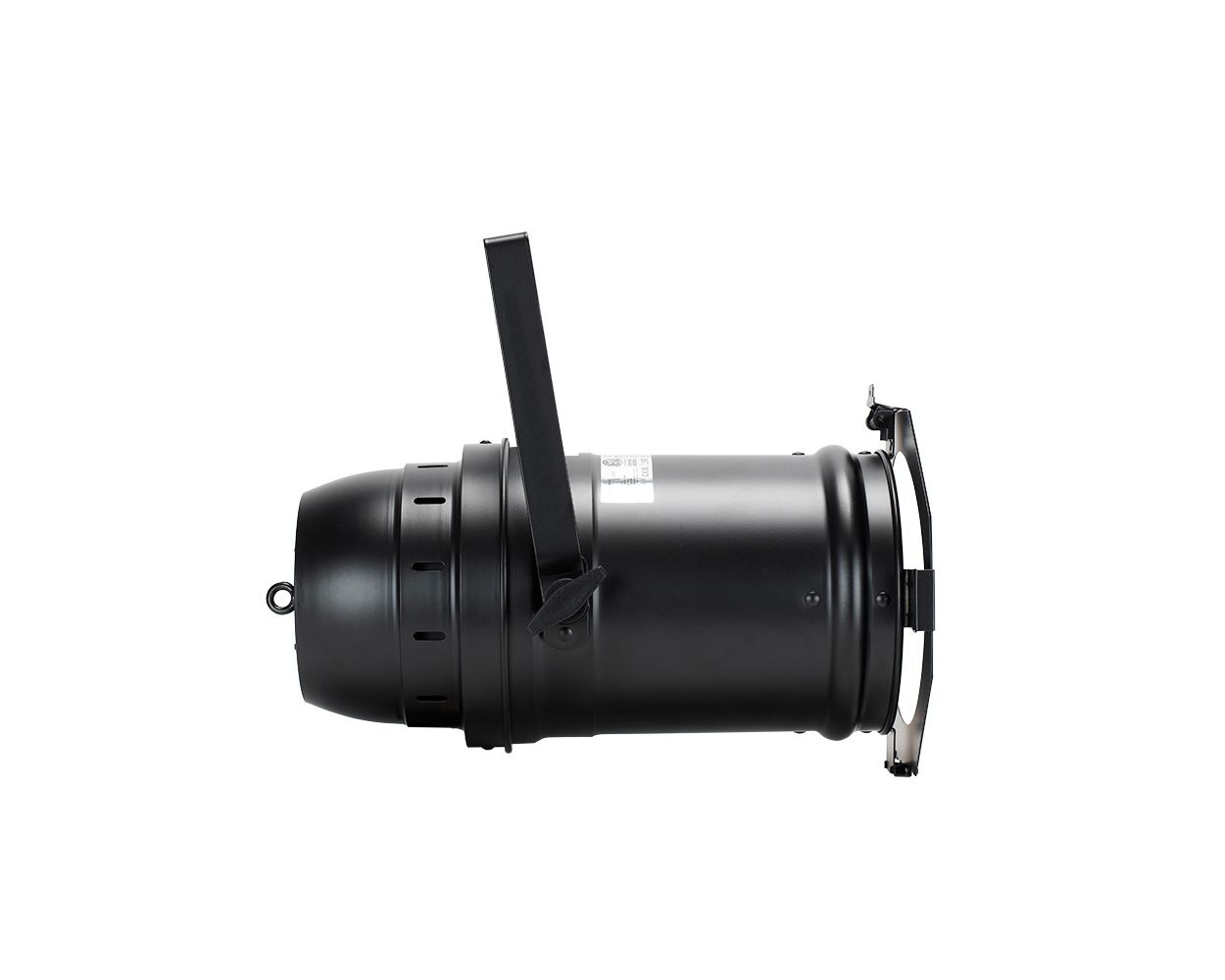

ADJ Par Z300 RGBA

Optical:

• 300-Watt Quad RGBA C.O.B. LED (Chip On Board – Red, Green, Blue & Amber)
• Life expectancy: rated at 50,000 hrs.
• Manual Zoom: 9, 15, 20, 25, 30, 35 or 40-degrees
• Zoom Ration: 4.4:1

Photometrics:

• 5230 Lux (Zoomed In to 9°)
• 597 Lux (Zoomed Out to 40°)
• CRI: >90

Connections:

• DMX: 5-pin DMX In/Out
• With Wired Digital Communication Network
• Locking power In/Out connections

Control:

• DMX-512 and Aria X2 Wireless DMX / APP
• 9 DMX control modes: (4/5/9A/9B/13 & 15 Ch. modes)
• RDM and RDM Net Compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode

Features:

• Aria X2 Compatible
• Linear white color temperature control (2300K ~ 9900K)
• Color Temperature Presets (2300K ~ 9900K)
• 4-button DMX menu display on rear panel
• OLED display
• Adjustable latch to manually change beam angle

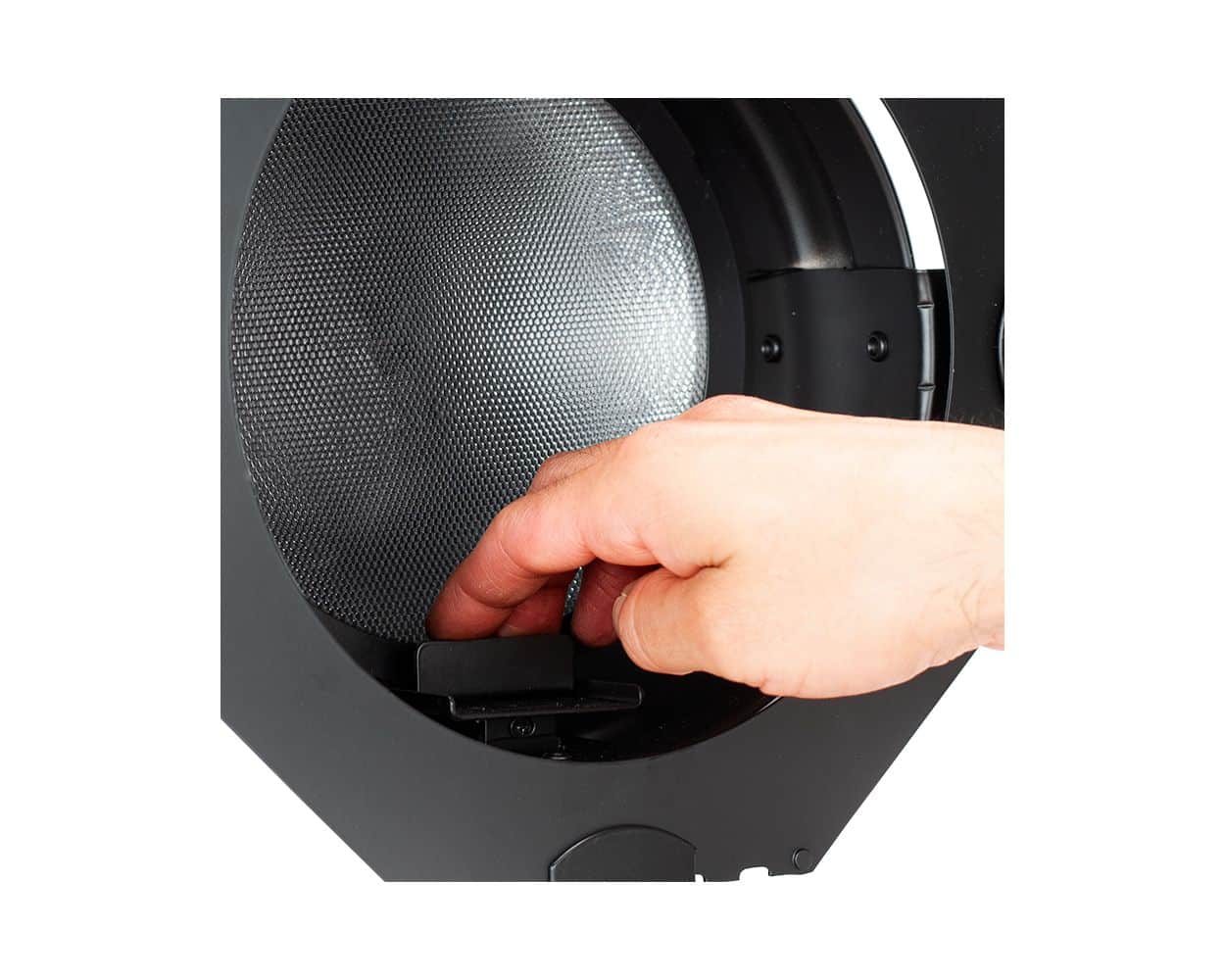

• • Includes gel frame for diffusion filters (Diffusion filter sold separately)
• • 64 Built-in Color Macros
• • 13 Built-in Internal Programs
• • Strobe Rate: 0.6Hz to 7.5Hz
• • Selectable Refresh Rates: 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 10KHz, 15KHz, 20KHz, 25KHz
• • Electronic Dimming: 0 – 100%
• • 6 Dim Modes
• • 4 Dim Curves
• On-board, color balance feature for each color (RGBA)


Electrical:

• Power Draw Total (All LED’s @ Full On): 320W
• Power Consumption: 2.7A @ 120V/60Hz ; 1.5A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Daisy chain: 2 fixtures @ 120V; 4 fixtures @ 230V
• Fuse protected: 8A/250V

Ambient Temperature Range (For Use):

• -4° ~ 104°F (-20°C ~ 40°C)

Storage Temperature Range:

• -22° ~ 113°F (-30°C ~ 45°C)

Dimensions / Weight:

• Dimensions (LxWxH): 20.08” x 15.33” x 10.14” / 510 x 389.3 x 257.5mm
• Weight: 13.23 lbs. / 6kg.

IP Rating / Approvals:

• IP20
• CE & FCC
• ETL (Pending)

Included Accessories:

• Gel Frame

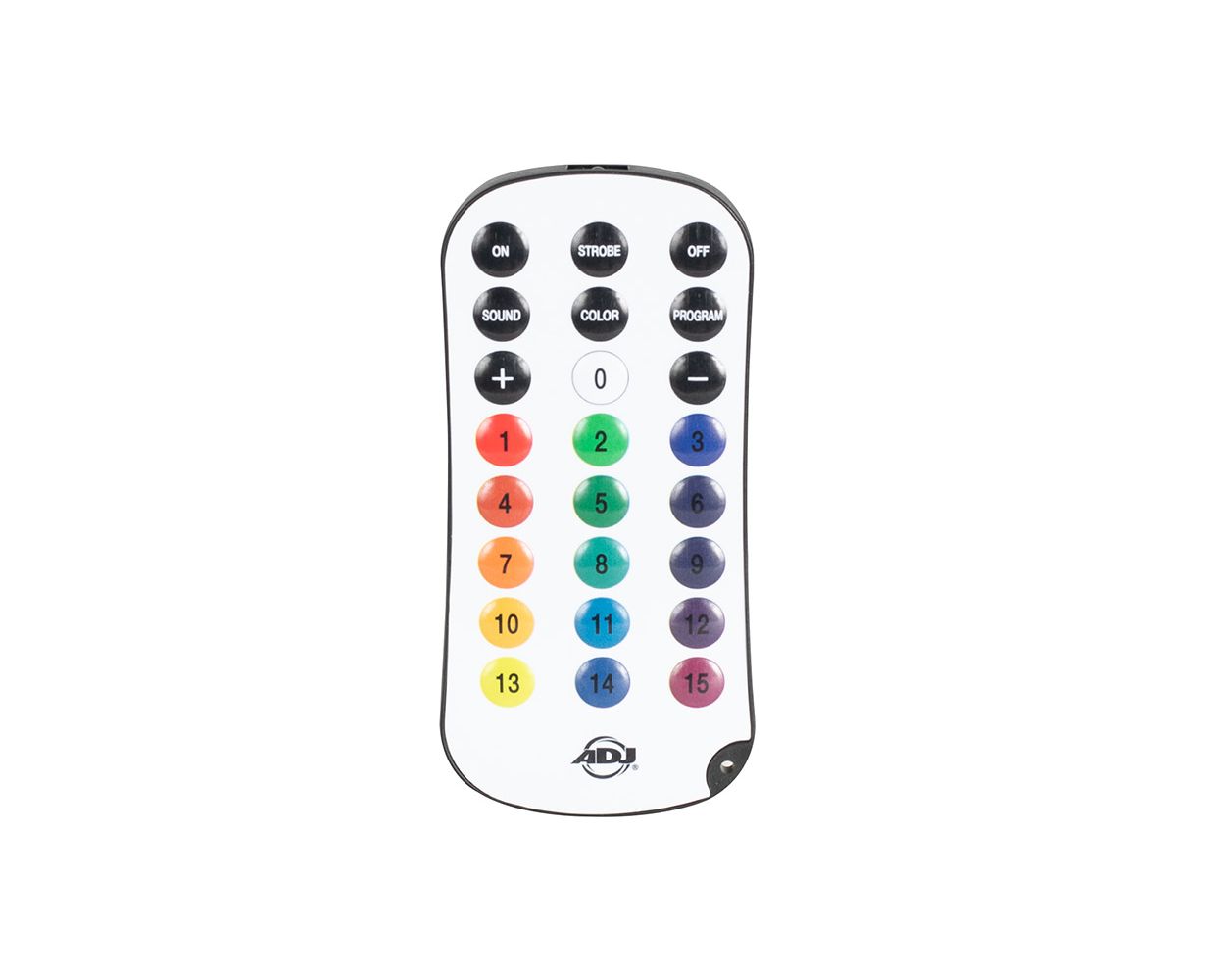

• UCIR24 Wireless Remote
• Power Cord

Specifications subject to change without notice.
