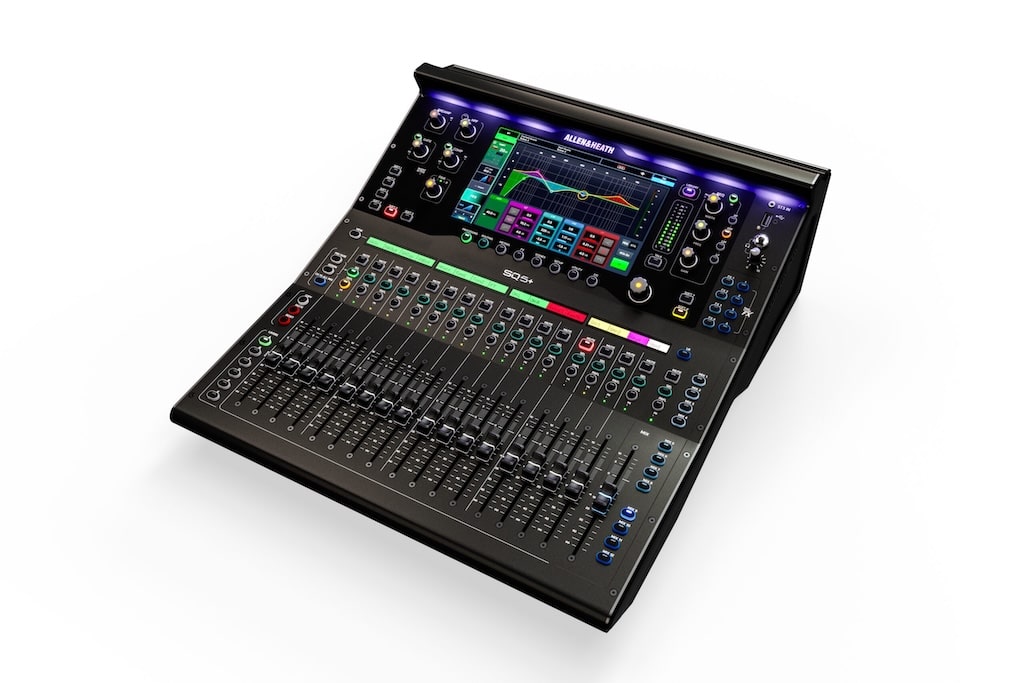

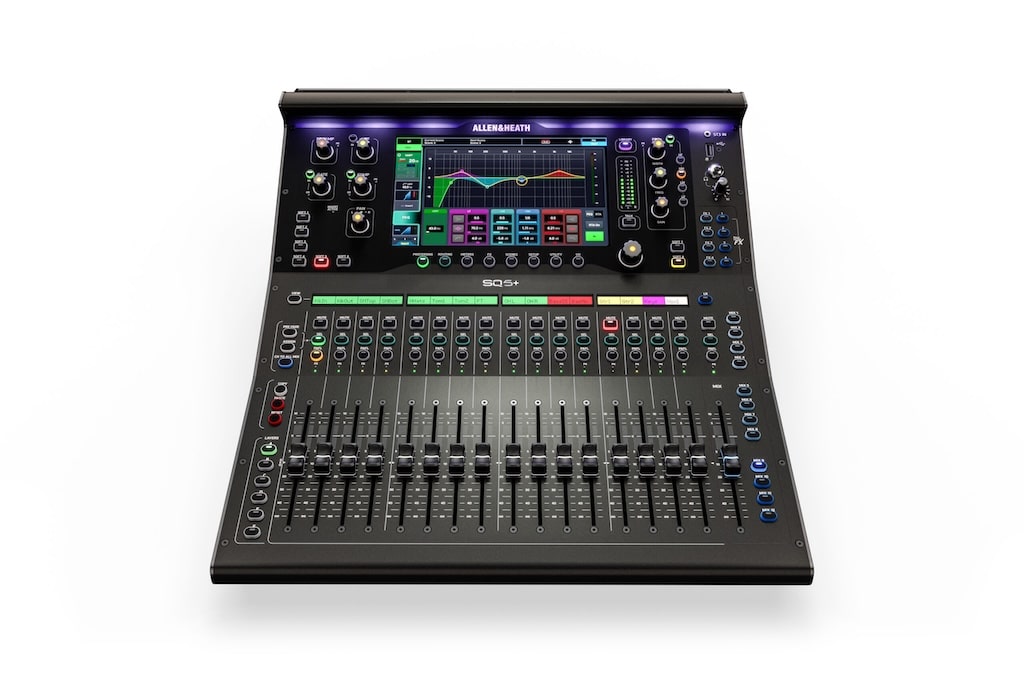

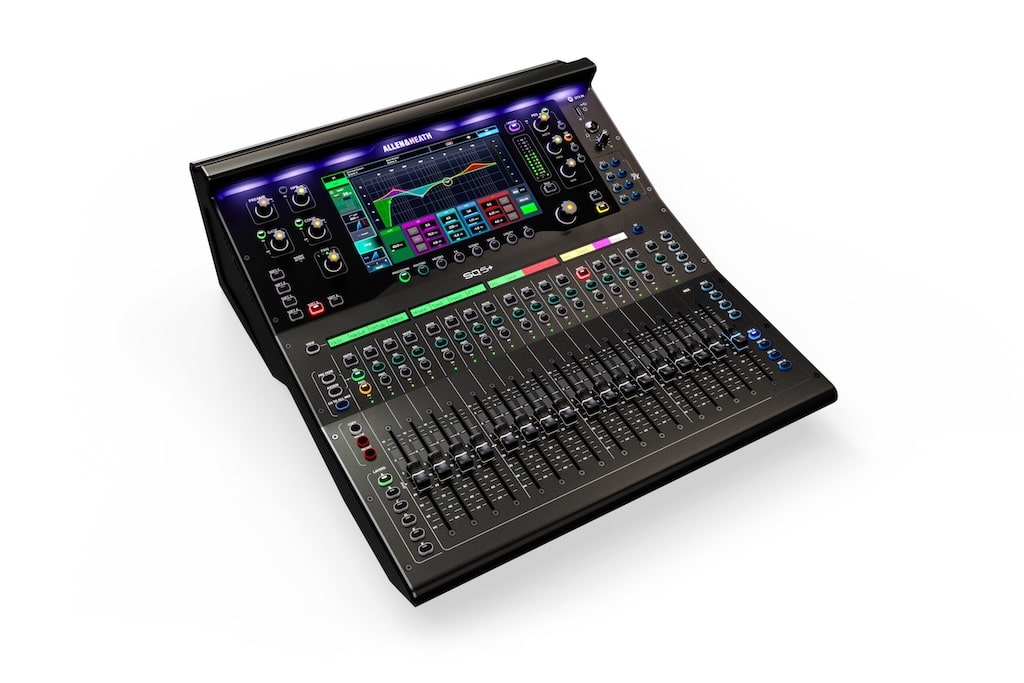

A Bigger, Bolder Interface

SQ+ is centred around a responsive 9” touchscreen with an all-new dark GUI that is fast to navigate and easy to read in any mixing environment. Framed by high-grip illuminated encoders, it delivers an intuitive blend of visual feedback and hands-on control.

Drag-and-Drop Layout

Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, letting you build a mixing environment that works for you.

At-a-Glance Metering

Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication down to -72dB thanks to LEDs with variable brightness and colour.

Accelerate Your Workflow

All SQ+ mixers feature assignable SoftKeys for quick access to the functions you use the most. The SQ6+ and SQ7+ also include assignable SoftRotaries for even more custom control.

Specifications

Audio and Processing:

96kHz XCVI Core
48x Inputs to Mix
12x Stereo Aux/Group Mixes + LR
6x Mono/Linkable Matrix
Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
DEEP Processing ready
8x Rack Extra FX Engines with dedicated send and return channels
4x RackUltra FX Engines with dedicated send and return channels

Digital I/O:

128×128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
1x AES3 Stereo Digital Output Socket

USB Recording & Playback

USB A: 16 Channels @ 96kHz
USB A: 32 Channels @ 48kHz
USB B Interface: 32×32 @ 96kHz
USB B Interface: 32×32 @ 48kHz

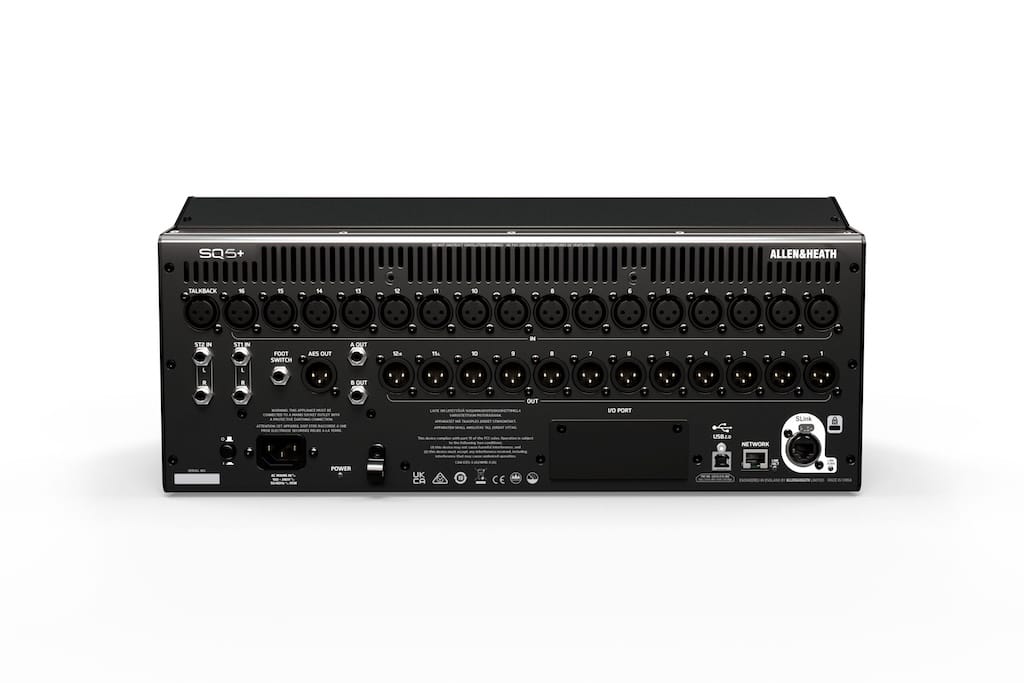

Analogue I/O:

16x XLR Mic/Line Input Sockets
12x XLR Output Sockets
3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)
1x XLR Talkback Socket
2x TRS Output Sockets
Stereo Headphone Output

Control:

17x 100mm Motorised Faders
8x SoftKeys
6x Channel Strip Layers
9” Touchscreen with dark GUI
Configurable single/dual Footswitch Connection
Remote control via free apps – Windows/MacOS/iOS/Android

19” Rack Mountable (optional kit available)

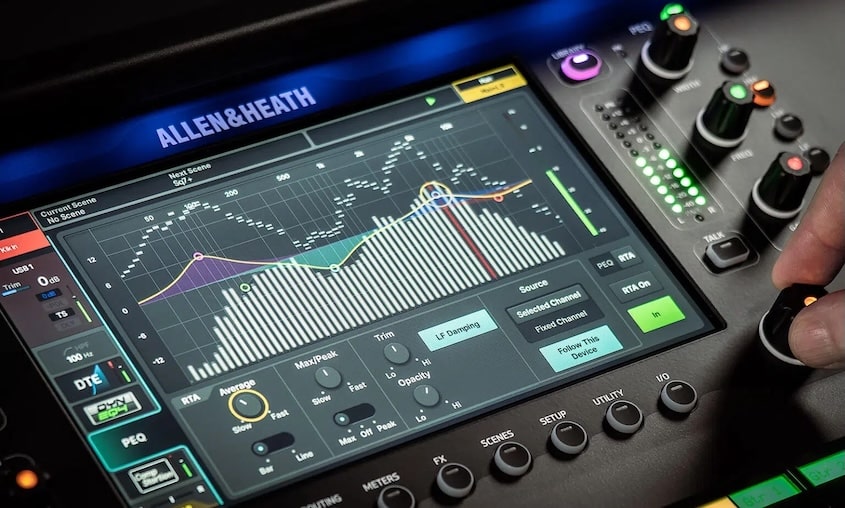

All the Tools for the Perfect Mix

Every input channel comes equipped with HPF, a super-fast gate with sidechain and filter, a freely assignable insert point, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients. Mixes include both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.

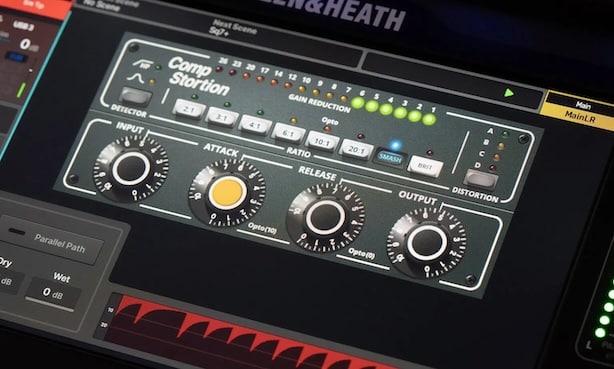

DEEP Processing — Latency Free Emulations

SQ+ supports the latest generation of DEEP processing add-ons – models of classic analogue hardware embedded directly into your channel and mix strips, adding no latency, and available on every channel simultaneously.

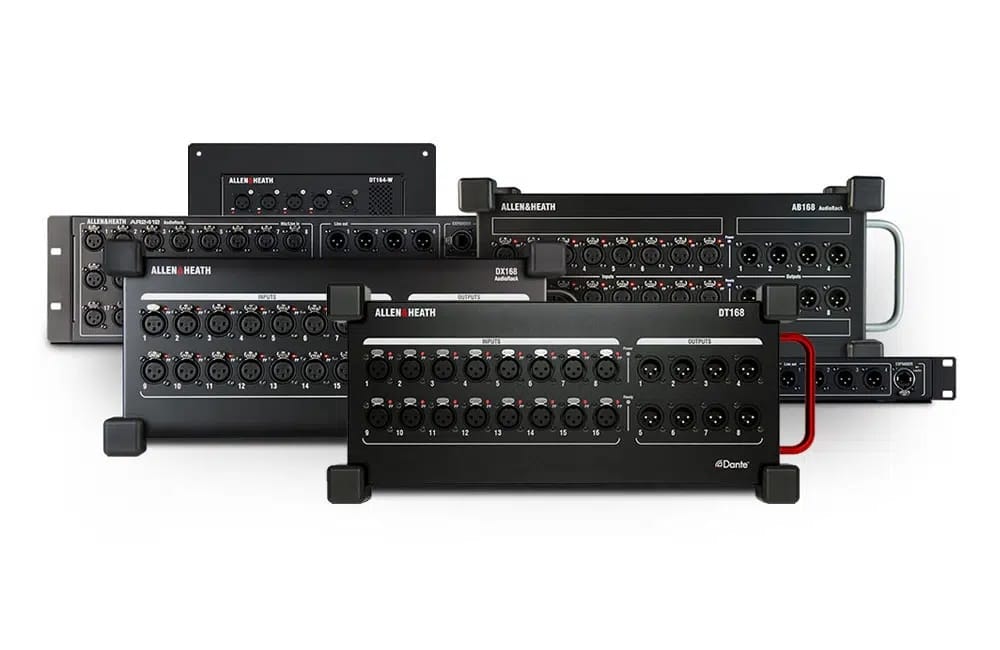

Everything I/O

The 128×128 Intelligent SLink port opens up the entire Allen & Heath Everything I/O ecosystem, connecting seamlessly to a wide range of remote stage boxes, expanders, and other Allen & Heath consoles.

Allen and Heath SQ Plus Digital Audio Console

Automatic Mic Mixing

SQ+’s advanced Automatic Mic Mixers make it a natural choice for mixing conferences, panel discussions, and broadcast applications. Two independent 24 channel AMM’s can run simultaneously for two separate zones or combine into a single 48 channel AMM for larger events.

Two FX Suites. Twelve FX Engines

SQ+ is equipped with 8 RackExtra FX engines, each with its own dedicated stereo return, giving you access to the acclaimed RackExtra FX suite, featuring emulations of legendary reverbs, gated reverbs, delays, modulators and more.

Four built-in RackUltra FX engines take SQ+ further, each with dedicated stereo sends and returns. First developed for the flagship dLive system, and proven on international tours, the RackUltra FX suite of add-ons brings premium reverbs, vocal tuning and pitch processors, distortion, saturation, and more to SQ+. The 4 engines can also run RackExtra FX for maximum flexibility.

Allen & Heath SQ5+ | 48 Channel, 17 Fader Digital Mixer
