Key Features
-
Beam Angle: 2°
-
Color: Virtual CMY Color Mixing
-
Frost: Frost Filter
-
Lamp Source: OSRAM Sirius HRI 310W PRO Discharge Lamp
-
Prism: Dual Prism Wheels

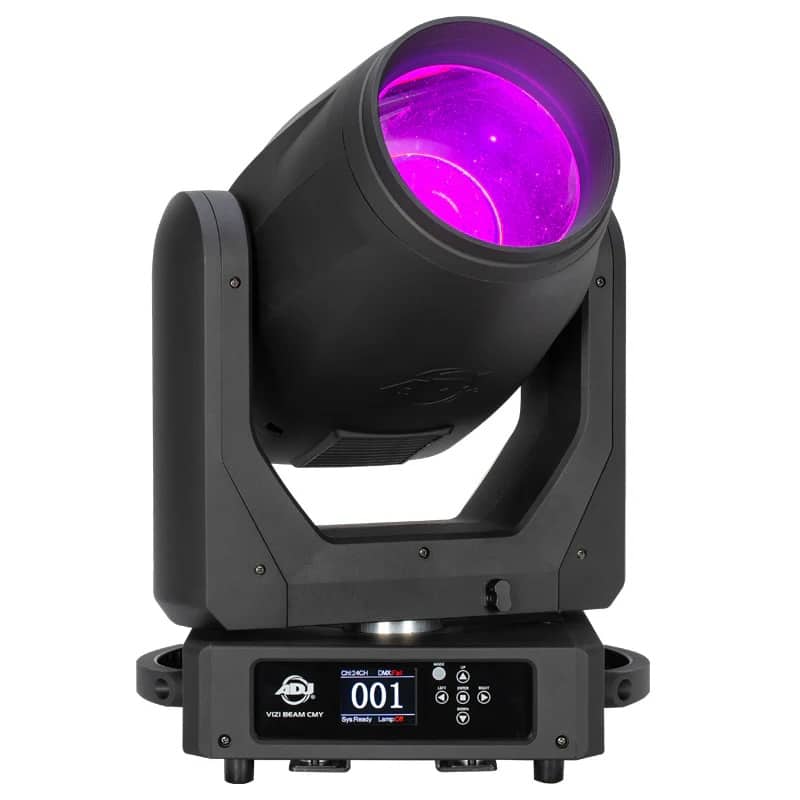

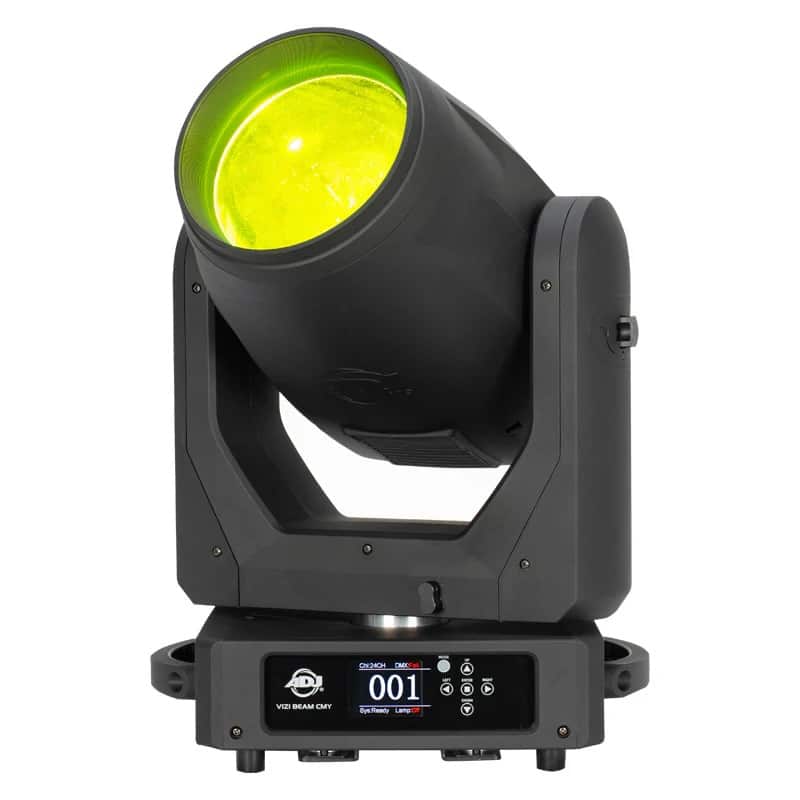

ADJ Vizi Beam CMY – Professional Moving Head Beam Light for Stage & Event Lighting
Elevate your stage and event productions with the ADJ Vizi Beam CMY, a powerful moving head beam light built for professional lighting designers, DJs, and touring productions. Engineered with a 310W Osram Sirius HRI discharge lamp rated at 6,000 hours, this fixture delivers a razor-sharp 2° beam angle and breathtaking aerial effects. High-speed 3-phase pan/tilt motors ensure fast, smooth movement, making it a must-have for concerts, clubs, theaters, and large-scale events.
Take creative control with CMY color mixing and a 14-color dichroic wheel, including CTO (3200K), CTB (9000K), and UV options. The static GOBO wheel offers 17 patterns (including 4 beam reducers) plus shake effects, while motorized focus and 16-bit fine focus deliver precise, professional results. On-board wireless DMX adds convenience and flexibility to your rig.
The Vizi Beam CMY also includes dual rotating prisms (16-facet circular and 6-facet linear with prism overlay), a frost filter for wash effects, and pan/tilt locks for secure transport. With features like 0–100% smooth dimming, variable strobe speeds, and a user-friendly color LCD display, operation is intuitive and reliable.
Designed for professional touring and installations, this beam moving head fixture offers outdoor-rated locking power connectors, 5-pin DMX sockets, multi-voltage operation, and ETL/CE approval. Two fixtures fit perfectly into the ADJ DRC MHX road case for easy transport.
Whether you’re a lighting designer, production company, or venue, the ADJ Vizi Beam CMY is a versatile and high-performance stage lighting solution that blends innovation, reliability, and power.
Specifications
Light Source
-
OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
-
Color Temperature: 7850K (+/- 500K)
-
CRI: 86 (+/- 5)
Features
-
CMY Color Mixing
-
On-board Wireless DMX
-
Motorized Focus with 16-bit Fine Focus
-
2° Beam Angle
-
Frost Filter for Wash Effects
-
High-Quality Glass Lens
-
Dual Rotating Prisms
-
3-Phase High-Speed Motors
-
0–100% Smooth Dimming
-
Pan/Tilt Locks
-
Variable Strobe Speeds
-
OTA Wireless Firmware Updates
-
Fan Cooled
Color Wheel
-
14 Dichroic Colors + White (CTO 3200K, CTB 9000K, UV)
-
Indexable for Split Colors
-
Multi-Color Effect
GOBO Wheel
-
17 Static GOBOs + Open (4 Beam Reducers)
-
GOBO Shake Effect
Prism Wheels
-
2 Rotating Prisms
-
16-Facet Circular and 6-Facet Linear (with Overlay)
Control
-
Protocols: DMX512, RDM
-
Modes: DMX512 / Manual (On-board Controls)
-
Channel Modes: 20 or 24 Channels
-
Aria X2 Wireless Management/DMX System
-
Color LCD Display with 4-Button Menu
-
0–100% Smooth Dimming & Strobe Control
-
Wired Digital Communication Network
Pan/Tilt
-
Pan: 540° (16-bit Fine Pan)
-
Tilt: 270° (16-bit Fine Tilt)
-
3-Phase High-Speed Motors

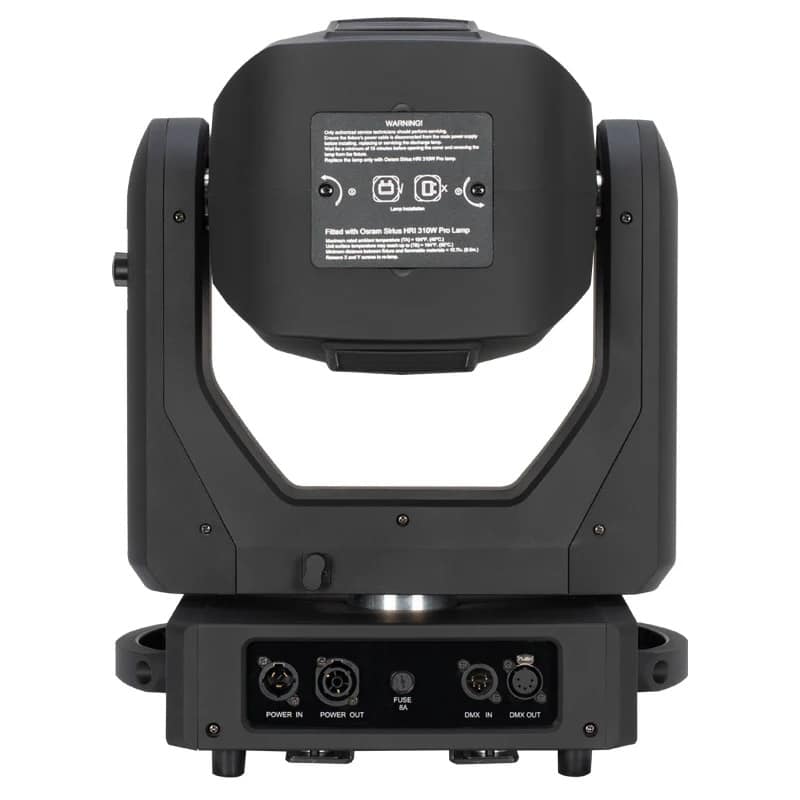

Connections
-
DMX: 5-pin In/Out (Supports up to 32 fixtures per data link)
-
Power: IP65-Rated Locking In/Out for Daisy Chaining
Electrical
-
Multi-Voltage Operation: 100–240V, 50/60Hz
-
Max Power Consumption: 410W (@120V) / 390W (@230V)
-
Fuse Protected: 6.5A
Dimensions & Weight
-
Size: 9.8” L x 14.3” W x 17.9” H (248 x 364 x 454.8 mm)
-
Weight: 38.5 lbs. (17.5 kg)
Certifications
-
CE
-
cETLus (Control #5028947)
-
FCC
Included Accessories
-
(2) Omega Brackets (107 Type)
-
2m Outdoor Locking 14AWG Power Cord
Optional Accessories (Sold Separately)
-
DRC MHX Dual Moving Head Road Case
-
Quick Rig Clamp / Quick Rig Clamp BLK
-
Pro-Clamp
-
Accu-Cable Tour Link 5P15 (15 ft. 5-pin DMX Cable)
-
SIP152 (16 ft. IP65-Rated Locking Power Cord)
