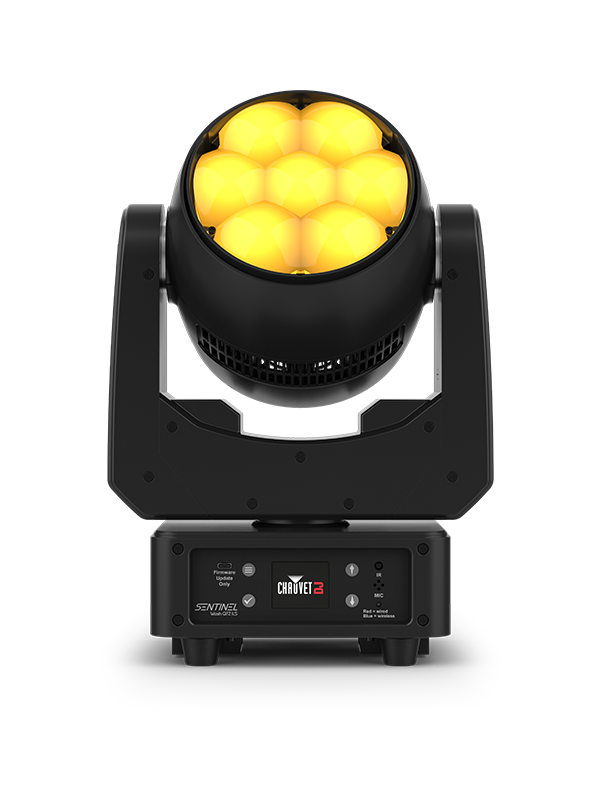

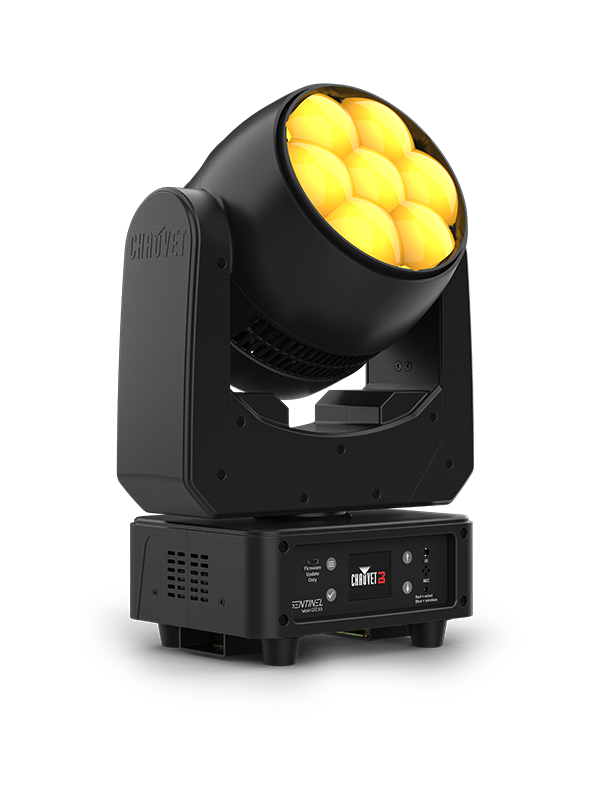

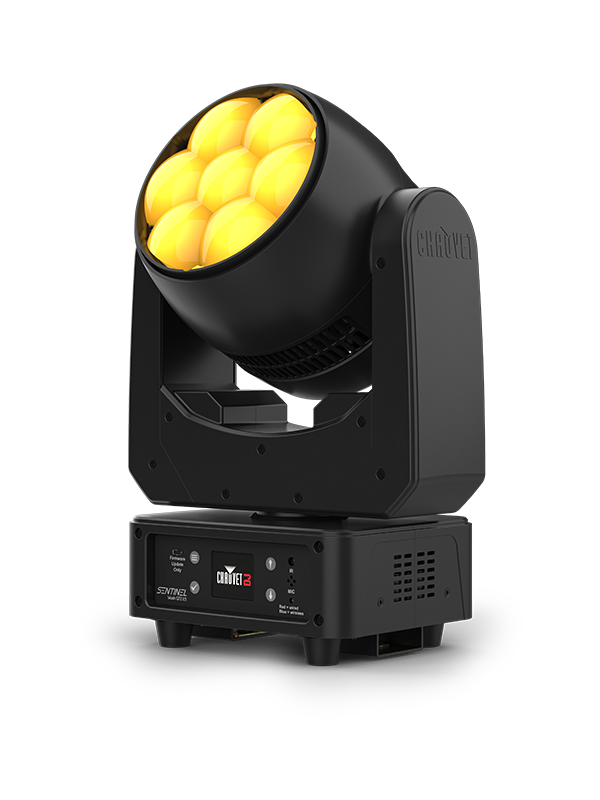

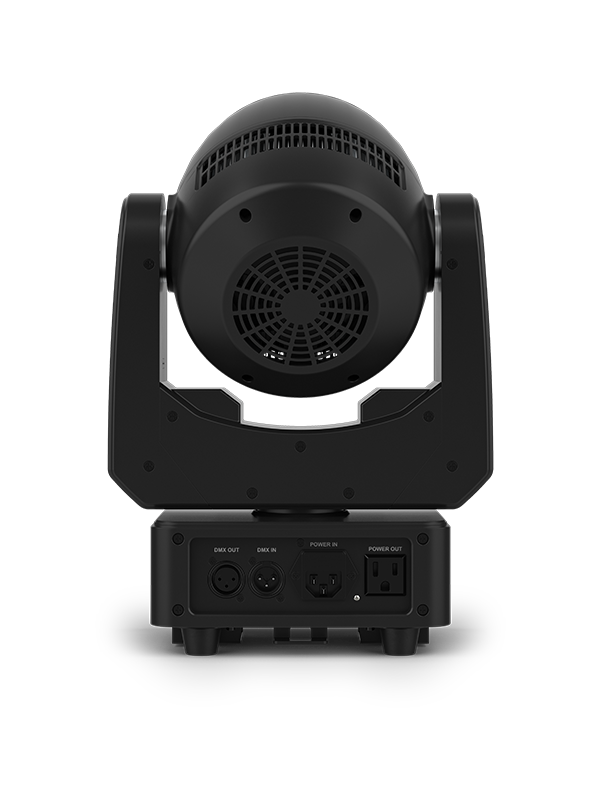

Chauvet DJ Sentinel Wash Q7Z ILS

Highlights

• Compact moving head wash fitted with 20 W quad-color RGBW LEDs
• Motorized zoom for short-throw or long-throw applications
• Built-in DFI transceiver communicates DMX or ILS signals wirelessly
• Easy navigation and access to all functions directly from the full-color LCD display
• ILS compatibility for use in the ILS ecosystem
• Totem Mode keeps the moving head focused on the dance floor
• Save time running cables and extension cords by power linking multiple units
• Fits best in the CHS-40 VIP Gear Bag

Specifications

• DMX Channels: 9 or 14
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/225°
• Pan and Tilt Ranges: 180°, 360°, 540° pan / 90°, 180°, 225° tilt
• Light Source: 7 LEDs (quad-color RGBW), 140 W total (5 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Zoom Angle: 5° to 27°
• Power Linking: 6 units @ 120 V; 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 148 W, 1.2 A @ 120 V, 60 Hz
• Power and Current: 146 W, 0.7 A @ 230 V, 50 Hz
• Weight: 13.8 lb (6.3 kg)
• Size: 14.2 x 10 x 7.41 in (362 x 255 x 188 mm)
• Approvals: CE, RoHS, FCC
• Illuminance Narrow: (5°) 30,537 lux @ 2m
• Illuminance Wide: (27°) 3,390 lux @ 2m
• Cable Length: 5 ft (1.5 m)
• Optional Controllers: IRC-6, ILS Command
