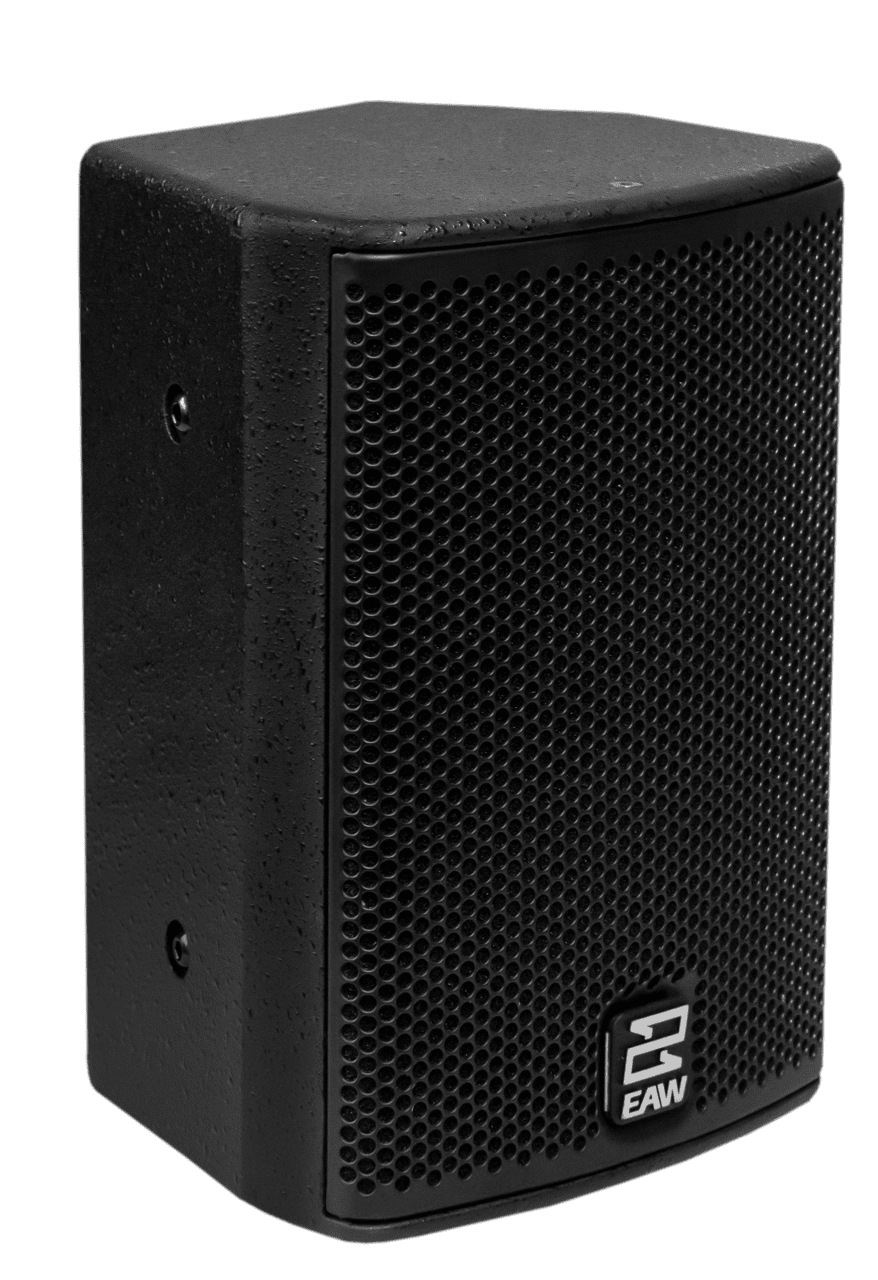

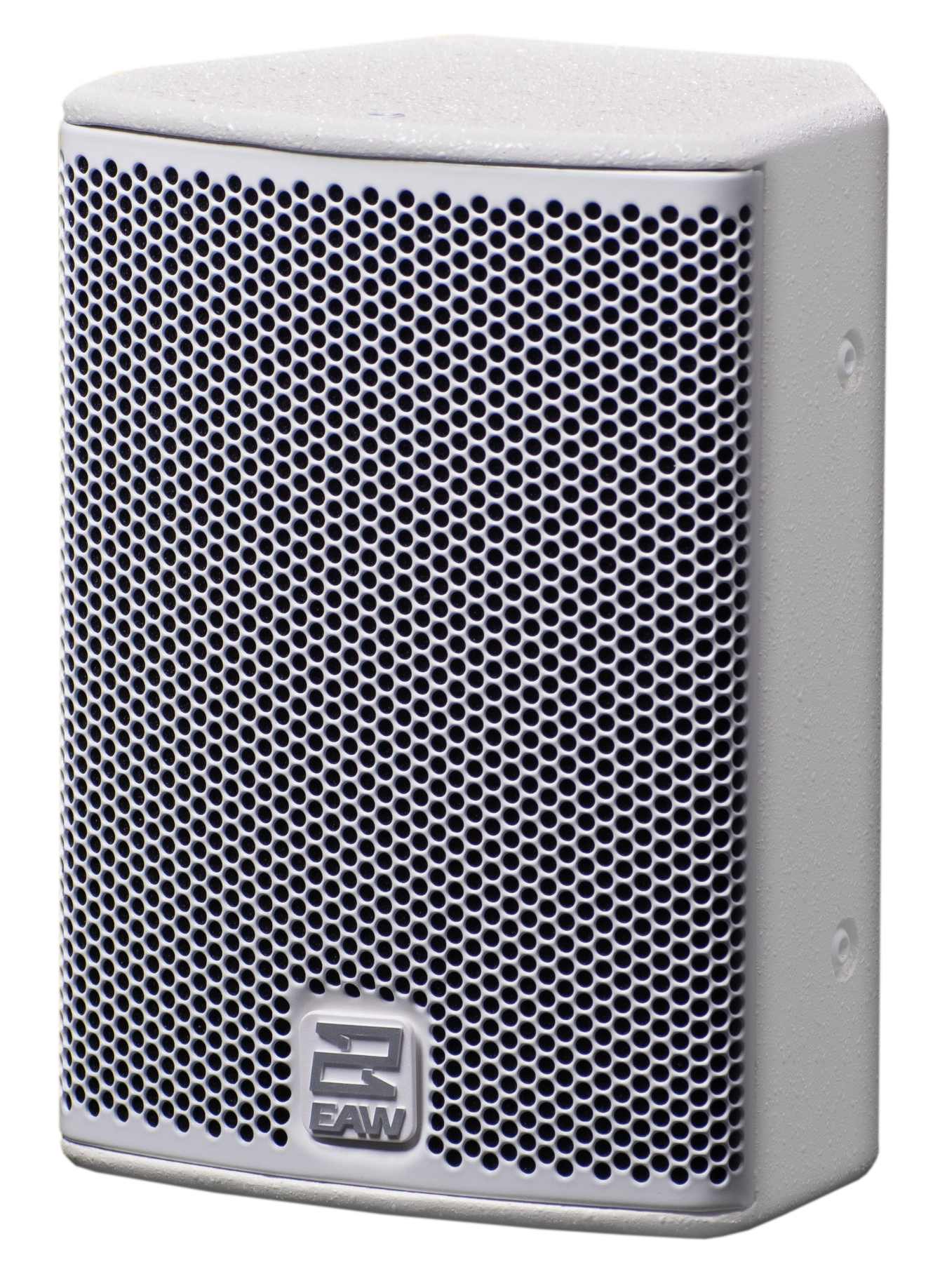

EAW MKC50

Approaching installs from a new angle

With a spectrum of driver sizes, each MKC product fills a unique need for a number of use cases. Each cabinet was designed with this in mind, incorporating angles into the form factor that allows for low profile placement of the loudspeakers to a ceiling, wall, or structure.

Key Selling Points

• Highly Versatile, compact coaxial loudspeaker
• 1 in Dome tweeter provides superior dispersion, fidelity and output

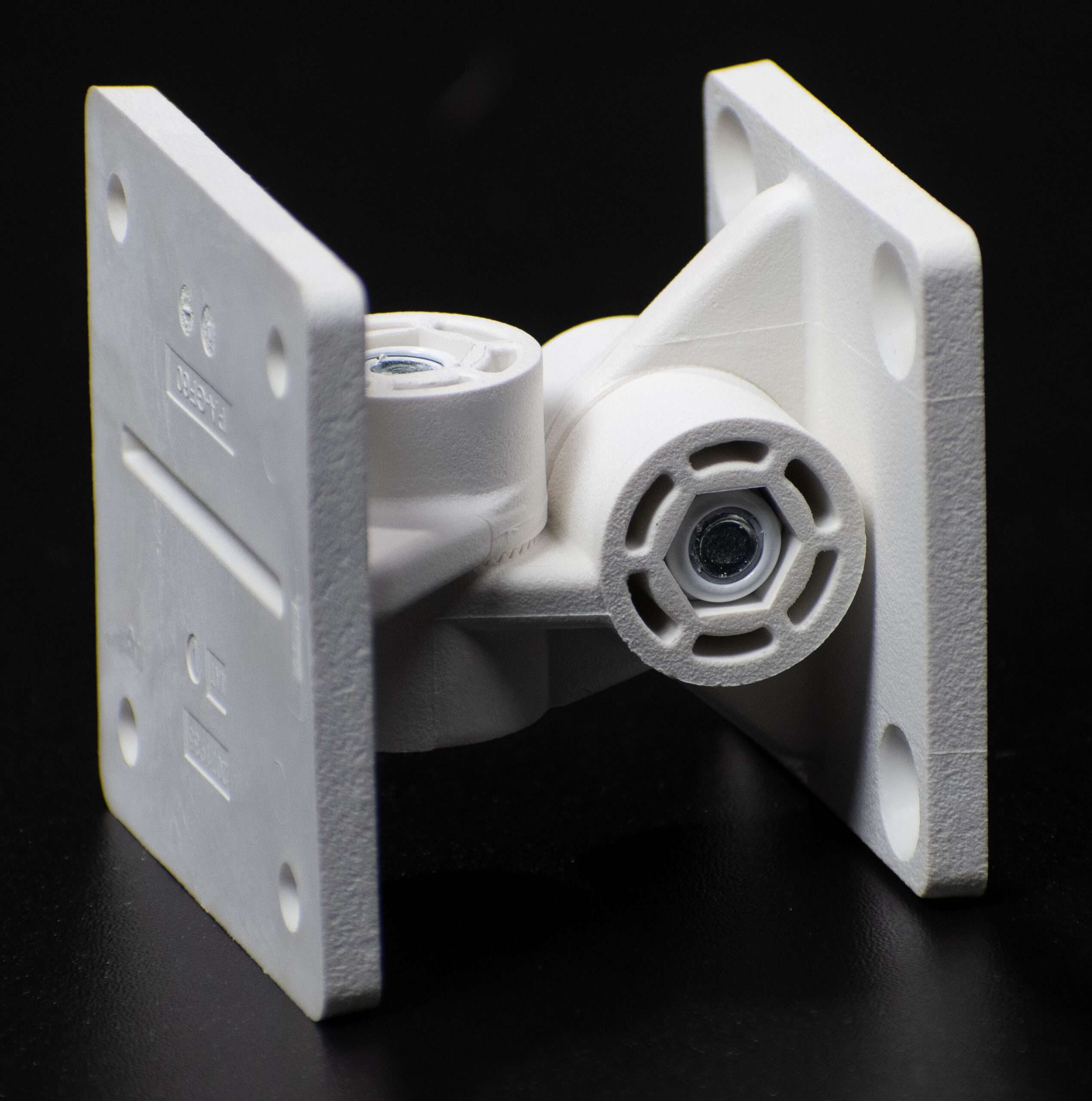

• Flexible accessory solutions for wall, ceiling or pole mount applications
• Weather protection and transformer options
• Companion UXA4401 amplifiers

Specifications

• Frequency Response: 80Hz – 20kHz

• Max SPL: 121dB

• Operating Mode: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)

• Subsystem: LF Transducer: 1×5.25in cone, 1.25in VC, Vented | HF Transducer: 1x1in dome tweeter, coaxial

• Nominal Beamwidth: 110 degrees conical

• Power Handling: 150W @ 8ohms

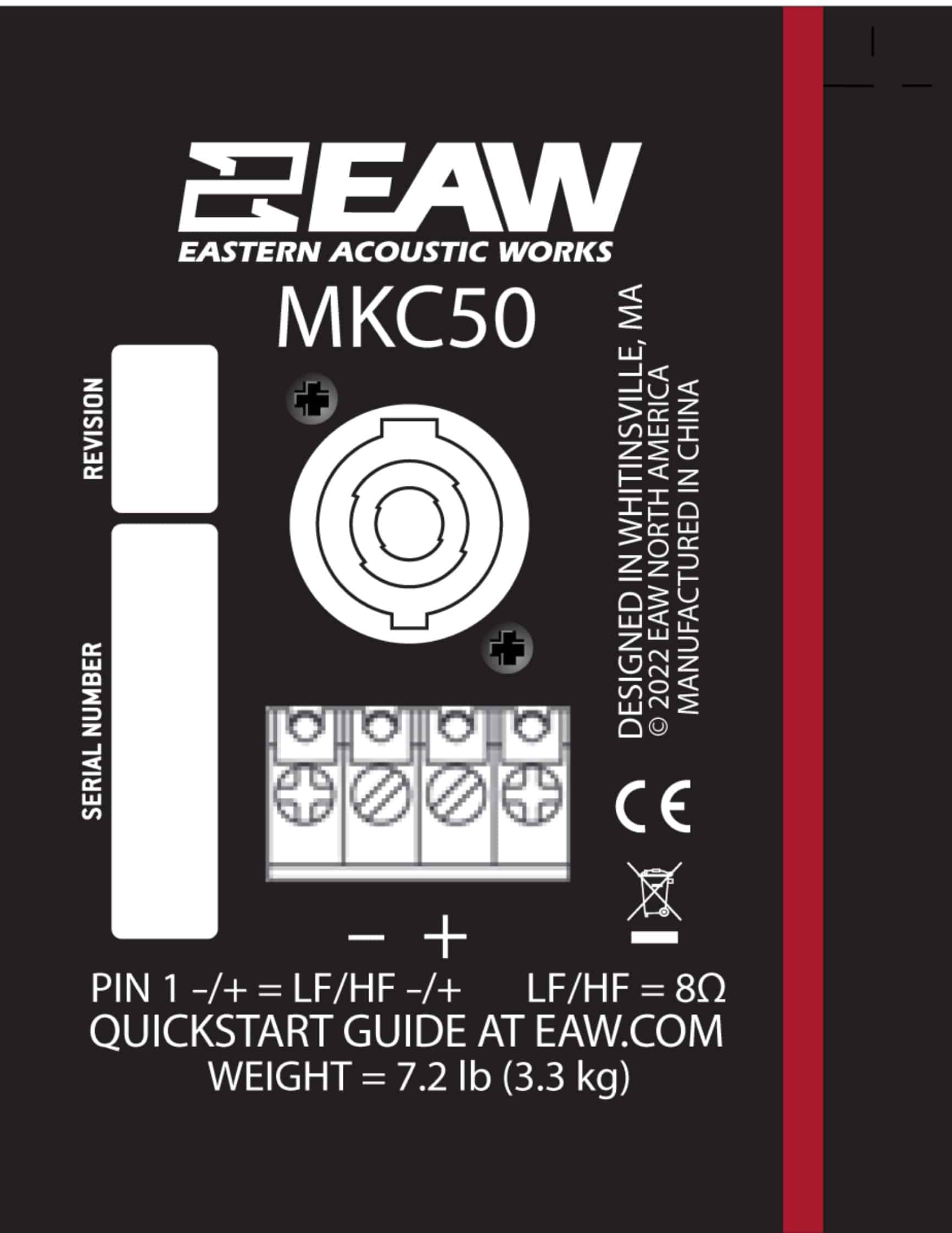

• Connections: 1x Neutrik NL4, 2-pin barrier strip

• Dimensions: 9.3 in x 6.5 in x 5.6 in (235 mm x 165 mm x 141 mm)

• Weight: 7.7 lbs (3.5kg)
