Elation KL FRESNEL 6 FC
$1,840.00

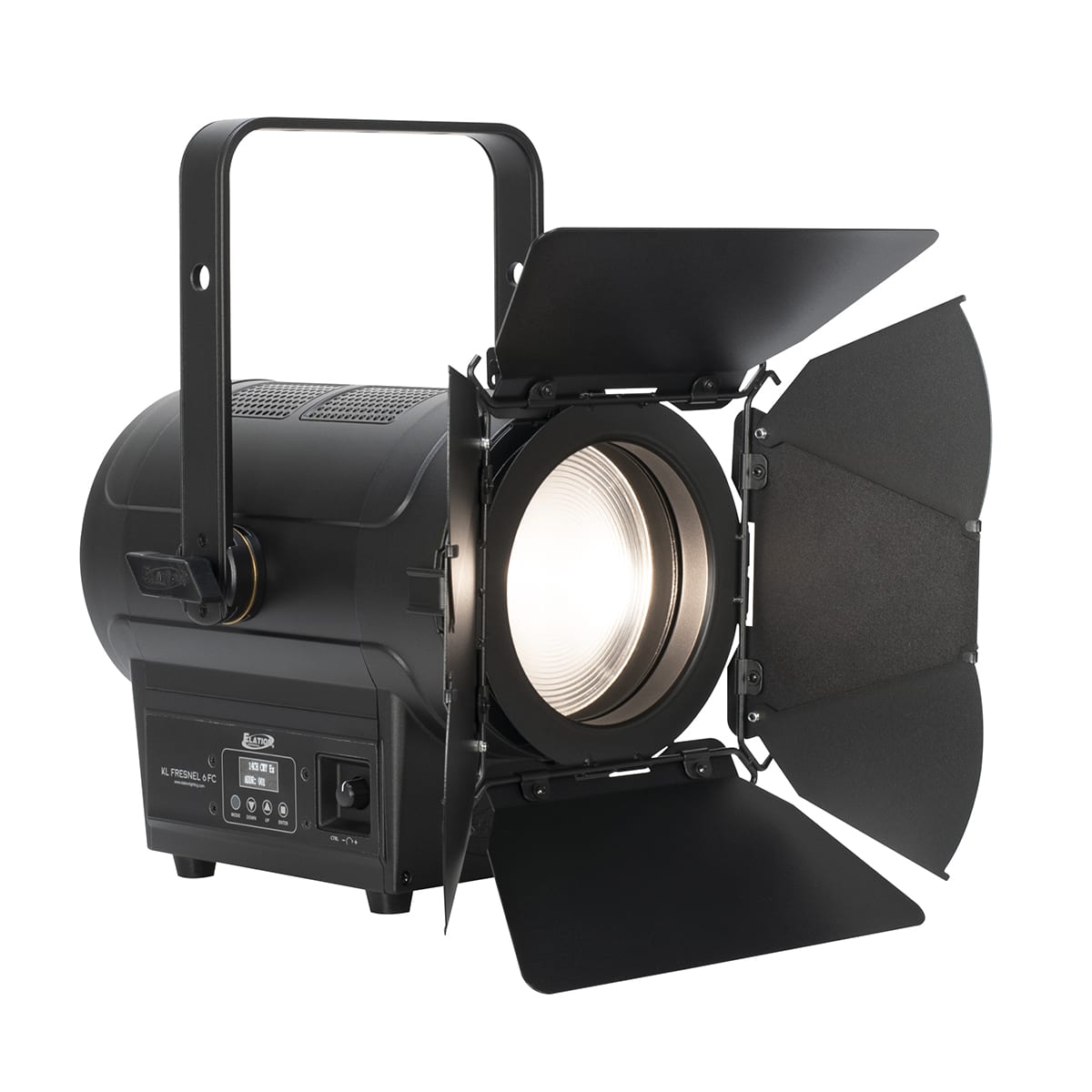

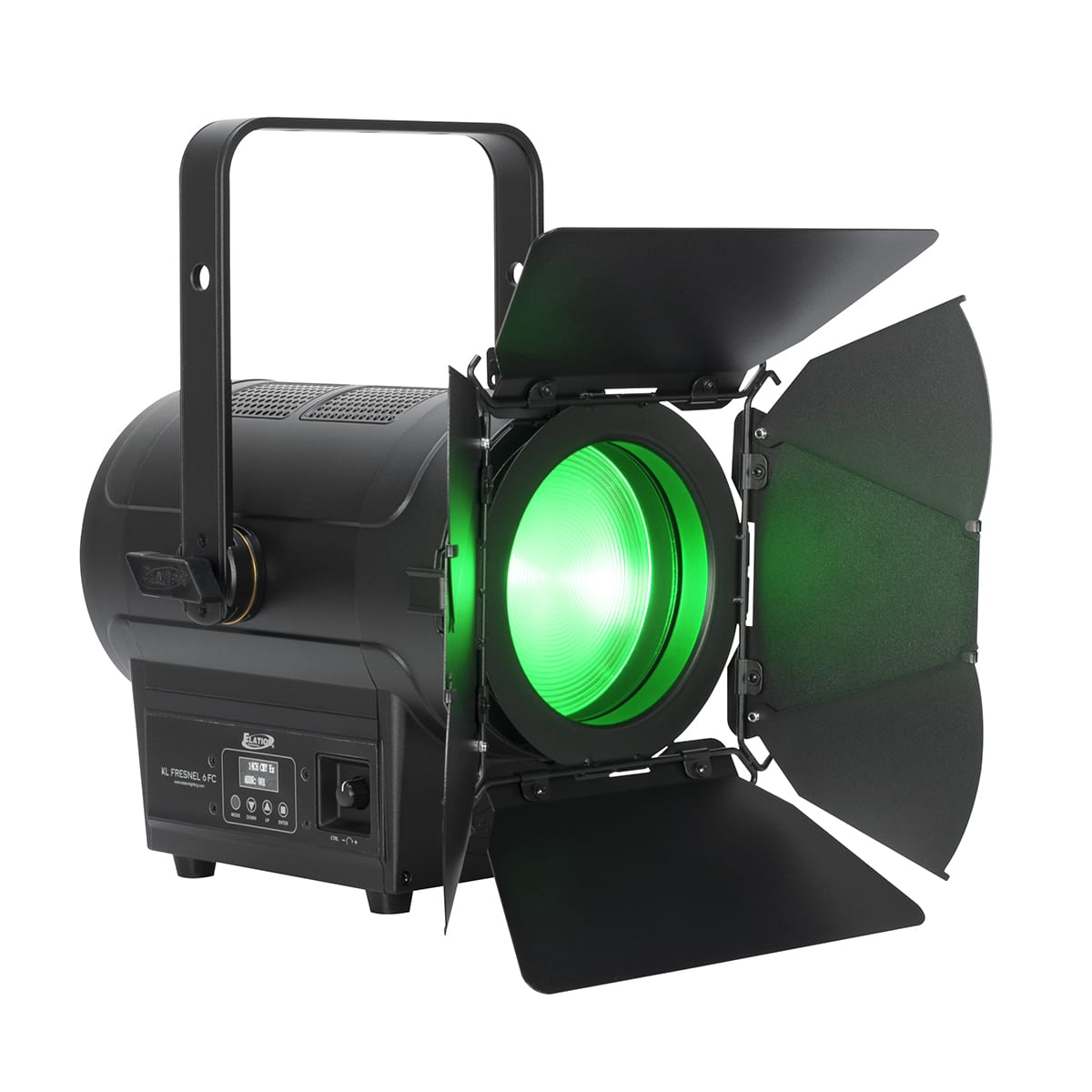

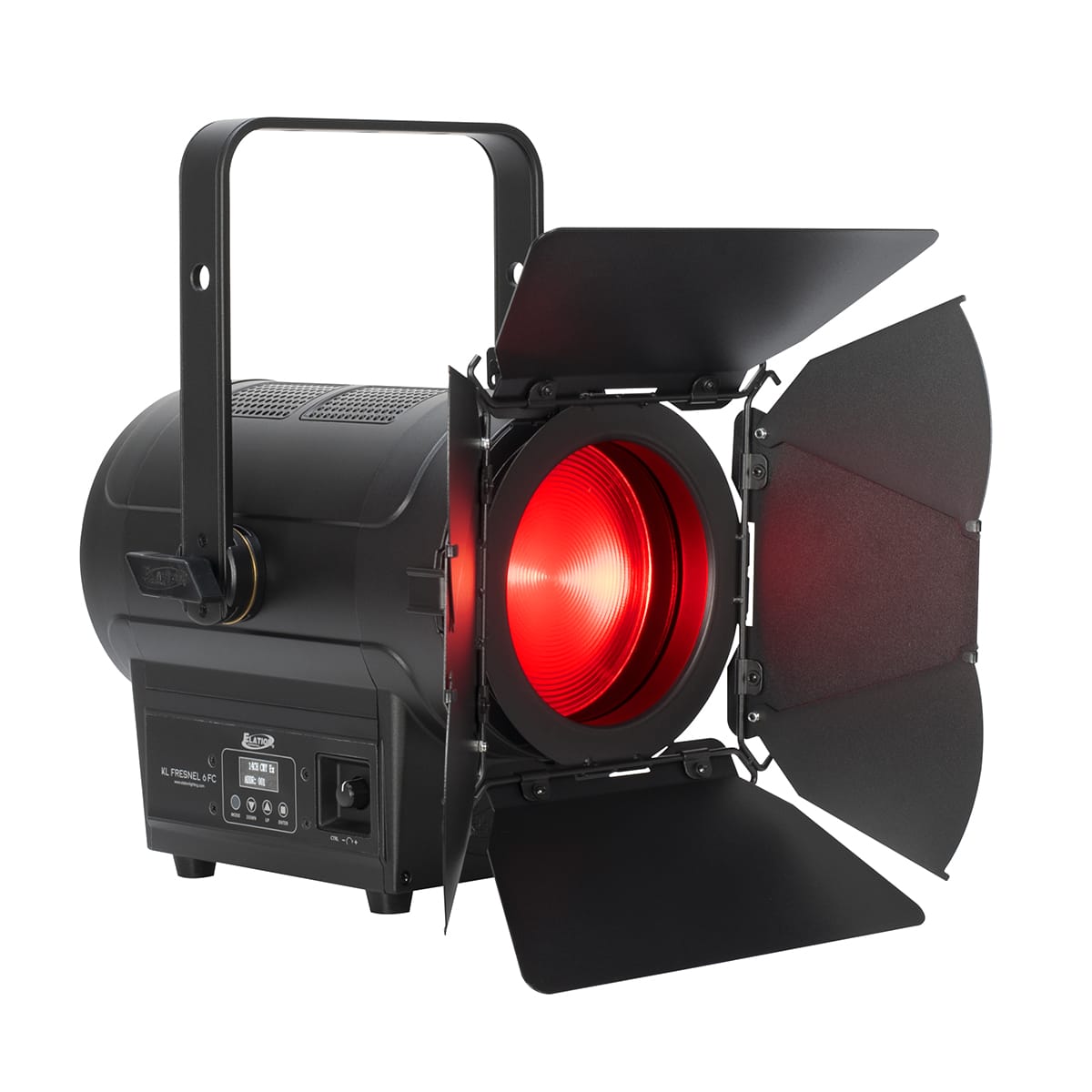

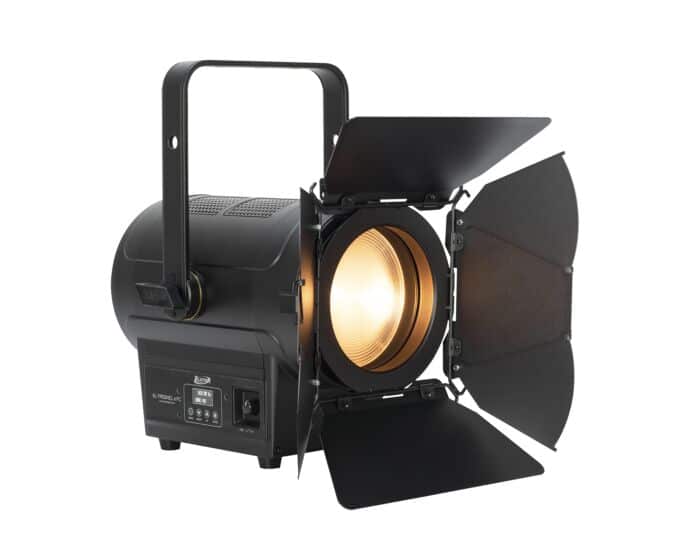

The KL FRESNEL 6 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels. The KL FRESNEL 6 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 8,000 field lumens with a manual Zoom range of 10° to 32°. Outstanding color rendering quality, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today’s fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units. The KL FRESNEL 6 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.
Features
- 220W RGBMA LED Engine
- Dynamic White + Full Spectrum Color Control
- 8,000 Total Fixture Lumen Output
- 10° to 32° Wide Manual Zoom
- Stand-Alone control with Encoder and LED Display
- Smooth 16-bit Selectable Dimming Modes and Curves
- LED Refresh Rate Adjustment
- Flicker Free Operation for TV and FILM
- RDM (Remote Device Management)
- 8-leaf Barn Doors, Gel Frame and Junior Pin (1 1/8” – 28mm) included
Specifications
Source
- 220W 6500K RGBMA LED Engine
- 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data
- 8,000 Total Lumen Output
- CRI 92.2
- Zoom Range 10° – 32°
- Beam Angle 9.7° – 32.2°
- Field Angle 18.7° – 49.3°
Effects
- Motorized Zoom
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
Color
- RGBMA Color Array
- CMY Emulation
- Variable CCT 2400K – 8500K
- Green/Magenta Shift
- Virtual Gel Swatch Book
Control/Connections
- 6 DMX Channel Modes (1 to 18 channels)
- Manual and DMX Controlled Dimmer, Color and Zoom
- Direct Access Encoder
- 4 Button Control Panel, LED Display
- RDM (Remote Device Management)
- 3/5pin DMX and IP65 Locking Power In/Out Connection
Size/Weight
- Length: 13.5” (344mm)
- Width: 11” (280.6mm)
- Vertical Height: 23” (584mm)
- Weight: 18.5 lbs. (8.4kg)
Electrical/Thermal
- AC 100-240V – 50/60Hz
- 219W Max Power Consumption
- 5°F to 113°F (-15°C to 45°C)
Included Items
- Gel Frame and Rotating 8-leaf Barn Doors
- Junior Pin (1 1/8″ – 28mm)
- IP65 Locking Power Cable
