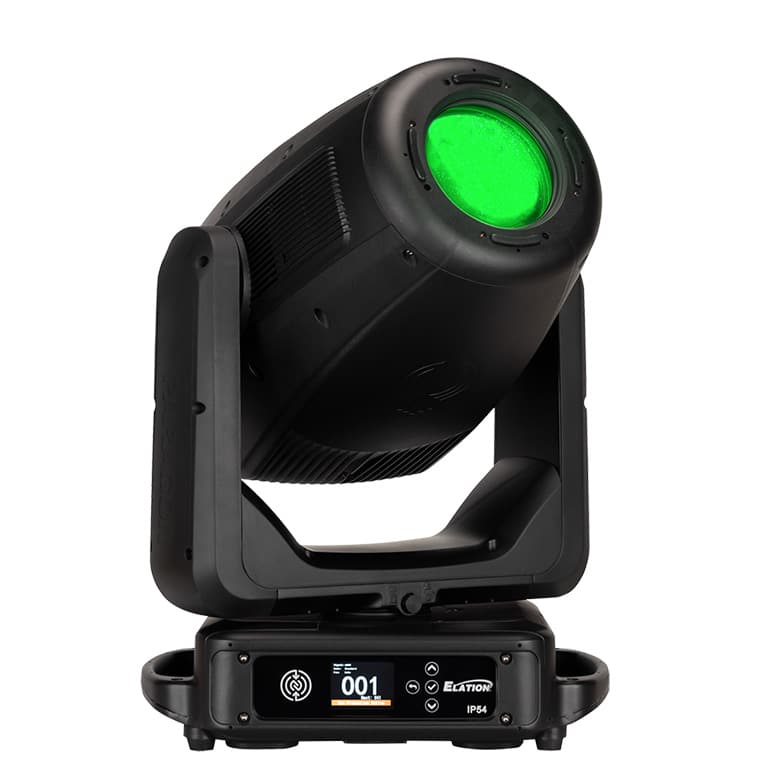

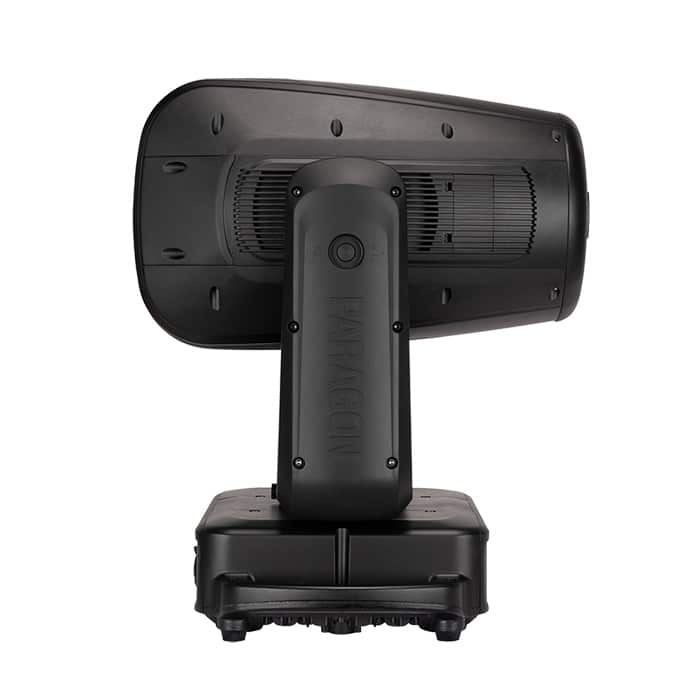

Elation PARAGON S | 550W Variable CRI LED IP Framing Profile Fixture with CMY

• IP54 rated for indoor and temporary outdoor use
• All weather protection through innovative chassis, sealing and cooling construction
• Impact resistant lightweight polycarbonate chassis
• High Efficiency 6,500K Variable CRI White LED Engine
• TruTone remote color fidelity adjustment up to CRI 93
• Up to 20500 Total Lumen Fixture Output at CRI 80
• Flat Field Engine for precise projection
• Ultra-fast CMY Array and Variable Linear CTO
• 7-Position Color Wheel with UV Filter
• Complete FX System featuring Rotating and Fixed Gobo Wheels, Animation, Iris, Dual Prism, Dual Frost
• Interchangeable Animation Disc
• Indexable 240° Full Blackout Framing System
• Wide Zoom Range from 5° to 50°
• Interchangeable Fresnel Wash and PC Beam Lens (optional)
• FIL (Foam In Lay) Polyurethane Foam Packaging Included

Specifications

SOURCE

• High Efficiency 550W 6,500K Variable CRI White LED Engine
• 30,000 Hour Average LED Life*

PHOTOMETRIC DATA

• 20500 Total Lumen Fixture Output @ CRI 80
• TruTone variable CRI up to CRI 93

Profile Lens (standard)

• Zoom Range 5° – 50°
• Beam Angle 4.9° – 44.7°
• Field Angle 5.2° – 47.8°
• Cutoff Angle 5.3° – 48.6°

PC Lens (optional)

• Zoom Range 6° – 45°
• Beam Angle 4.2° – 40.6°
• Field Angle 6.1° – 44.7°
• Cutoff Angle 6.9° – 47.2°

Fresnel Lens (optional)

• Zoom Range 8° – 50°
• Beam Angle 4.8° – 39°
• Field Angle 8.2° – 50.2°
• Cutoff Angle 11.4° – 59.4°

EFFECTS

• Motorized Zoom
• 4 Full Blackout Framing Blades, +/-40° Index
• +/-120° Framing Module Index
• Full 360° Bi-Directional Animation Wheel
• 4-Facet Round and Linear Rotating Prisms
• 2 Variable Frost Filters (Light and Wash)
• Motorized Iris with Variable Pulse Effects
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe
• DMX Controllable LED Refresh Rate
• Pan Angle: 540°
• Tilt Angle: 260°

COLOR

• CMY Color Mixing
• Linear CTO Color Correction
• 7 Dichroic Colors including UV Filter
• TruTone CRI 72-93

GOBOS

• 7 Rotating / Indexing Interchangeable Glass Gobos
• 9 Fixed Metal Gobos
• Optional 7 fixed gobo disc (replaces Animation Wheel)

CONTROL / CONNECTIONS

• 2 DMX Channel Modes (41/64)
• 16-bit Pan, Tilt and Dimming Control
• 5 Fan modes for ultra quiet operation
• DMX, RDM, Art-NET, sACN Protocol Support
• (4) Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• NFC on bottom and front of fixture base
• Hibernation Mode (Power Save)
• IP65 Locking 5pin XLR In/Out
• IP65 Locking RJ45 Ethernet In/Out
• IP65 Locking Power In

SIZE / WEIGHT

• Length: 15.3 in (390mm)
• Width: 10.2 in (260mm)
• Height: 23.4 in (595 mm)
• Weight: 45.2 lbs. (20.5 kg)

ELECTRICAL

• AC 100-240V 50/60Hz
• Max Power Consumption 800W
• -4°F to 113°F (-20°C to 45°C)

NCLUDED ITEMS

• Omega Brackets (x2)
• IP65 Rated Locking Power Cable
• Stainless Steel Safety Wire
• Foam Inlay

APPROVALS / RATINGS

CE | cETLus | FCC | UKCA | IP54
