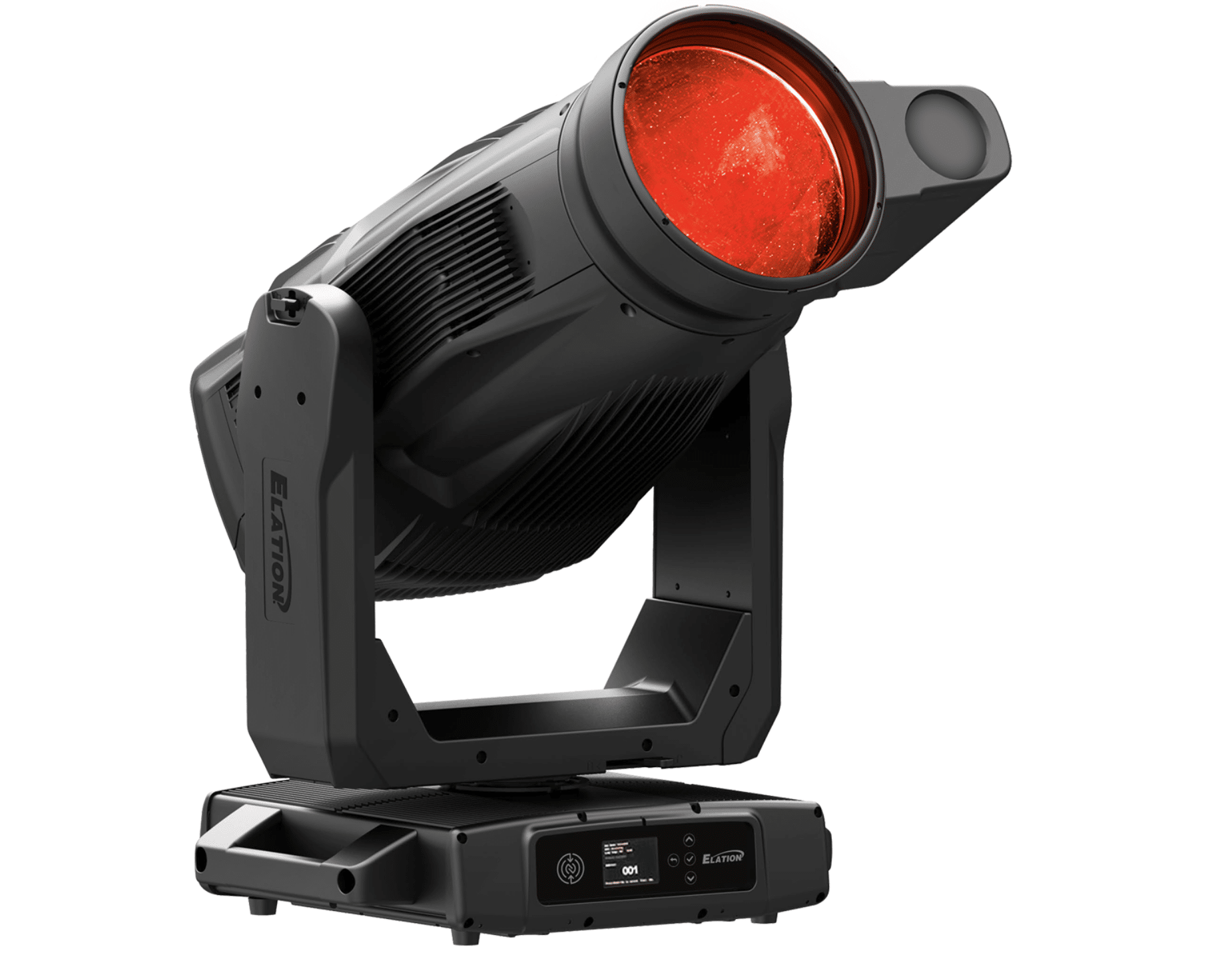

Elation PROTEUS BRUTUS FS
$15,525.00
The PROTEUS BRUTUS FS is an extremely bright IP66 rated LED Follow Spot fixture offering high intensity and excellent color quality at long distances. Operated manually with removable handles or remotely through one of the many automated remote tracking systems in the market, this purpose build fixture is ideal for any indoor and outdoor application that requires precise and smooth operation, flexible color control and superior output in medium to long throw follow spot applications.
Features
16000 lx (1470fc) center intensity @ 20m
CMY Color Mixing and Variable CTO
Variable CRI Filter
Precise Zoom, Iris and Frost control
Long Throw Zoom Range from 3° to 35°
Indexable Gobo Images for beam shaping or texture projection
Manual Follow Spot Handle attachment points
Removable IP66 Camera Chassis
NDI, POE, SDI and Camera Control pre-wired
Optional Tripod Stand
Specifications
SOURCE
1200W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
16000lx (1470fc) @ 20m
CRI 70+ (90 with adjustable HCRI Filter)
Zoom Range 3.5° – 35°
Beam Angle 2.9° – 35°
Field Angle 3.8° – 41°
EFFECTS
Motorized Zoom
Long Throw / Ultra Long Throw Beam Mode
Motorized Focus
Motorized Iris
Variable Frost Filter
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Variable Pan and Tilt Motor Acceleration Control
Pan Angle: 540°
Tilt Angle: 260°
COLOR
CMY Color Mixing
Linear CTO Color Correction
Linear CRI Adjustment CRI 70 – CRI 90
GOBO / BEAM SHAPES
5 Rotating / Indexing Interchangeable Metal
