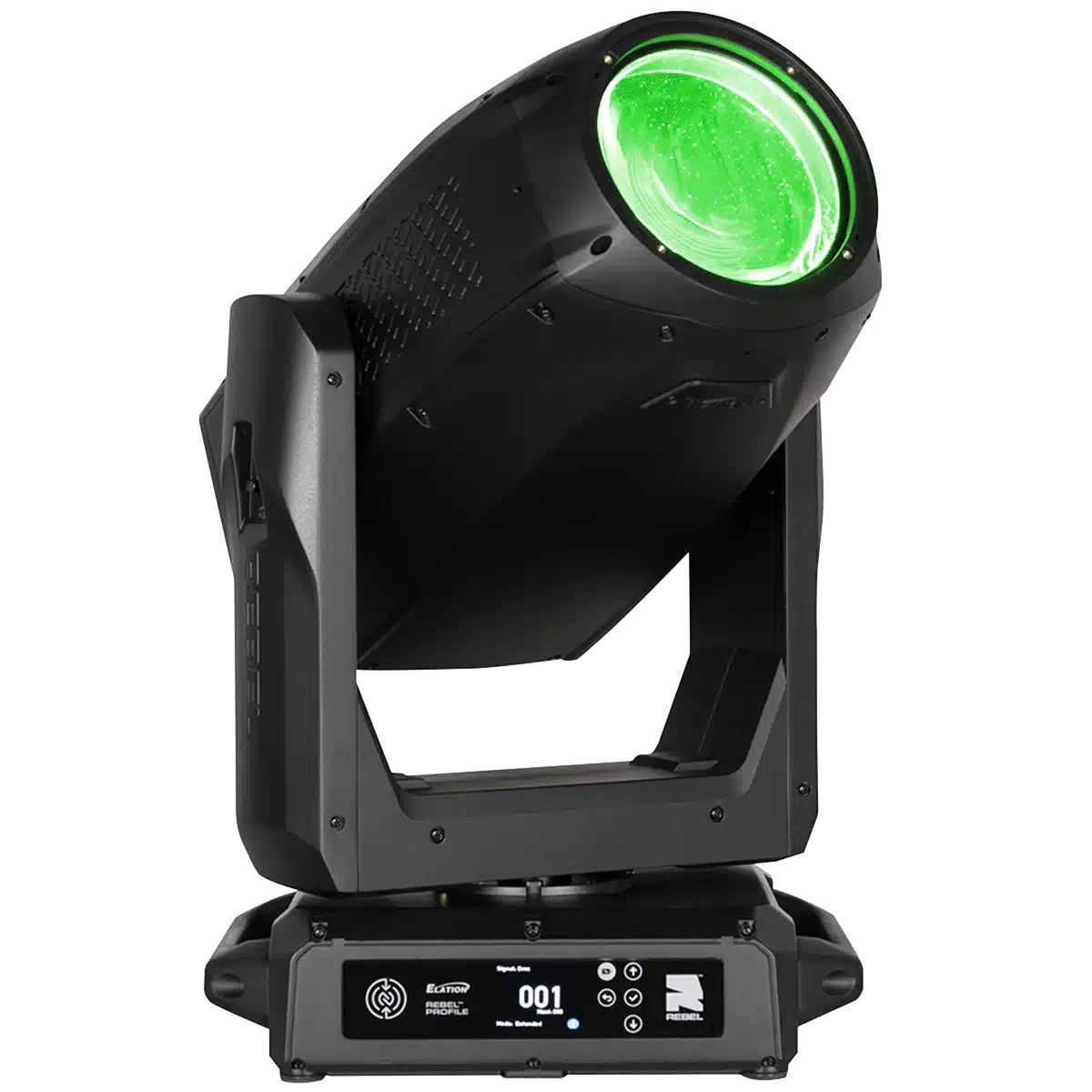

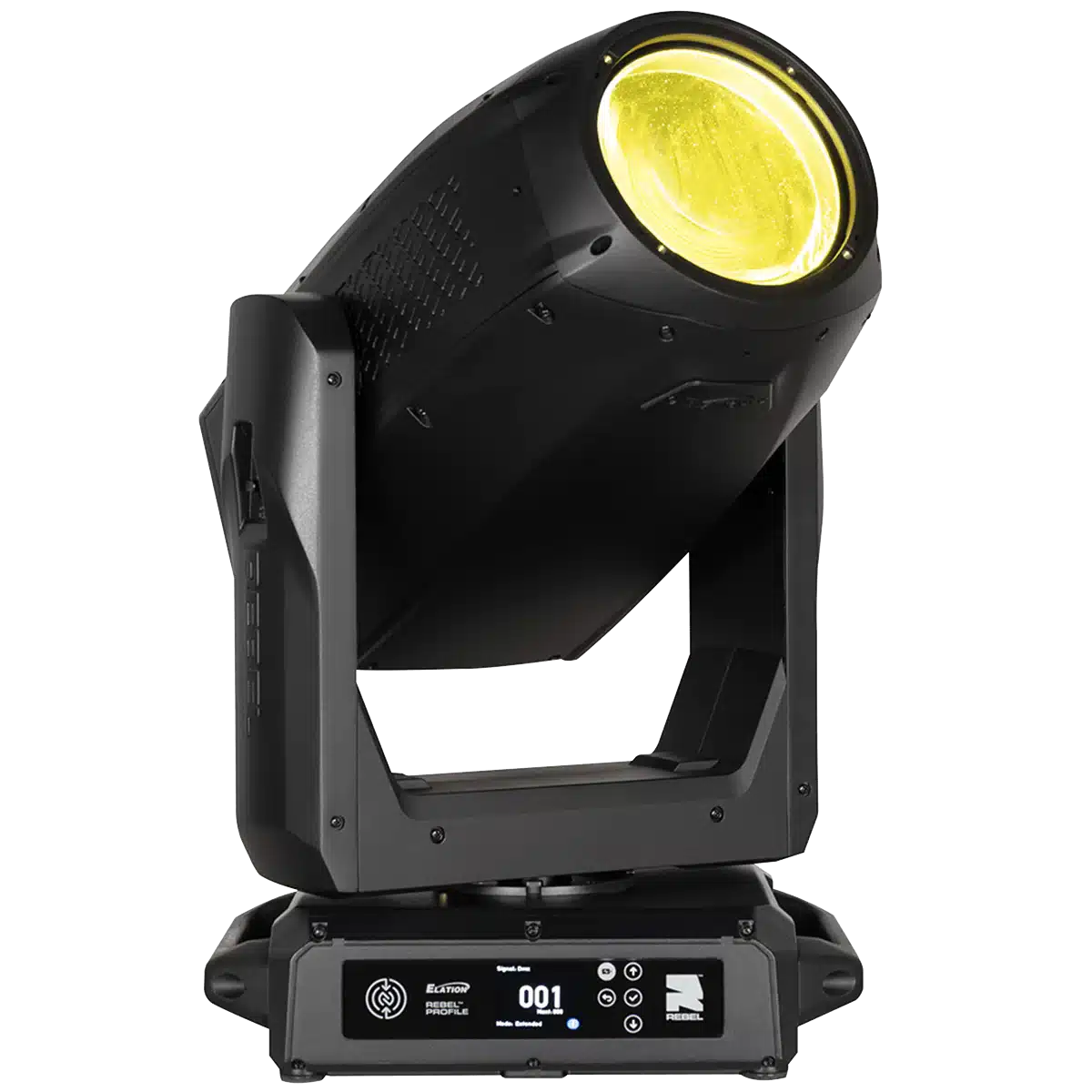

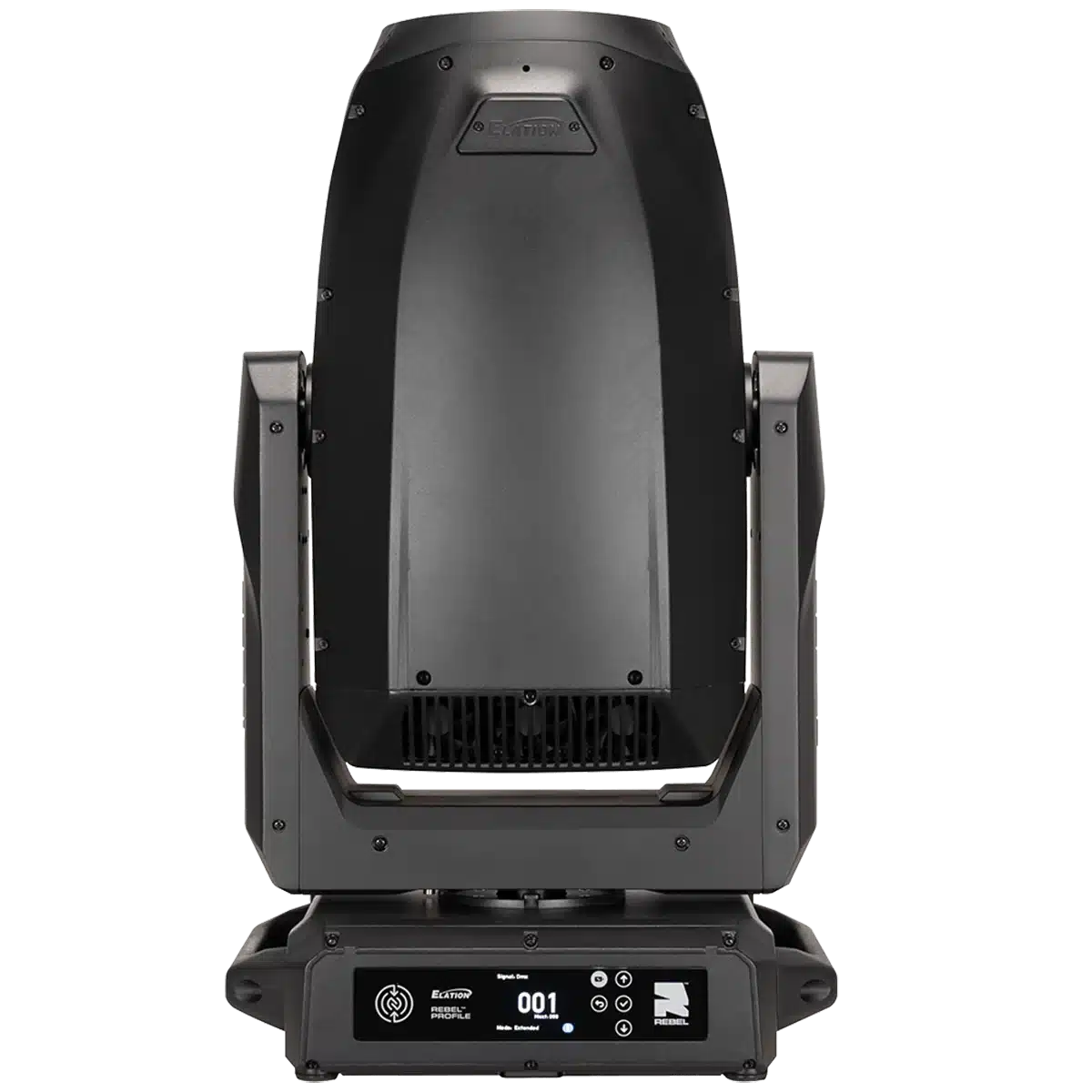

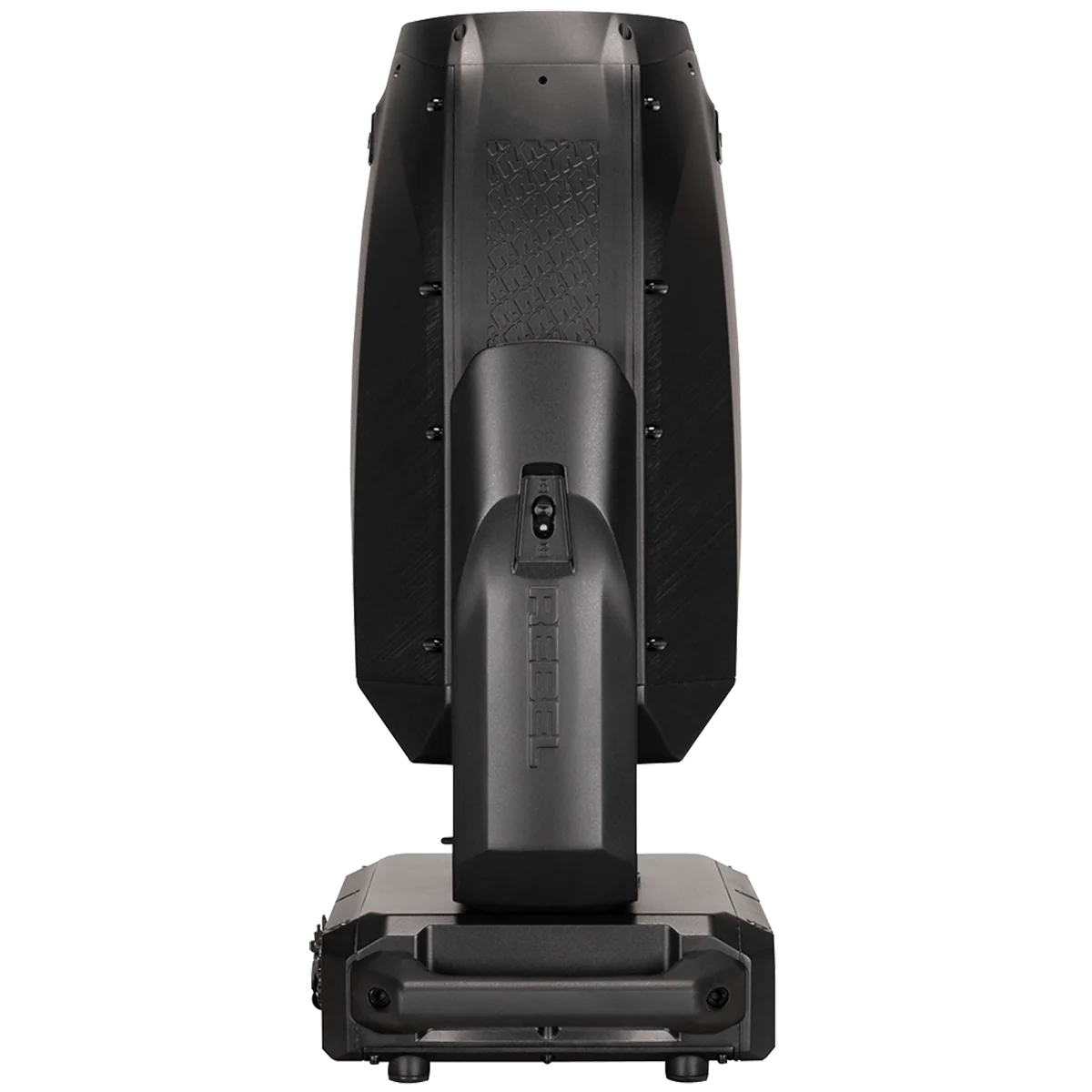

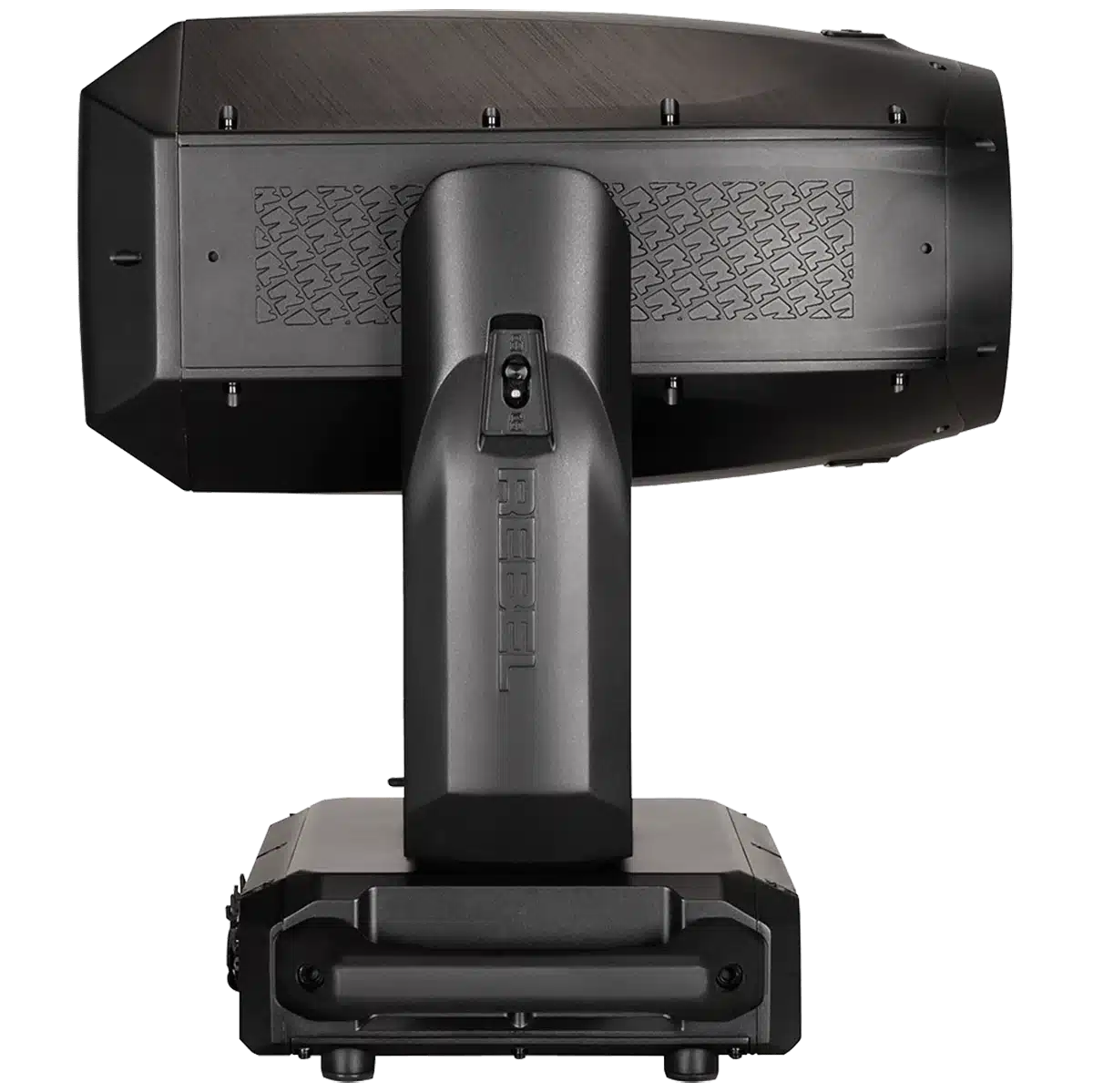

Elation REBEL PROFILE

The REBEL Profile™ combines power and versatility in a compact IP65-rated design, perfect for indoor and outdoor applications. Its Peak Field 600W 6,500K LED engine produces a dazzling 22,000 lumens, delivering high-intensity beams, sharp projections, and dynamic mid-air effects.

A full-featured graphics suite includes 15 glass gobos, a complete animation wheel, dual prisms, dual frost, and a high-speed iris.
The indexable framing system ensures precise control with blackout shutter cuts, while a zoom range of 3.5° to 51° enhances its flexibility.

• IP65 for temporary outdoor applications
• Peak field 600W 6,500K White LED Engine
• Up to 22000 Total Lumens Fixture Output
• CMY Color Mixing and Variable CTO
• 7-Position Color Wheel with dual High CRI Filters
• Comprehensive Visual FX System featuring Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
• Indexable Full Blackout Framing System
• Wide Zoom Range from 3.5° to 51°

SOURCE

• 600W 6,500K Bright White Peak Field LED Engine
• 20,000 Hour Average LED Life*
• *Test lab conditions. May vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 22000 Total Lumen Fixture Output
• CRI 70+ (80 or 90 with HCRI Filter)
• 2:1 Hotspot Ratio
• Zoom Range 3.5° – 51°
• Beam Angle
• Field Angle

EFFECTS

• Motorized Zoom
• 4 Rotating Full Blackout Framing Blades
• +/-60° Framing Module Index
• Full 360° Bi-Directional Animation Wheel
• 4-Facet Round and 6 Facet Linear Rotating Prisms
• 2 Variable Frost Filters (Light and Wash)
• Motorized Iris with Variable Pulse Effects
• Variable 16-bit Dimming Curves
• High Speed Electronic Shutter and Strobe
• DMX Controllable LED Refresh Rate
• Pan Angle: 540°
• Tilt Angle: 270°
• Continuous 360° Pan Rotation

COLOR

• CMY Color Mixing
• Linear CTO Color Correction (2400K)
• 7 Dichroic Colors, including CRI 80 and CRI90 filters

GOBOS

• 2 Gobo Wheels
• 7 Rotating Glass Gobos
• 8 Static Glass Gobos

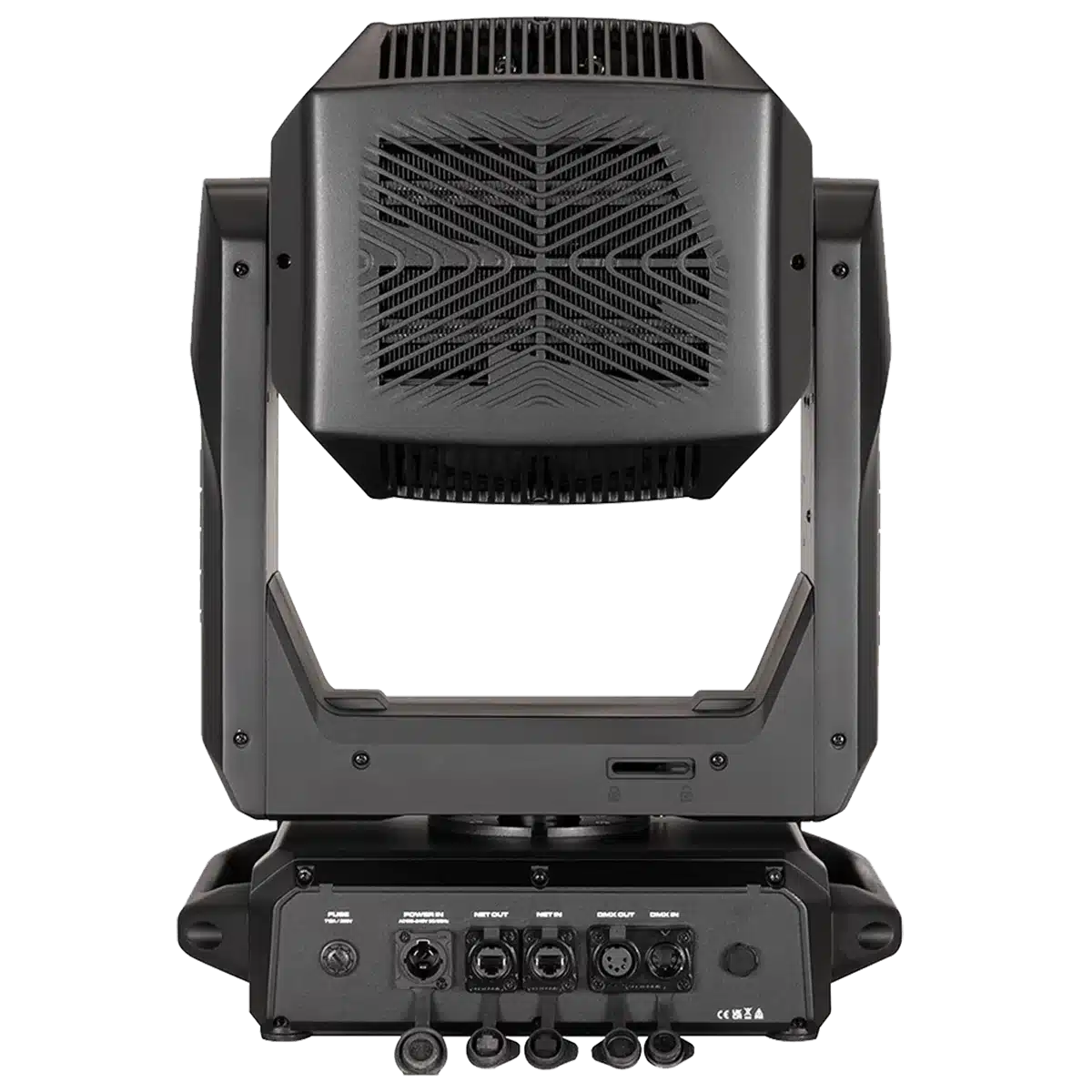

CONTROL / CONNECTIONS

• 2 DMX Channel Modes
• (5) Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• Hibernation Mode (Power Save)
• IP65 Locking 5pin XLR Connector In/Out
• IP65 Locking RJ45 Ethernet Connector In/Out
• IP65 Locking Power Connector In

SIZE / WEIGHT

• Length: 15.65 in (398mm)
• Width: 11.06 in (281mm)
• Height: 26.2 in (666mm)
• Center-to-Center Spacing: 23.2in (589mm)
• Weight: 66 lbs. (29.9 kg)

ELECTRICAL

• AC 100-240V 50/60Hz
• Max Power Consumption: 950W
• -4° to 113°F (-20°C to 45°C)
• 3509 BTU/hr (+/- 10%)

INCLUDED ITEMS

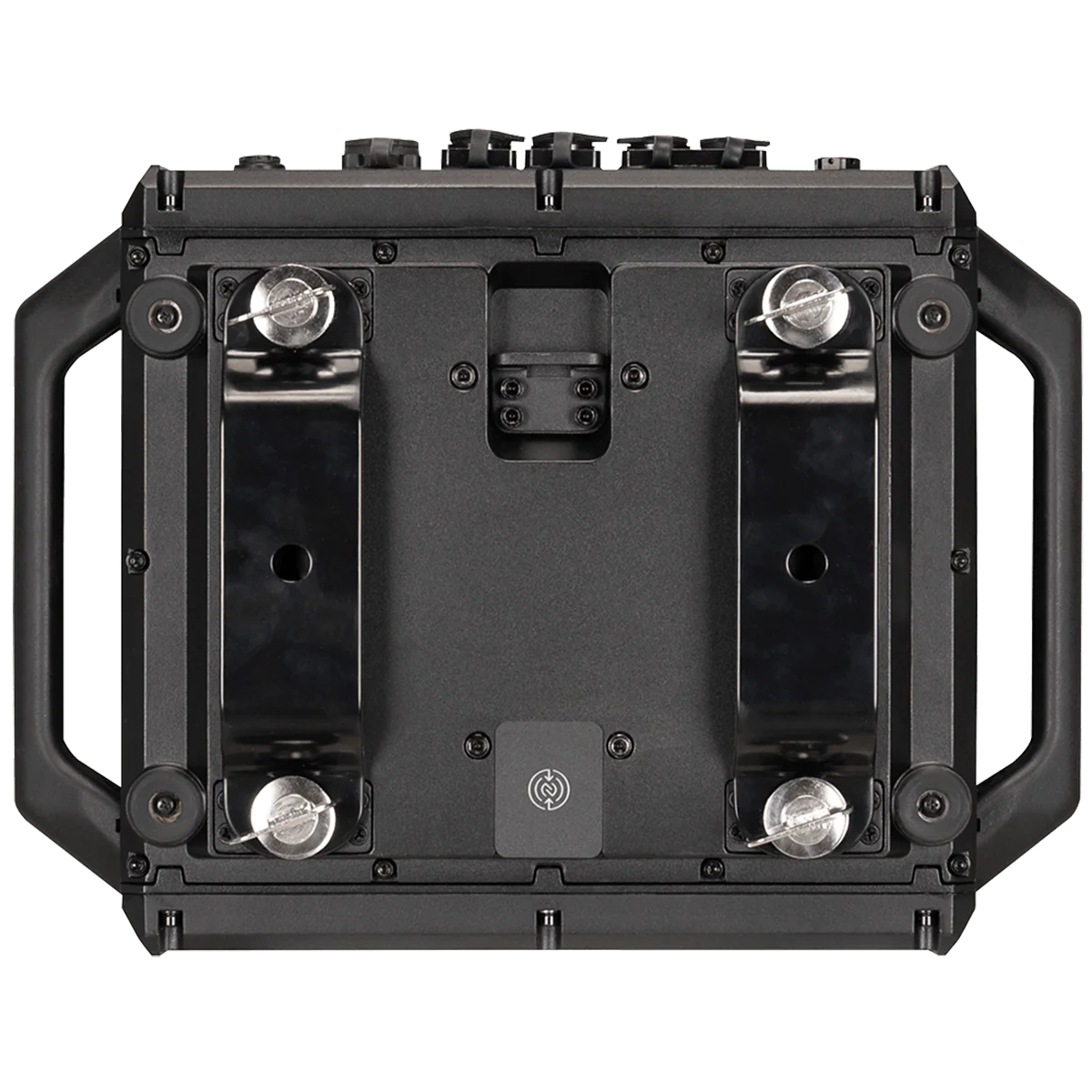

• Omega Brackets (x2)
• Safety Cable
• IP65 Rated Locking Power Cable

APPROVALS / RATINGS

• CE | cETLus | FCC | UKCA | IP65
