Obsidian NX1-16

$4,490.00

The NX1-16 is the essential lighting controller in the innovative and powerful ONYX platform. Fully featured and unrestricted, it offers the complete ONYX experience without compromises in an ultra- compact package.

My Price?

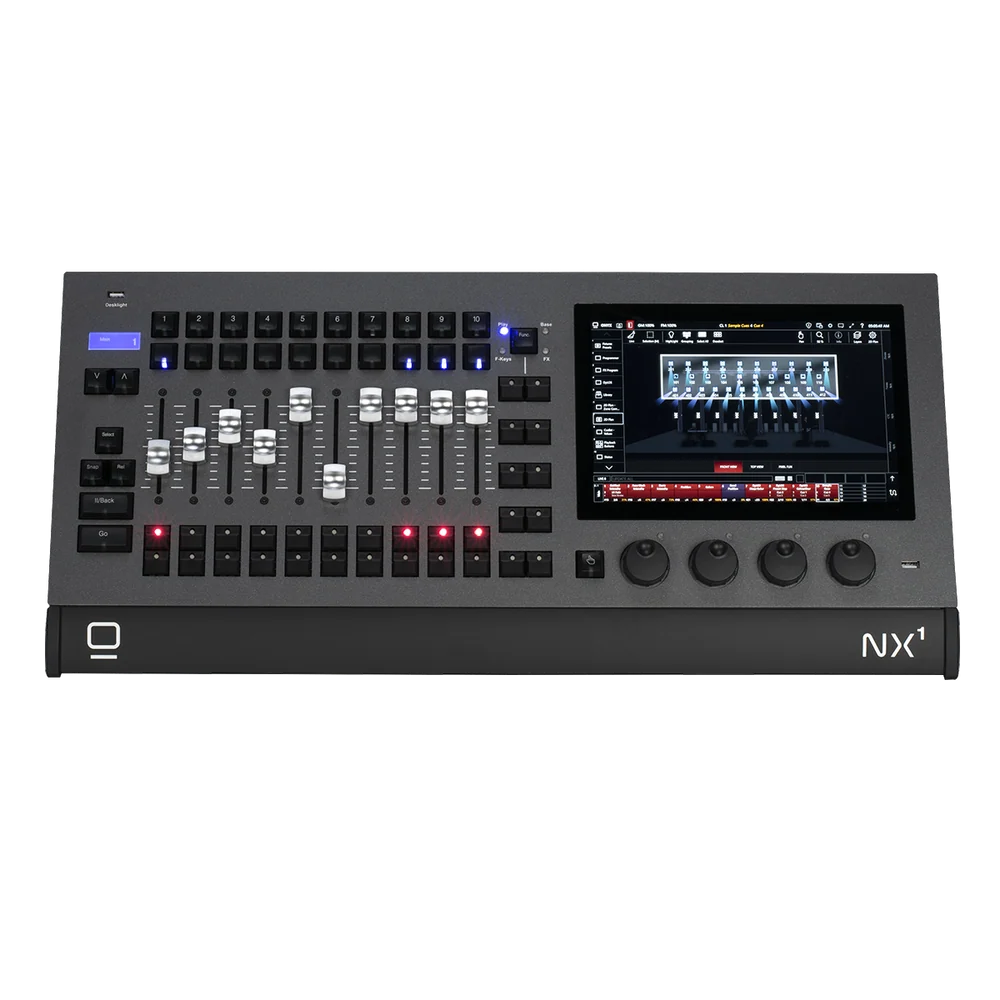

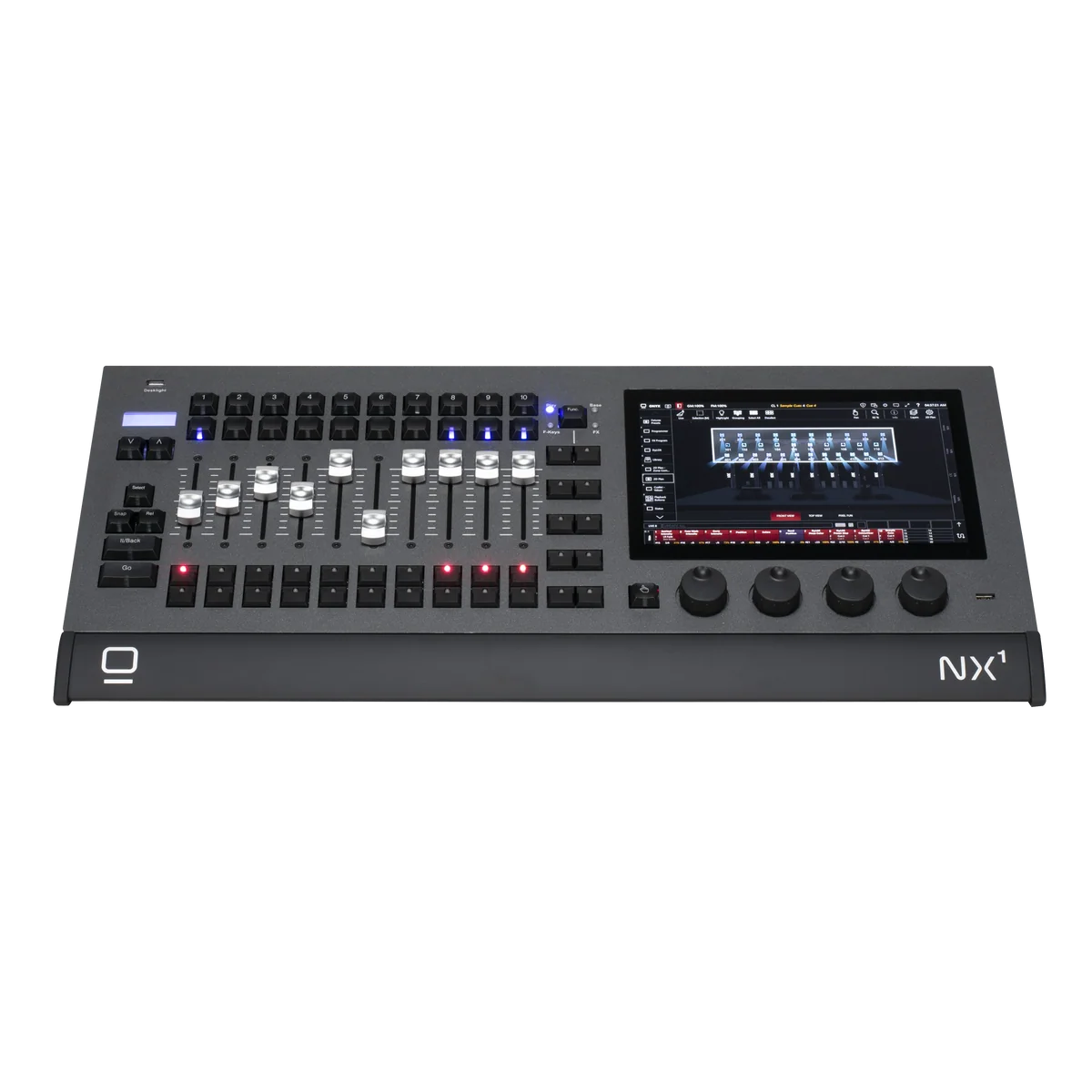

Utilizing the full ONYX Operating System, the NX1-16 includes a high-brightness 10.1″ HD multi-touch screen; 4 assignable parameter encoders; 10 full motorized playbacks with four freely assignable buttons plus an extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design. Including the latest in industrial components, the NX1-16 contains a powerful Intel processor, a high-speed NVMe SSD drive, and 16GB of DDR5 RAM, allowing fast boot times, instant operation, and the ability to process 16 Universes right inside the console. With four DMX ports, dual Gigabit network ports for up to 16 Universes of Art-Net, sACN, plus the ONYX X-Net protocol, the NX1-16 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at any time.

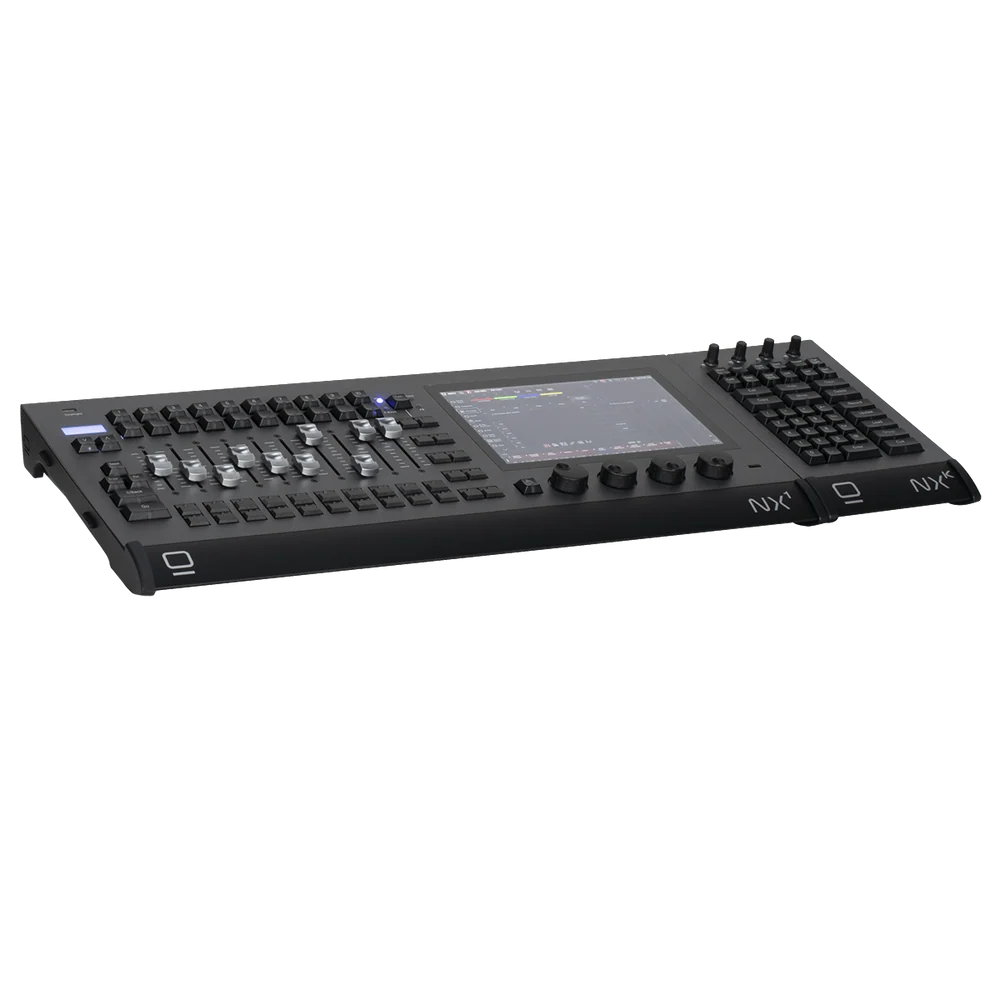

The NX1-16 is further expandable with the dedicated NXK keypad and the NXP motorized playback wing. A simple magnetic alignment system allows attachment on either side of the NX1-16. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.

Key Features

Portable and compact fully featured lighting console
10.1” Full HD multi-touch screen, 1x external touch display
ONYX License (16 Universes)
Fully integrated industrial processing
10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section

Specifications

Surface

10x 60 mm motorized playback faders, each with 4x function-assignable buttons
10x customizable playback or multi-function keys
Playback Select button
Master Go section with Go, Pause, Snap, and Release
4x digital rotary encoders with push function and status LED for fixture parameter control
Virtual Keypad control

Hardware
