ADJ Data Distro 6

$249.99

The ADJ Lighting Data Distro 6 is a 6-way DMX and RDM data splitter. With one (1) 5-pin input, one (1) 5-pin thru and six (6) 5-pin outputs, the Data Distro 6 makes running DMX cables easier and more efficient.

Add to wishlist

SKU: DAT600 Category: Uncategorized

Description

Protocols:

DMX512
RDM

Physical:

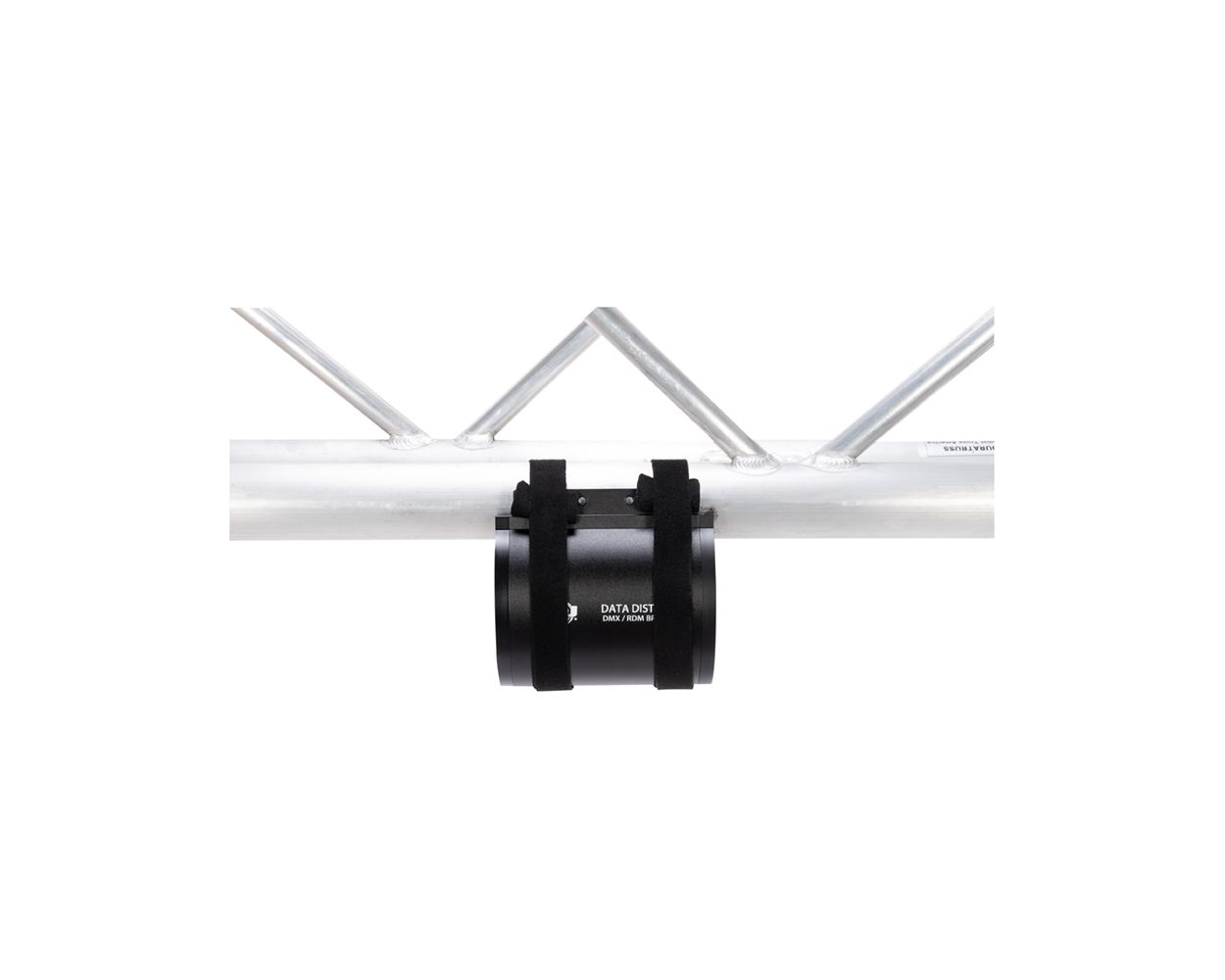

1 Truss Mount with Velcro Straps or M10 Screw Clamp (Clamp Not Included)
1x Indoor 5pin XLR Input
1x Indoor 5pin XLR Thru

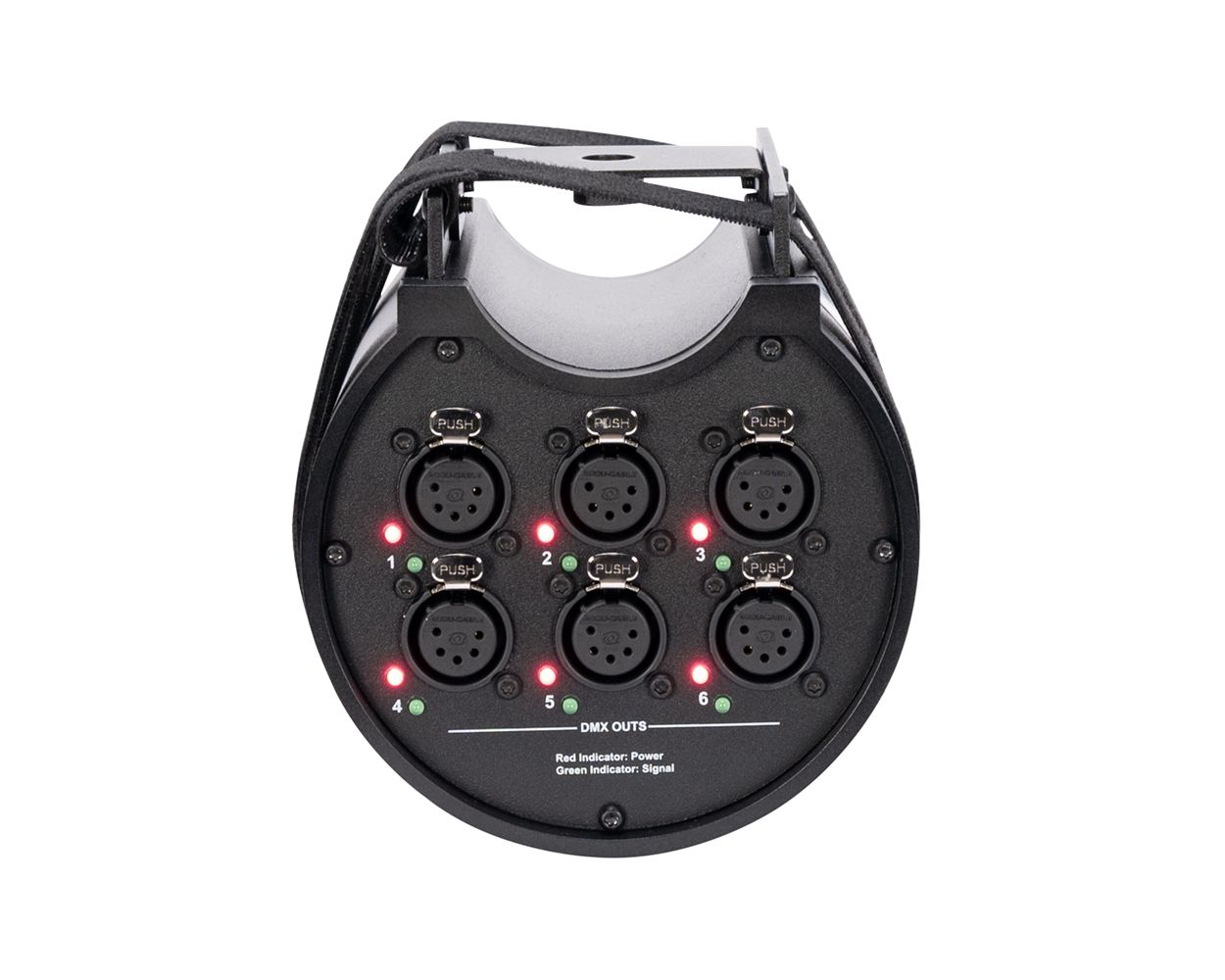

6x Indoor 5pin XLR Outputs
Link Out / Termination Switch
DMX / RDM Protocol Switch
Indoor locking power socket

Dimensions & Weight:

Length: 4.73″ (120mm)
Width: 5.43″ (137.75mm)
Height: 5.10″ (129.55mm)
Weight: 1.83lbs. (0.83kg)

Power:

AC Input: 100-240V 50/60Hz
Power Consumption: 2.7W @ 120V and 2.9W @ 230V
Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)

Thermal:

Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)
Humidity: <75%
Storage Temperature: 77°F (25°C)

Certifications & IP Rating:

CE
cETLus (Control # 5014475)
UKCA
FCC
IP20

Specifications subject to change without notice.
