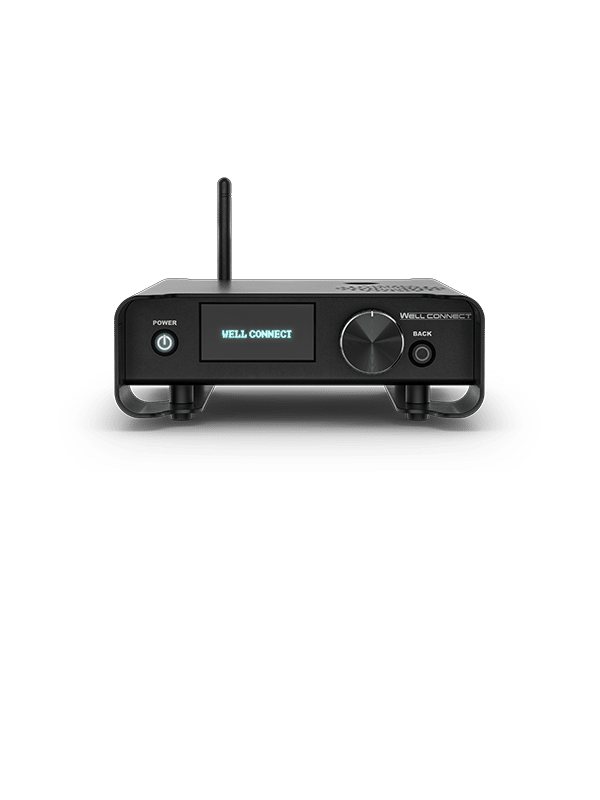

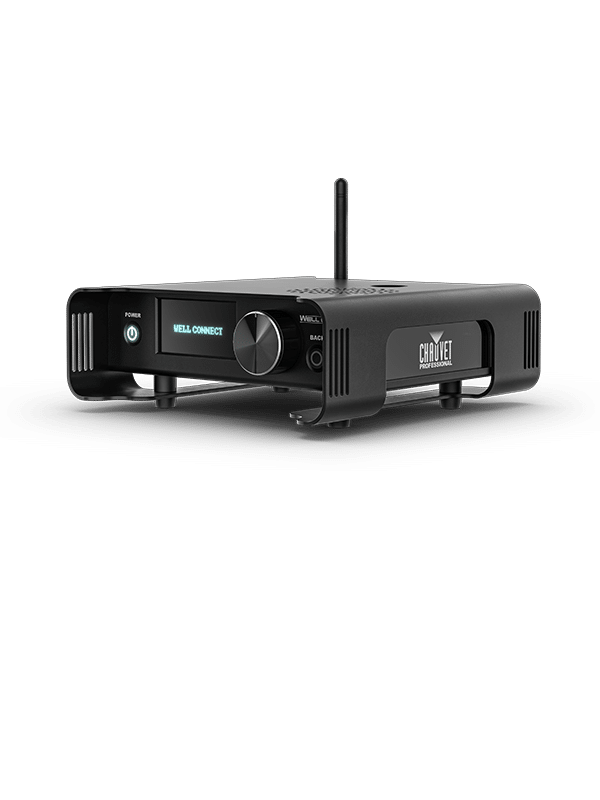

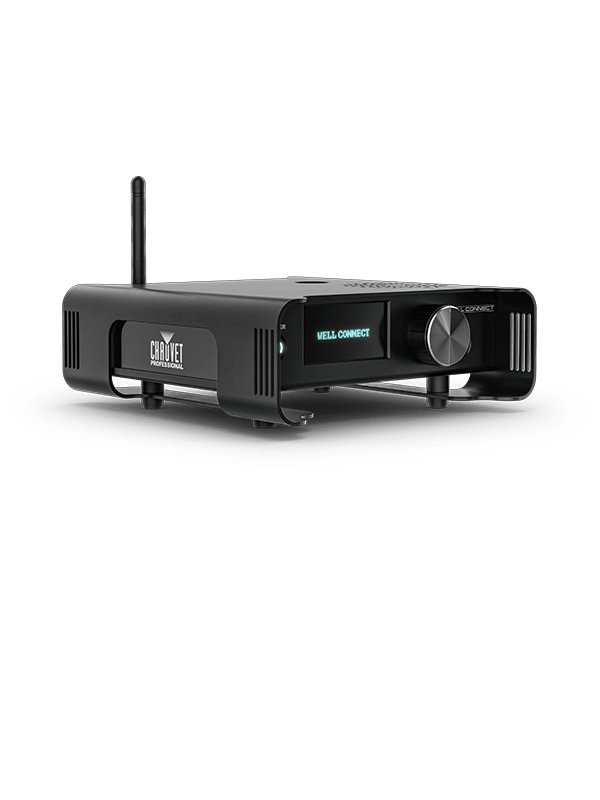

Chauvet WELL CONNECT

Designed to work seamlessly with the ConnectFX app, the compact battery-powered WELL CONNECT wireless transceiver enables app-driven flexibility and robust data transmission. Whether paired with WELL fixtures or making an entire lighting system wireless, WELL CONNECT offers unmatched portability, versatility, and ease of use for event professionals and system integrators. Reliable W-DMX/CRMX transmission and direct playback in a rugged, professional-grade package.

Add to wishlist

My Price?

Category: Uncategorized

Description

Wireless Control Hub: Compact, battery-powered Bluetooth and W-DMX/CRMX transceiver designed to control WELL fixtures or any DMX lighting system.
App-Driven Operation: Pairs seamlessly with the ConnectFX app on iOS and Android for intuitive wireless control of scenes and effects.
Flexible Output Options: Supports both wireless & wired DMX protocols, offering reliable signal distribution for any setup.
12-Hour Battery Life: Integrated lithium-ion battery delivers all-day wireless operation; USB-C port provides continuous power when needed.
Onboard Playback: Trigger pre-programmed scenes directly from the unit’s display—no console required.
Rugged & Road-Ready: Durable aluminum housing and M12 threaded bolt ensure quick, secure mounting in demanding environments.

Smart Firmware Management: Web-based UI allows for easy firmware updates and configuration.

SPECIFICATIONS

CONSTRUCTION / PHYSICAL

Dimensions: 6.89 x 7.01 x 2.56 in (175 x 178 x 65 mm)
Weight: 1.8 lb (0.9 kg)
Exterior Color: Black
Housing Material: Aluminum alloy

CONNECTIONS

Power Input: USB-C
Data Connectors: 5-pin XLR IN/OUT, USB-A Female, RJ45

CONTROL

Control Protocol: Chauvet CONNECT app, Art-Net, DMX, W-DMX, sACN

ELECTRICAL

Input Voltage: 5 VDC, 2A via USB-C

BATTERY

Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 8 hours
Battery Life: 12 hours
Battery Power: 12 V, 24 Ah

CERTIFICATIONS / QUALIFICATIONS

CE, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT’S INCLUDED

WELL CONNECT
EPSU USB-A
USB-A to USB-C cable

REQUIRED ACCESSORIES

Required Software: Chauvet CONNECT app

OPTIONAL ACCESSORIES

VIP Signal Distributor, VIP Media Server
