American DJ DP 415R

Details

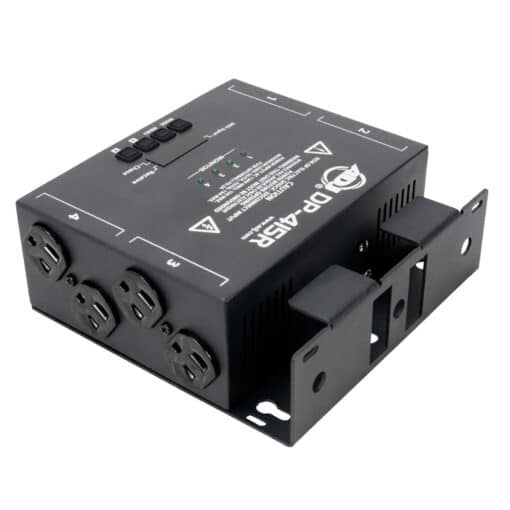

The ADJ DP-415R is a compact, portable 4-channel DMX dimmer/switch pack that has eight 3-prong 15 Amp Edison socket (2 for each channel) allowing you to be able to control up to 8 fixtures. The pack has a 4-button digital display menu and is RDM (Remote Device Management) compliant.

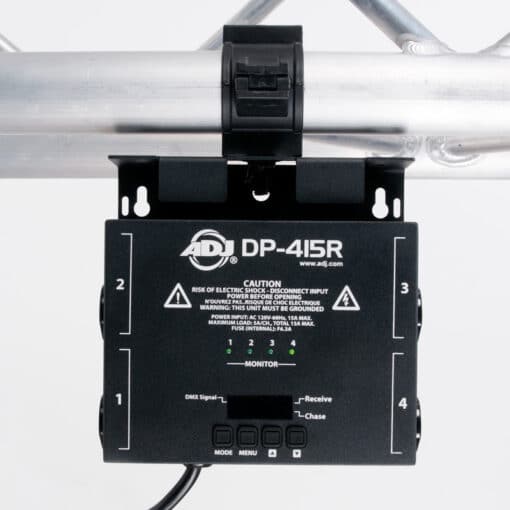

The hanging bracket is reversible to give you flexibility when installing this product to either a hanging bracket or on a truss and it can also be used with a clamp. It is also wall mountable. Also to make this product easier to use we incorporated LED “ON” indicators and a DMX signal indicator LED is also incorporated so that when DMX signal is present, the LED illuminates.

Specifications

• Compact 4-Channel DMX Dimmer/Switch Pack
• 2x 3-prong Edison plugs per channel (8 total plugs)
• On/Off power switch
• 3-pin DMX In/Out
• Digital Display with 4 Menu Control Buttons
• Supports RDM (Remote Device Management)
• Assign as a dimmer pack or switch pack
• Changeable hanging bracket to hang on truss
• Wall mountable
• LED “On” indications
• Max Power: 15A Total, 5A per channel  (120V)
• Dimensions (LxWxH): 10.25” x 8.25” x 3” / 260x209x76mm
• Weight: 6 lbs./2.72 kgs.
