High Power Single 15″ Subwoofer

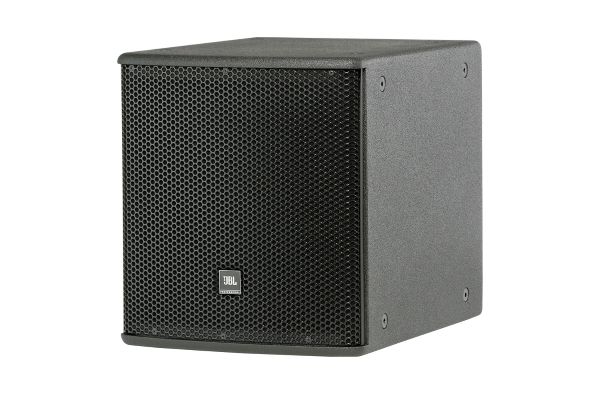

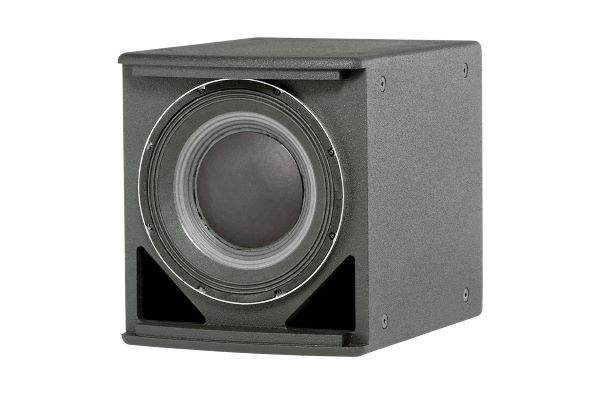

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive® dual voice coil dual gap 15″ woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
Features
- 2265H-1 15″ Differential Drive® dual voice coil dual gap, neodymium magnet transducer
- 800 watts continuous pink noise, 3200 watts peak power handling capacity
- Large vent area for high output with low distortion
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products
Specifications
| Frequency Range (-10 dB) | 32 Hz – 1 kHz |
| Frequency Response (± 3 dB) | 42 Hz – 1 kHz |
| Transducer Power Rating | 800 W (3200 W peak), 2 hrs. |
| Long-Term System Power Rating | 675 W (2700 W peak), 100 hrs. |
| Maximum SPL (1m) | 35 Hz – 400 Hz: 126 dB-SPL cont avg (132 dB peak) |
| System Sensitivity | 35 Hz – 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m |
| Nominal Impedance | 8 ohms |
| Low Frequency Driver | 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Suspension Attachment | 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware |
| Finish | Black DuraFlex™ finish. White available upon request. |
| Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. |
| Input Connector | NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through. |
| Environmental Specifications | Mil-Std 810; IP-x3 per IEC529. |
| Dimensions (H x W x D invertical cabinet orientation) | 483 x 419 x 597 mm(19.0 x 16.5 x 23.5 in) |
| Net Weight | 20.6 kg (45.5 lb) |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers. |
