200 cm Tall Constant Beamwidth Technology™ Line Array Column Speaker with Thirty-Two 50 mm (2 in) Drivers
The CBT 200LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency and coverage options, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent coverage without the inconsistent vertical beaming, uneven coverage, and out-of-coverage lobing that are typical of both powered and nonpowered column speakers.
Features
- Patented Constant Beamwidth Technology™ provides true wide-band constant directivity coverage up to the highest frequencies and reduces out-of-coverage lobing.
- 200 cm (6.6 ft) height extends pattern control to include lower frequencies.
- Vertical pattern coverage switchable between 30° and 15° for medium or long-throw coverage.
- Asymmetrical Progressive-Gradient vertical coverage setting directs more sound toward the far area of the listening space, making front to back sound levels more consistent. Progressive-Gradient extent is adjustable.
- Narrow width of 98.5 mm (3.8 in) fits visually into a wide variety of applications.
- Dynamic Sonic-Guard™ low-audibility overload protection.
- Swivel (pan)/tilt wall bracket included
- Built-in 70V/100V transformers, plus direct capability.
Specifications
| Components | Thirty-two 50 mm (2 in) Full-Range Drivers |
| Frequency Range (-10 dB) | 80 Hz – 20 kHz |
| Frequency Response (±3 dB) | 130 Hz – 18 kHz (narrow coverage, music mode setting) |
| Coverage – Vertical | Narrow Mode:15° (500 Hz – 16 kHz, +15°/-2° [<60° down to 220 Hz, <90° down to 140 Hz])Broad Mode: 30° (400 Hz – 12 kHz, +15°/-8°, [<60° down to 220 Hz, < 90° down to 140 Hz])Asymmetrical Progressive-Gradient Mode: (Top speaker module set at “Narrow” and bottom speaker module at “Broad”, for “J-type” coverage, sending higher sound levels toward the far area of the listening space): 22.°(+7° from aiming axis up; -15° from aiming axis down, 300 Hz – 12 kHz, +15°/-8°, [<60° down to 220 Hz, <90° down to 140 Hz]) |
| Coverage – Horizontal | 150° (ave, 1 kHz – 4 kHz, ±20°) |
| Sensitivity – Narrow | (speech mode): 95 dB (2 kHz – 5 kHz)(music mode): 92 dB (150 Hz – 18 kHz) |
| Sensitivity – Broad | (speech mode): 93 dB (2 kHz – 5 kHz)(music mode): 90 dB (150 Hz– 18 kHz) |
| Sensitivity – Asymmetrical Progressive-Gradient Mode (on-axis) | (speech mode): 94 dB (2 kHz – 5 kHz)(music mode): 91 dB (150 Hz – 18 kHz) |
| Nominal Impedance (direct) | 8Ω per half (top and bottom) for 4 ohms total (in thru mode).Min-Z for system = 2.9Ω. |
| Hookup | Ensure identical polarity of hookup – for proper functioning, the two loudspeaker modules (top and bottom) must be hooked up in same polarity. Parallel hookup at the two sets of back panel input terminals is recommended. |
| Power Capacity (thru setting) | 650W (2600W peak), 2 hrs400W (1600W peak) 100 hrs |
| Max SPL – Narrow | (speech mode): 123 dB cont ave (129 dB peak)(music mode): 120 dB cont ave (126 dB peak) |
| Max SPL – Broad | (speech mode): 121 dB cont ave (127 dB peak)(music mode): 118 dB cont ave (124 dB peak) |
| Max SPL – Asymmetrical Progressive-Gradient Mode (on-axis) | (speech mode): 122 dB cont ave (128 dB peak) (music mode): 119 dB cont ave (125 dB peak) |
| 70V/100V Transformer Type | Set individually per speaker module (top and bottom): 120W, 60W, 30W (15W at 70V only), and direct 8Ω, via switch. Total (with top & bottom set to same): 240W, 120W, 60W (30W at 70V only) and direct 4Ω. Max. insertion loss less than 1 dB at any tap. |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Connectors | Two (one for top half and one for bottom half), screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), or bare wire (up to 12 AWC/2.5 mm2) |
| Outdoor Capability | IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. |
| Colors | Black or White (-WH) |
| Configuration | Two pieces (top and bottom half), each 100 cm tall, connected together via Coupler Plate. Top/bottom orientation of each piece must be observed. |
| Insert Points | 28 M6 insert points on back panel (36 total with 8 center points being utilized by the Coupler Plate). |
| Mounting | Included swivel (pan) / tilt wall bracket (must be mounted to threaded points on Coupler Plate) provides continuously variable ±80° left-right swivel aiming (at up to ±5° up/down tilt), continuously adjustable ±10° up/down tilt, as well as 5° fixed increment tilt angles to ±10°. Twenty-eight available threaded mounting points (M6 diameter x M1 thread pitch x 17 mm deep) located on back panel. Threaded mounting points can be utilized for suspension. Compatible with OmniMount 30.0 brackets |
| Dimensions (H x W x D) | 2000 x 98.5 x 153 mm (78.8 x 3.8 x 6.0 in) |
| Net Weight | 14.6 kg (33 lb) |

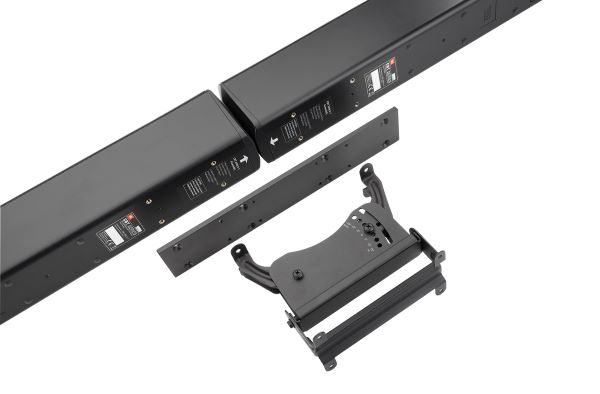

| Included Accessories | Swivel (pan) / tilt wall bracket, Coupler plate |
| Optional Accessories | MTC-PC2 terminal panel cover MTC-CBT-FM1 flush-mount low-profile wall-mount bracket (2 pieces required) MTC-CBT-SMB1 stand-mount bracket for use with 35 mm speaker stands (heavy duty stand required) |
