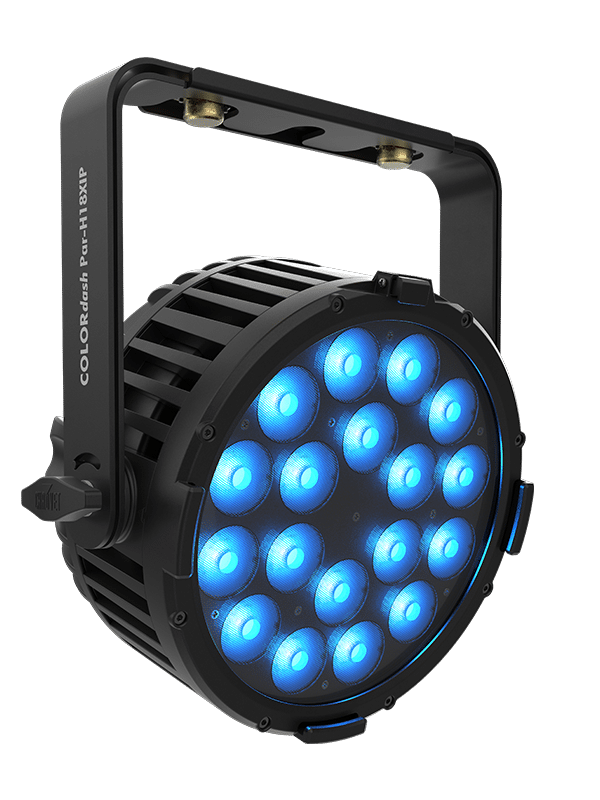

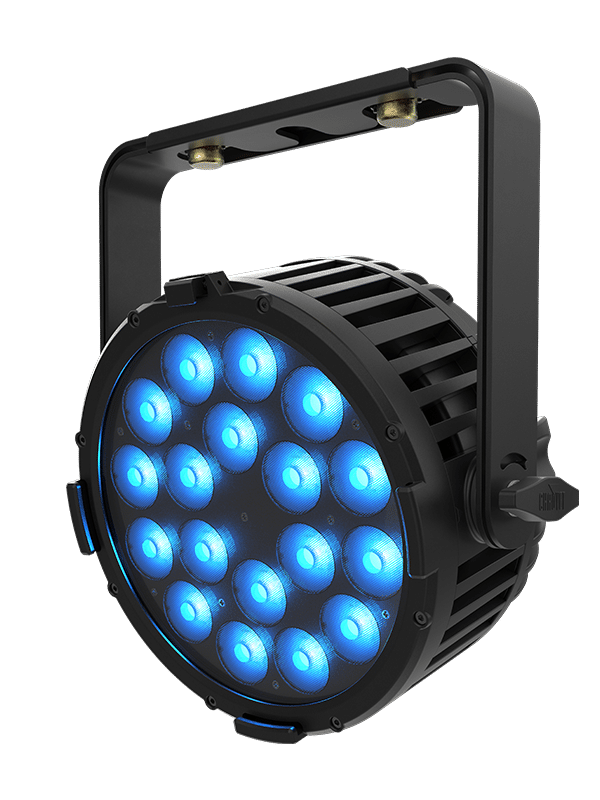

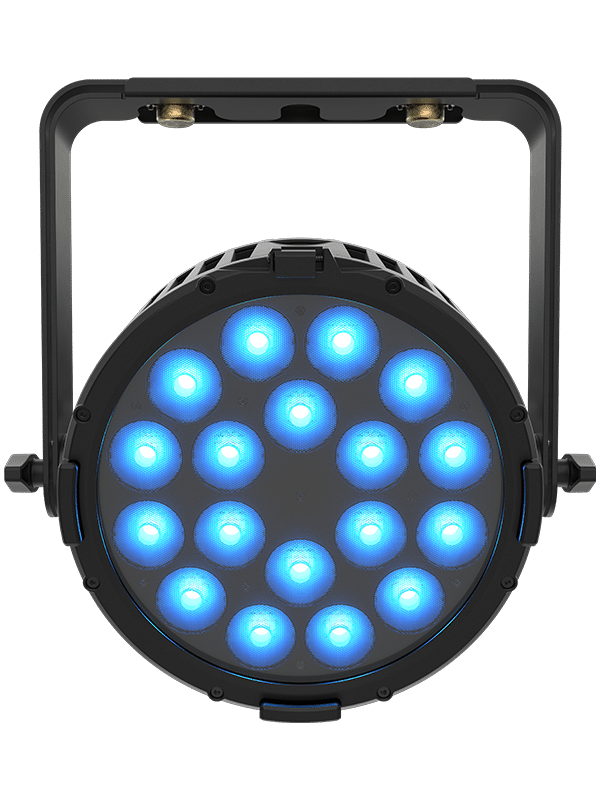

Chauvet COLORdash PAR H18 XIP – detail view

Chauvet COLORdash PAR H18 XIP

$902.00

The rugged COLORdash PAR H18X IP RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H18X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.

Add to wishlist

My Price?

Categories: Chauvet Professional, Chauvet Professional, Chauvet Professional Pars

Description

Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
At home in any weather conditions with IP-rated power and DMX connections
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Selectable, smooth dimming curves for eliminating flicker and choppiness in fades
Easy-to-read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Double-bracketed yoke with omega bracket doubles as floor stand

Optical

Light Source: 18 LEDs (HEX-color RGBAWUV)
Color Temperature (range): 2,800 to 10,000 K
Color Temperature (at full): 8,439 K
Beam Angle: 25.4°
Field Angle: 39°
Lumens: 5,567 lm
Illuminance (total): 1,106 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 13.58 x 12.89 x 6.23 in (344.8 x 327.4 x 158.2 mm)
Weight: 14.4 lb (6.6 kg)
Exterior Color: Black
Housing Material: Aluminum diecast
Accessory Holder/Gel Frame Size: 9.5 in (241.3 mm)

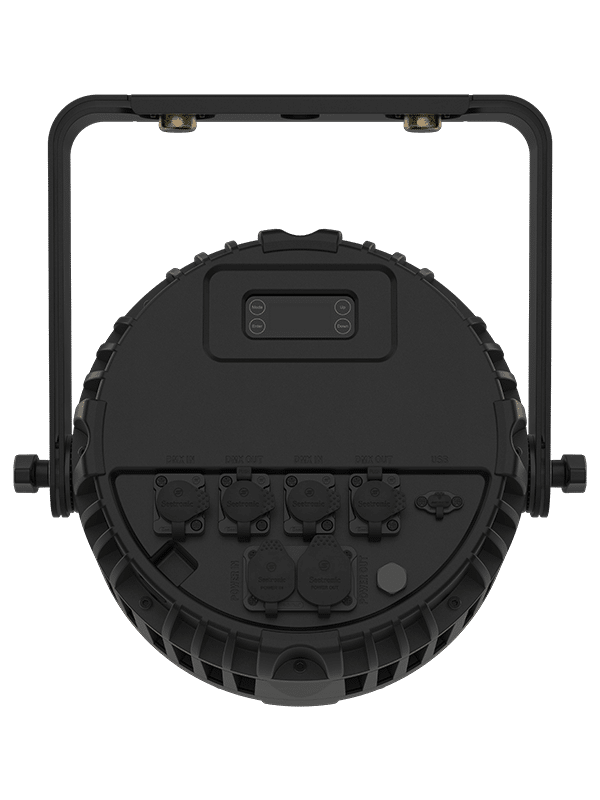

Connections

Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Update: USB-C

Control

Control Protocol: DMX, RDM
DMX Channels: 6, 8, 9, 13 or 14
Modes/Personalities: 5 personalities (6ch, 8ch, 9ch, 13ch, 14ch)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
Power and Current: 154 W, 1.25 A @ 120 V, 60 Hz
Power and Current: 148 W, 0.72 A @ 208 V, 60 Hz
Power and Current: 150 W, 0.66 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

COLORdash PAR H18X IP
Seetronic Powerkon IP65 power cord
Gel frame
Omega bracket
Quick Reference Guide or User Manual

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Riglink TR1 Cables
Riglink IP DMX cables

Chauvet COLORdash PAR H18 XIP

At a Glance
