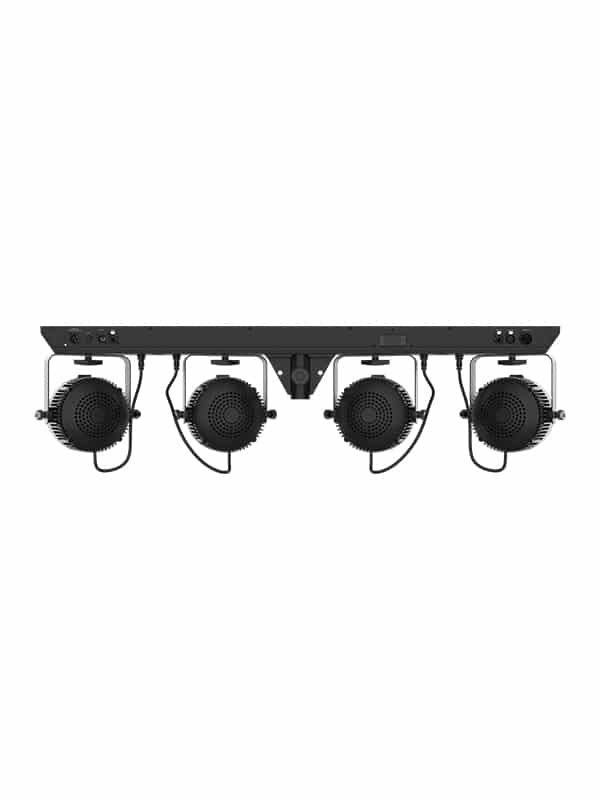

Chauvet Professional COLORdash PAR Bar 4
$2,237.50
A powerful all-in-one wash lighting solution built for convenience and versatility in small theatres, events, and multi-purpose venues. The COLORdash Par Bar 4 includes everything you need to shape and control your light. Each of the four RGBAW-UV LED heads can be independently focused, with beam angles adjustable from 15° to 30° using the included wide filter. Four-leaf barndoors help keep light precisely where you want it. Selectable dimming curves deliver seamless fades, while advanced optics ensure rich, even color mixing. Adjustable pulse width modulation provides flicker-free performance on camera, and connectivity is simple with 5-pin XLR or standard CAT6 Ethernet for DMX control. A responsive touchscreen interface and flexible mounting options round out this versatile fixture package.
At a Glance
- Complete, 4-head wash lighting solution with high-power RGBAW-UV LED Arrays
- Multiple, convenient mounting options for maximum versatility
- Independently focusable heads allow for customizable stage coverage
- Included barndoors for each head to cut light out of unwanted areas
- Easily connect to DMX control using standard CAT6 Ethernet cable
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- RDM (Remote Device Management) for added flexibility
- Selectable, smooth dimming curves for eliminating flicker and choppiness in fades
- Easy to read OLED display with password protection and touchscreen interface
- Advanced optics provide exceptional color mixing and high efficiency
Specifications
Optical
- Light Source: 1, RGBAW-UV LED Array (per head)
- Beam Angle narrow (Single Par): 15.3°
- Field Angle narrow (Single Par): 29.8°
- Beam Angle wide (Single Par): 30.4°
- Field Angle wide (Single Par): 49.4°
- Lumens (Single Par): 4305 lm
- Lumens (All Pars) : 17930 lm
- Illuminance Narrow (Single Par): 1482 lux @ 5 m
- Illuminance Wide (Single Par): 510 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 45.3 x 5.16 x 11.08 in ( 1150.6 x 131 x 281.4 mm)
- Weight: 28.8 lb (12 kg)
- Exterior Color: Black
- Housing Material: Aluminum Alloy
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR, Neutrik etherCON or Amphenol XLRnet (etherCON Compatible)
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 6,8,9,14,24,32,36,41
- Modes/Personalities: 8 personalities (6,8,9,14,24,32,36,41)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 100 V; 2 units @ 120V; 4 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
- Power and Current: 557W, 5.55 A @ 100 V, 60 Hz
- Power and Current: 551W, 4.63 A @ 120 V, 60 Hz
- Power and Current: 546 W, 2.63 A @ 208 V, 60 Hz
- Power and Current: 550W, 2.41 A @ 230 V, 50 Hz
- Power and Current: 559W, 2.33 A @ 240 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): 32 °F to 104 °F (0 °C to 40 °C)
What’s Included
- COLORdash Par Bar
- Seetronic Powercon IP65 power cord
- Wide Filter (4pc)
- Barndoors (4pc)
- Tripod mount
Optional Accessories
- Professional Clamps : CTC-50HC, CTC-50HCN
- Seetronic Powercon power linking cables.
- 5-pin IP or Non-IP DMX Cables
- Ethernet or etherCON compatible cables
