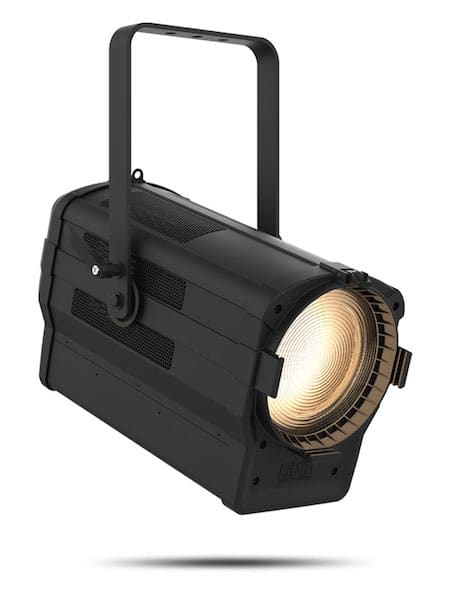

Chauvet Professional's Ovation F-915VW – detail view

Chauvet Professional’s Ovation F-915VW

$1,945.00

A 6-inch Fresnel-style fixture that leverages a unique 6-color LED system to project a bright, soft, variable white field of light with high CRI, motorized zoom, and precise +/- green adjustment.
Perfectly suited for theatre and television studio applications, its high-quality color rendering, flicker-free operation, and battery power option provide ultimate versatility.

Add to wishlist

My Price?

SKU: OVATIONF915VW Category: Fresnels

Description
Reviews (0)

AT A GLANCE

Variable white LED Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 16° to 42° beam angle
Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS
Beautiful 16-bit dimming
Proprietary LED engine delivers tremendous, equal output at all color temperatures
Easy to use on board control of color temperature, zoom and dimming
+/- Green adjustment via DMX or on-board control
Independent color control over the 6-color engine when a splash of color is needed
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications

Optical

Light Source

46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
Color Temperature (range)

2800 to 8000 K
CRI

89 to 93
Beam Angle

14° to 43°
Field Angle

27° to 68°
Zoom Range

14° to 68°
Lumens (27°)

1,631
(68°) : 2,408
Illuminance (27°)

800 lux @ 5 m
(68°): 152 lux @ 5 m
Illuminance drop percentage (fan silent)

23%
(fan off) : 59%
Selectable PWM

600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects

Dimmer

Electronic
Shutter/Strobe

Electronic
Zoom

Motorized
Strobe Rate

0 to 27 Hz
Standalone Color Mixing

Yes
Color Temperature Presets

Yes
Dim Modes

4
Built-in Automated Programs

No

Construction/Physical

Dimensions

15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
Weight

12.79 lb (5.8 kg)
Exterior Color

Black
Housing Material

Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size

6.25 in (158.75 mm)

Connections

Power Connection

Edison (local) plug to Seetronic Powerkon IP65
Connector

Seetronic Powerkon IP65
Power Output

Seetronic Powerkon IP65
Power Connection

3-pin XLR
Power Input

28 VDC, 3-pin XLR
Data Connectors

5-pin XLR
Cable Length (power)

5 ft (1.5 m)

Control

Control Protocol

DMX, RDM
DMX Channels

2, 5, 7, 10, 14, 17 or 19
Modes/Personalities

8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)

Electrical

Input Voltage

100 to 240 VAC, 50/60 Hz (auto-ranging)
Input Voltage

28 VDC
Power Linking

11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
Power and Current

125 W, 1.054 A @ 120 V, 60 Hz
Power and Current

122 W, 0.613 A @ 208 V, 60 Hz
ower and Current

121 W, 0.569 A @ 230 V, 50 Hz

Certifications/Qualifications

Certifications

CE, MET, FCC, UKCA
IP Rating

IP20, dry location
Temperature (Ambient)

-4 °F to 113 °F (-20 °C to 45 °C)

Noise Levels

Compatible Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon IP65 cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 6.25″ Barndoor V1

What’s Included

Ovation F-415VW
Seetronic Powerkon IP65 power cord
Gel frame holder (6.25 in/158.75 mm accessories)
