Low Profile

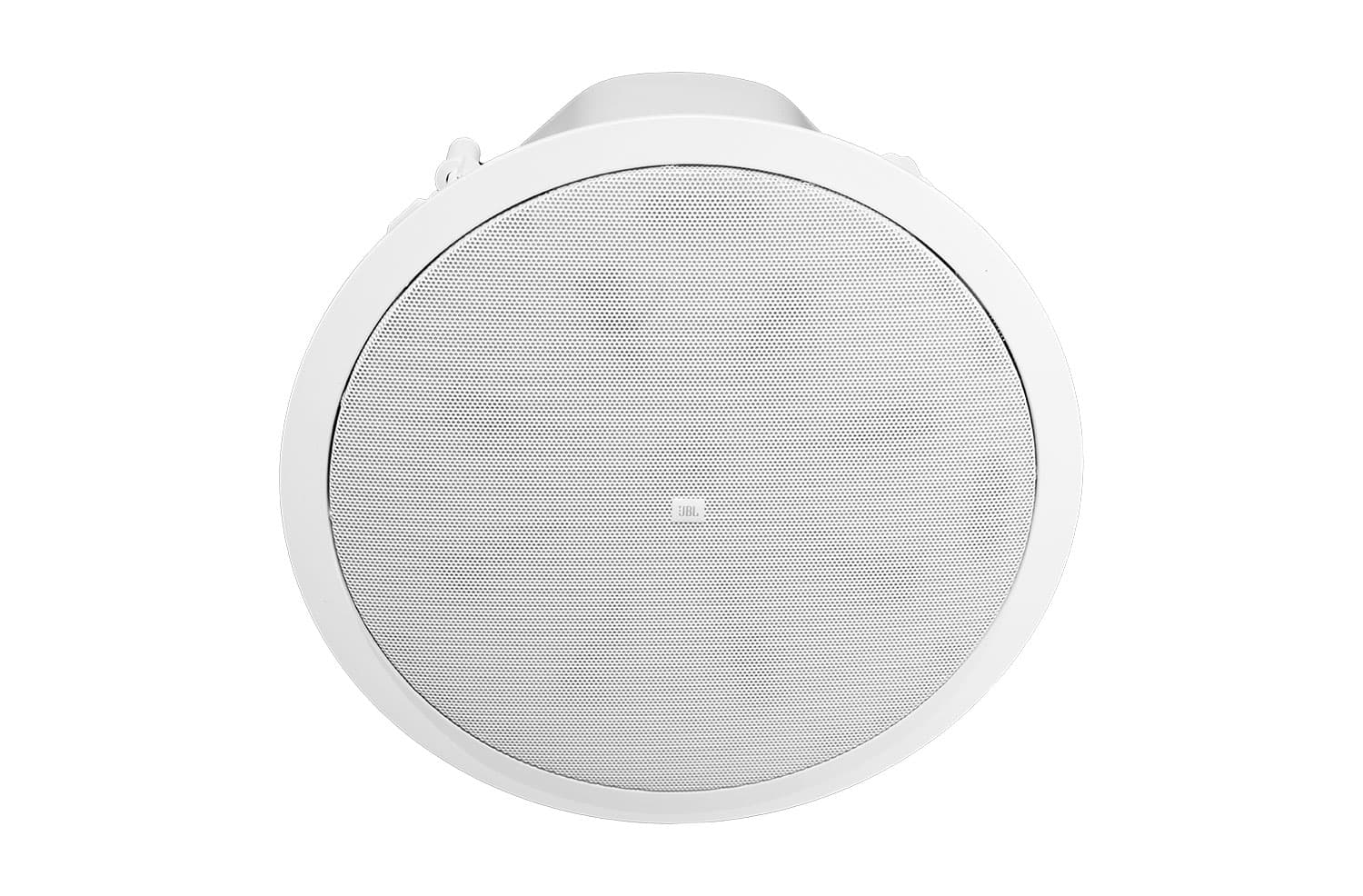

Built on the same platform as the Control 47C/T, the Control 47LP is a low-profile model intended for locations with limited above-ceiling clearance (only 5.6 inches deep). The system features the same great sonic character and wide 120° of coverage as the Control 47C/T and is perfect for settings ranging from restaurant and retail to large casinos and beyond.
Features

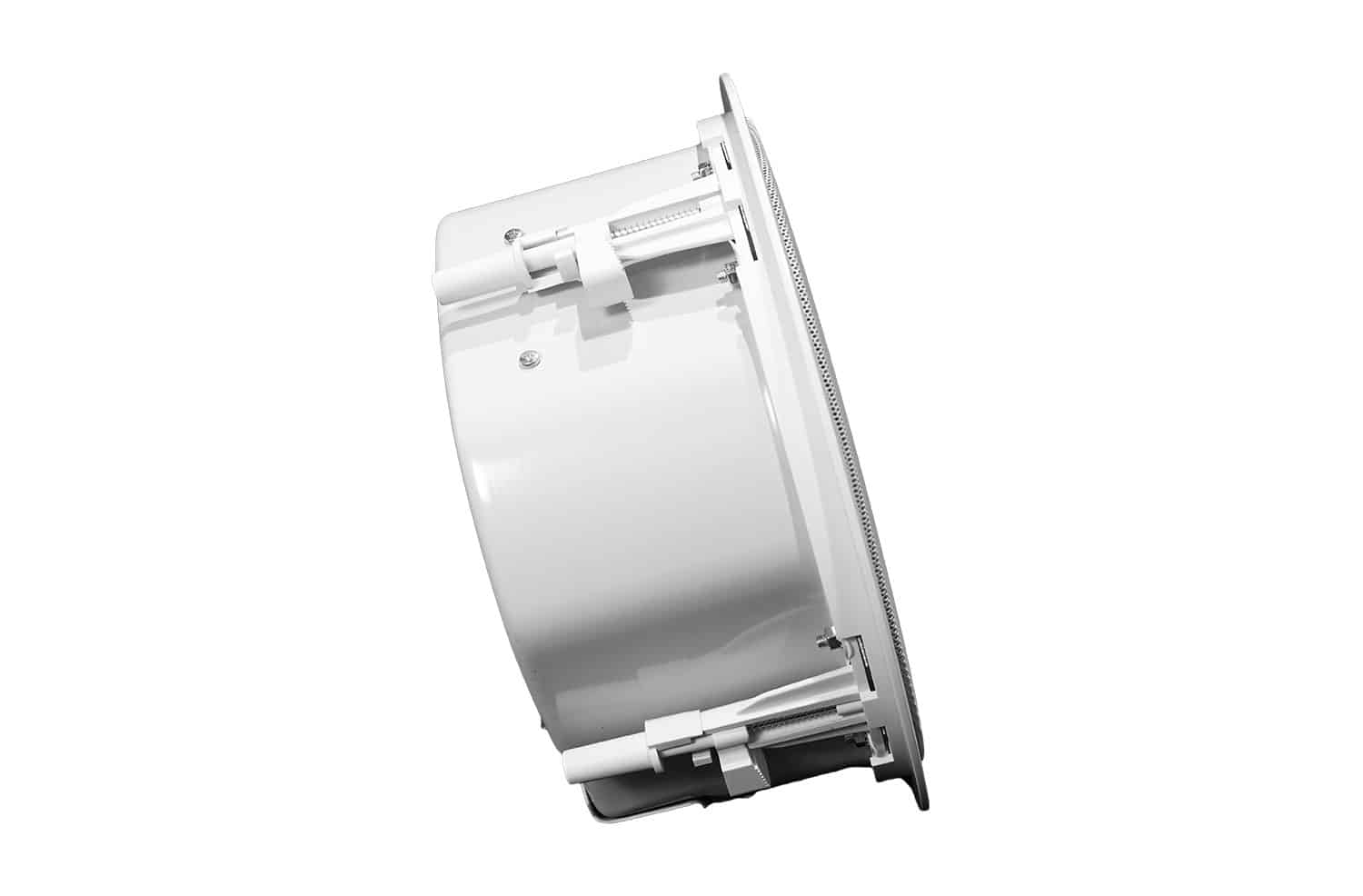

- Shallow Backcan Version of 47C/T for locations with limited clearance
- Same Sonic Signature as Control 47C/T Allows Mixing & Matching of mode

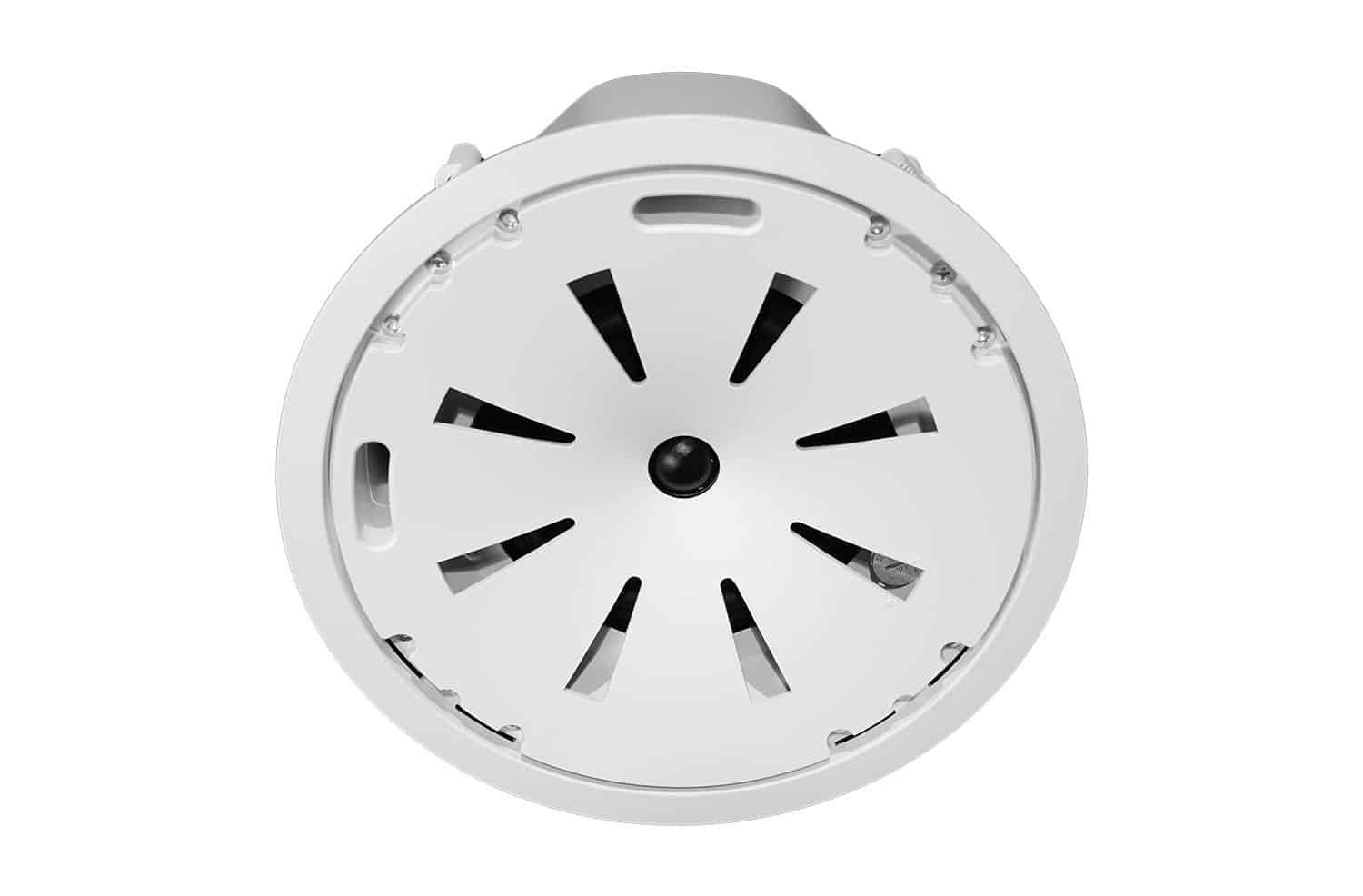

- Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
- Flat Frequency Response and Superior Performance
- Elegant design fits any décor
Specifications
| Frequency Range | 68 Hz – 20 kHz |
| Power Capacity | 150W program, 75W pink noise |
| Sensitivity | 91 dB, 1W, 1m |
| 70V/100V Taps | 60W, 30W, 15W (7.5W at 70V only) |
| Coverage | 120° conical, consistent broadband |
| Nominal Impedance | 8 ohms |
| Component | 6.5 inch (135 mm) woofer, 1″ tweeter |
| Termination | Screw-down removable locking clip-in connector |
| Included Accessories | C-rings, tile rails, paint shield, cutout template, Grille |
| Dimensions (Diameter x Depth) | 305mm Diameter x 142mm Diameter Depth (12.0 in x 5.6 in) |
