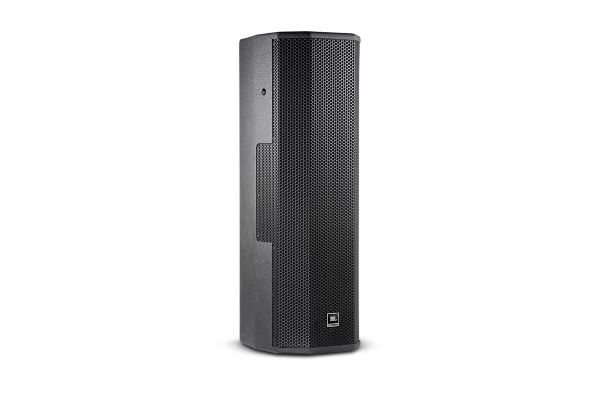

JBL CWT128

Dual 8″ 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology

The JBL Crossfired Waveguide Technology CWT128 is a compact full-range 2-way system designed to provide extremely wide-angle coverage with maximum bandwidth and SPL in a single system package. The unique wide coverage pattern horn is designed to provide seamless coverage to 160-degrees horizontally. CWT128’s small footprint makes the system ideal for nearly all architecturally sensitive environments, taking up about a third of the footprint of two speakers splayed side by side.

Features

• Seamless horizontal coverage across a full 160°
• Compact size and small footprint make it ideal for architecturally sensitive environments
• Dual 205 mm (8 in) LF transducers

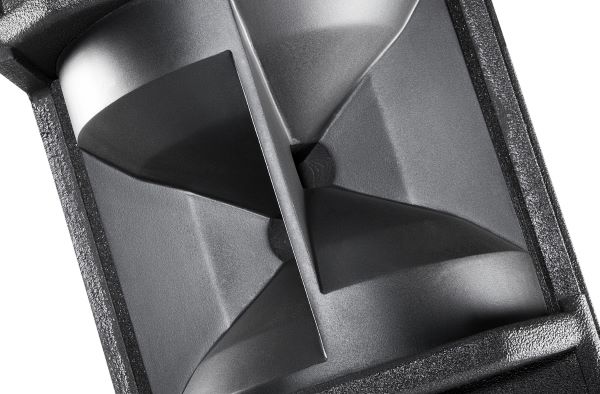

• Extremely wide-coverage 160° x 60° waveguide
• Dual 25 mm (1″) exit, 38 mm (1.5″) diaphragm compression driver
• Easy to install with 4 M10 attachment points built in across the top and sides
• 4 M8 points on the back panel accept OmniMount® wall mounting brackets
• WRC and WRX weather resistant versions are available upon request
• CWT128 is available in white – WH

Applications

• Transportation Facilities
• Cinema
• Sports Facilities
• Theme Parks

Specifications
