EAW MKC80

Approaching installs from a new angle

With a spectrum of driver sizes, each MKC product fills a unique need for a number of use cases. Each cabinet was designed with this in mind, incorporating angles into the form factor that allows for low profile placement of the loudspeakers to a ceiling, wall, or structure.

Key Selling Points

• High output, compact coaxial loudspeaker
• Patented CSA coaxial horn provides superior control, fidelity and output
• Integrated handle and pole mount
• Weather protection and transformer options
• Companion UXA4403 amplifiers
• Versatile accessories for a vast range of applications

Specifications

• Frequency Response: 60Hz – 20kHz

• Max SPL: 132dB

• Operating Mode: LF/HF, DSP w/ EAW Focusing & DynO

• Subsystem: LF Transducer: 1x8in cone, 2in VC, Vented | HF Transducer: 1×1-in exit, 35mm voice coil compression driver, Concentric Summation Array (CSA) loaded

• Nominal Beamwidth: 90 x 60 degrees, rotatable

• Power Handling: 450W @ 8ohms

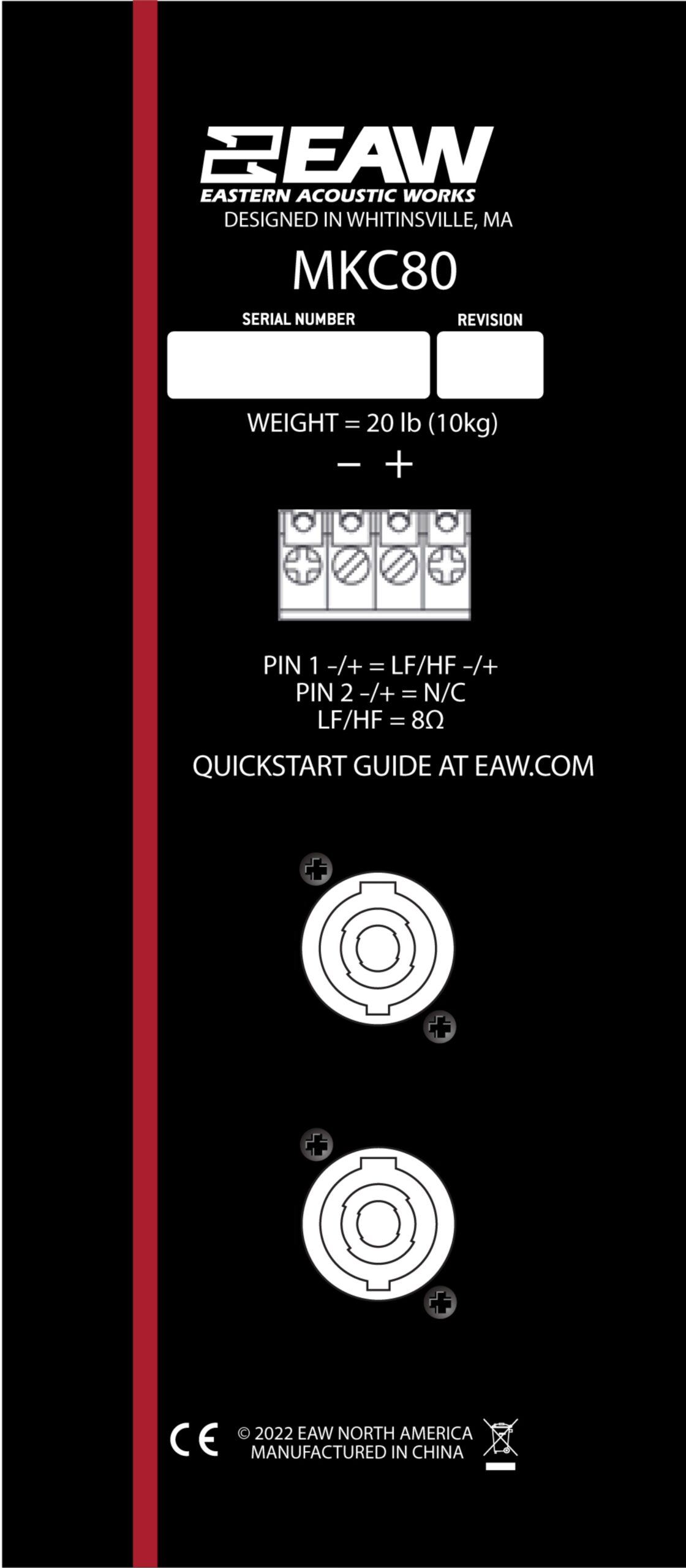

• Connections: 2x Neutrik NL4, 2-pin barrier strip

• Dimensions: 16.6 in x 10.0 in x 10.5 in (422 mm x 255 mm x 267 mm)

• Weight: 20 lbs (9.1kg)
