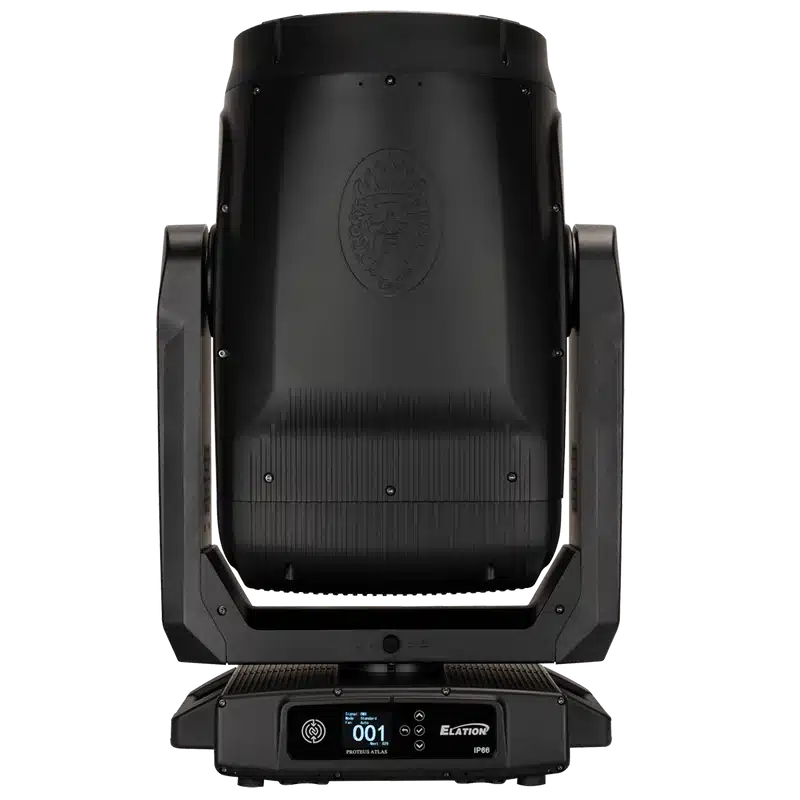

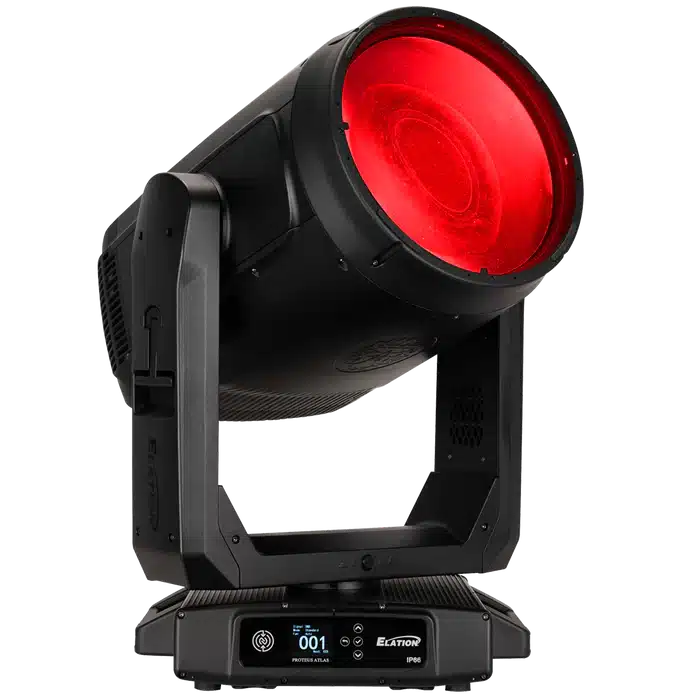

Elation PROTEUS ATLAS

Its onboard effects system sculpts light with gobos, frosts, and prisms—shifting seamlessly from piercing beams to layered textures and soft washes. With CMY color mixing and a 25-position color wheel, Atlas offers a rich palette for bold bursts, atmospheric moods, and everything in between.

The Atlas’ precision motors provide smooth pan, tilt, and continuous rotation, while Elation’s SkyMotion system enables synchronized patterns across fixtures without a console. Built and certified with an IP-66 rating, Atlas stands strong in any weather, making it ideal for concerts, cruise ships, and permanent outdoor installs.

Designed for those who think on a larger scale, PROTEUS ATLAS delivers power, precision, and creative freedom, letting audiences look up and experience the extraordinary.

SOURCE

• 500W LILI (Laser Illuminated Lighting Instrument)
• 9000K, CRI 70
• 12,000 Hour Lamp Life

PHOTOMETRIC DATA

• 1.000.000 Lux @ 20m
• 100.000 Lux @ 100m
• Beam Angle 0.6° – 8.5°

EFFECTS

• Dual Frost (Hot- Spot Beam, Wash FX)
• Ultra- Fast Zoom
• Focus
• 2×3 Prisms on Dual Planes
• Digital Shutter and Strobe
• Pan Angle 360° / 540°
• Tilt Angle 250°

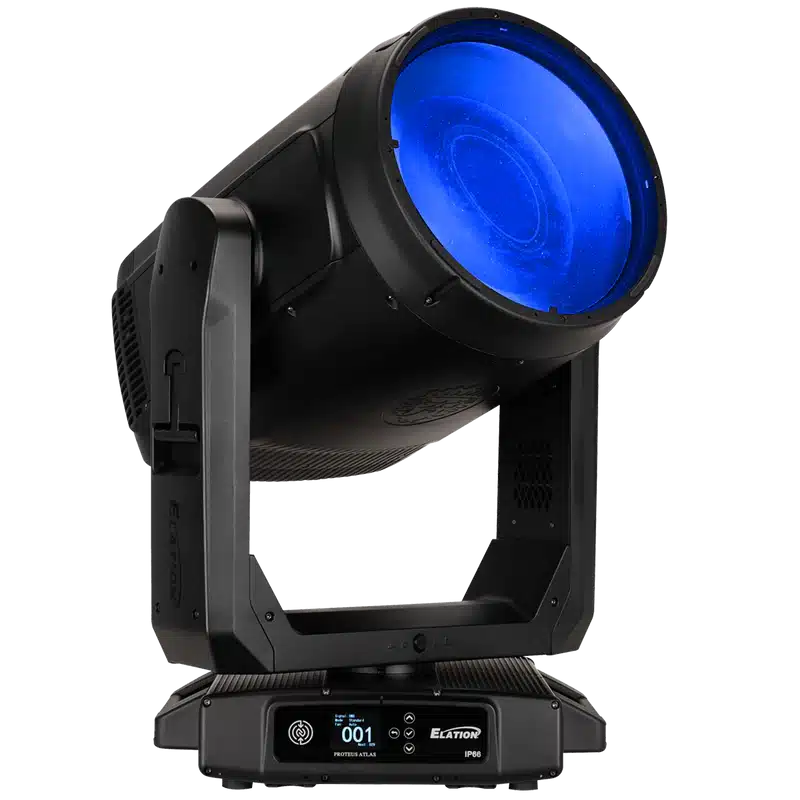

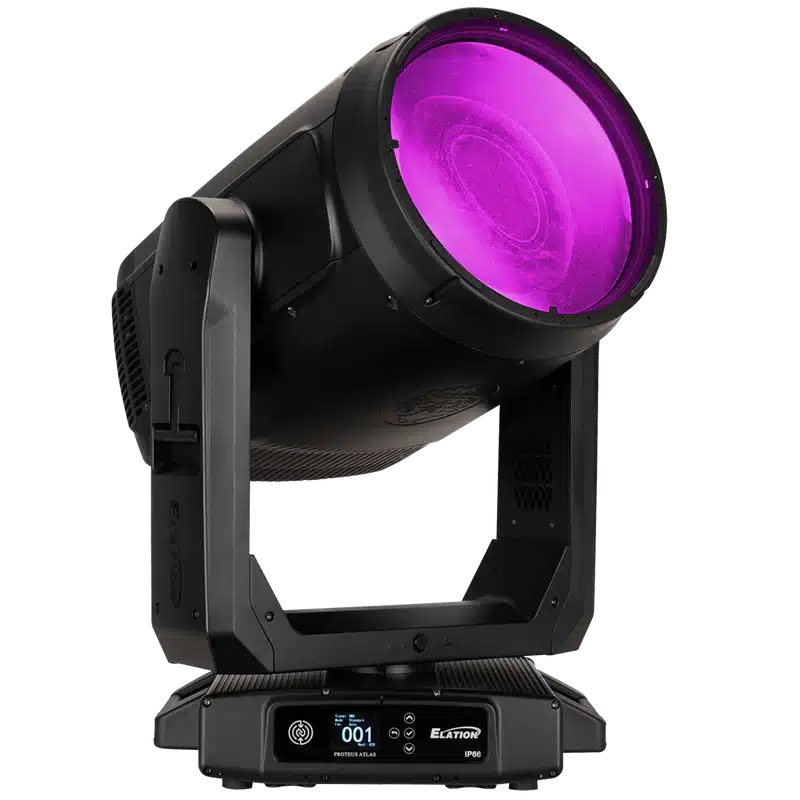

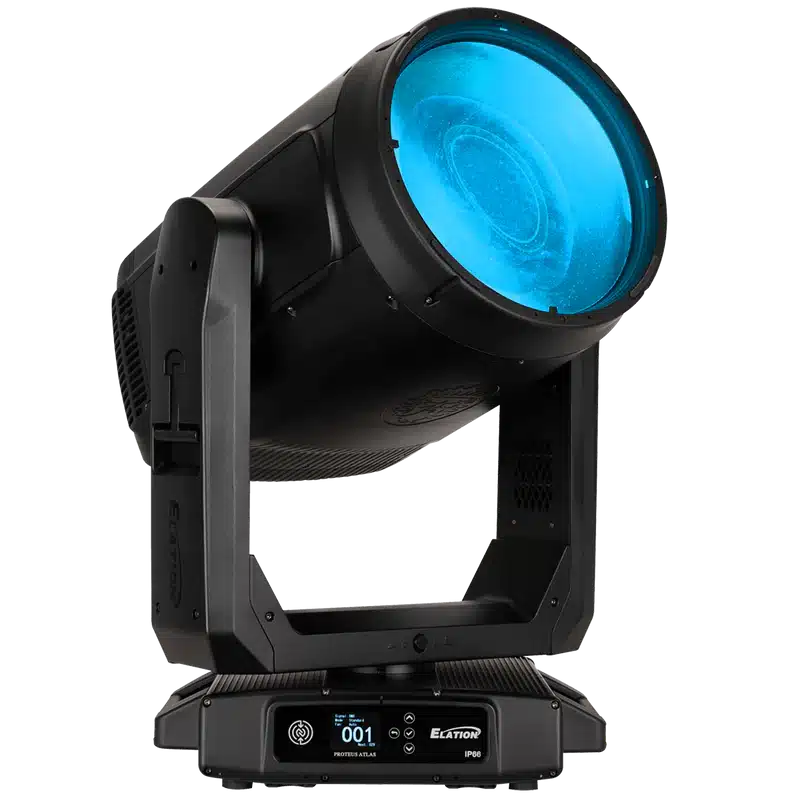

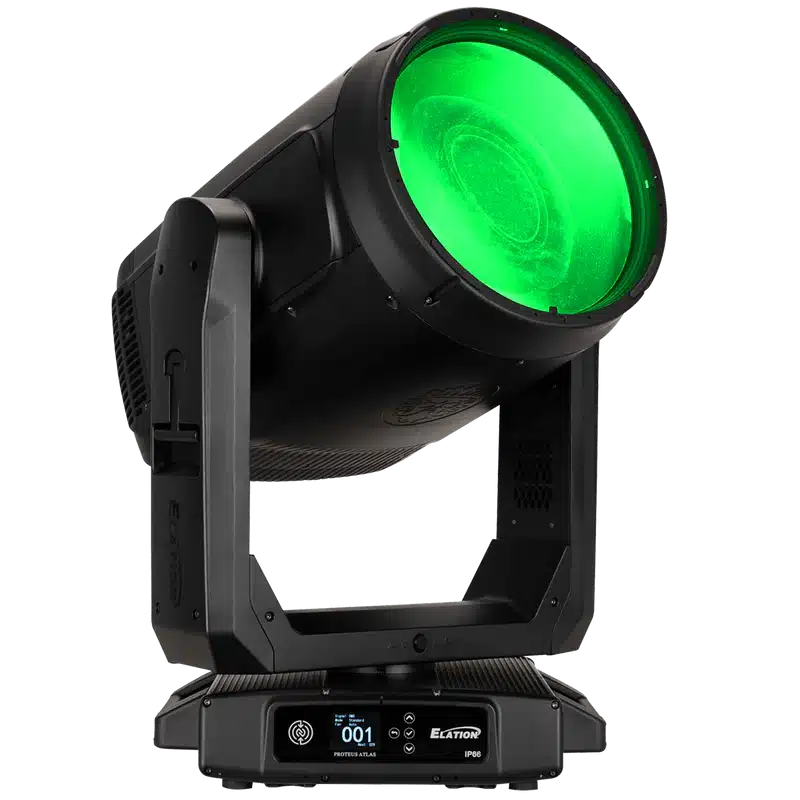

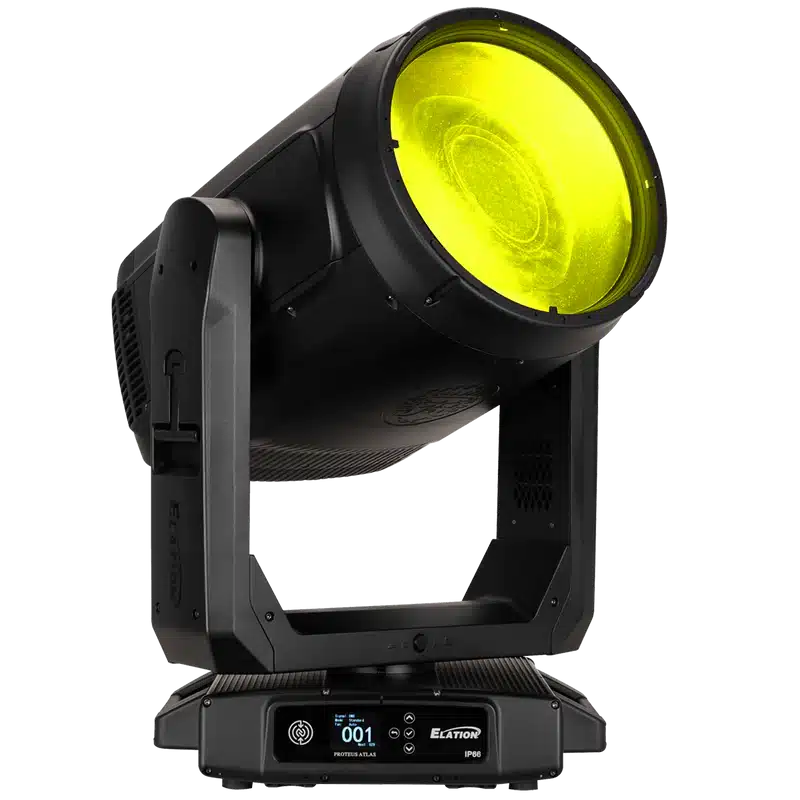

COLOR

• Full CMY Color Mixing System
• 25 Position Color Wheel

GOBOS

• 2 Gobo Wheels
• 13 Interchangeable-Rotating / Indexing Metal Gobos
• 26 Static-Stamped Metal Gobos

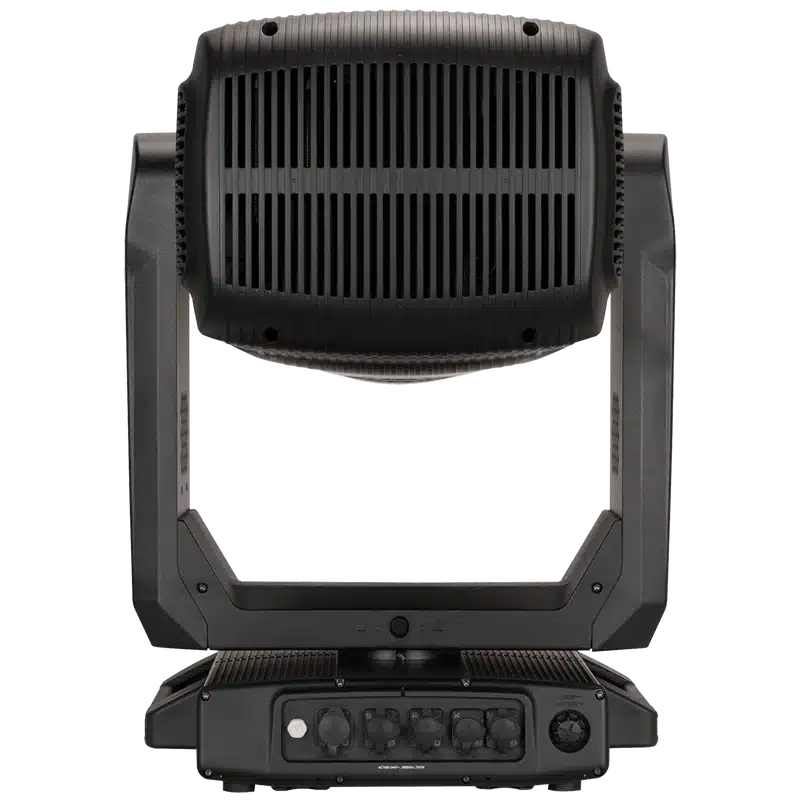

CONTROL / CONNECTIONS

• 2 DMX Channel Modes (30/41 Ch)
• (4) Button Touch Panel
• Full Color 180° Reversible LCD Menu Display
• DMX, RDM, Art-Net and sACN Protocol Support
• NFC Support
• Ip65 5pin DMX In/Out
• IP65 RJ45 Ethernet In/Out
• IP65 Locking Power In

SIZE / WEIGHT (approx.)

• Length: 14.6” (370mm)
• Width: 20” (508mm)
• Height: 31.5” (800mm)
• Weight: 124.1 lbs. (56.3kg)

ELECTRICAL / THERMAL

• AC 100-240V 50/60Hz
• 700W Max Power Consumption
• -4°F to 113°F (-20°C to 45°C)

APPROVALS / RATINGS

• CE | cETLus | UKCA | FCC | IP66 | FDA
