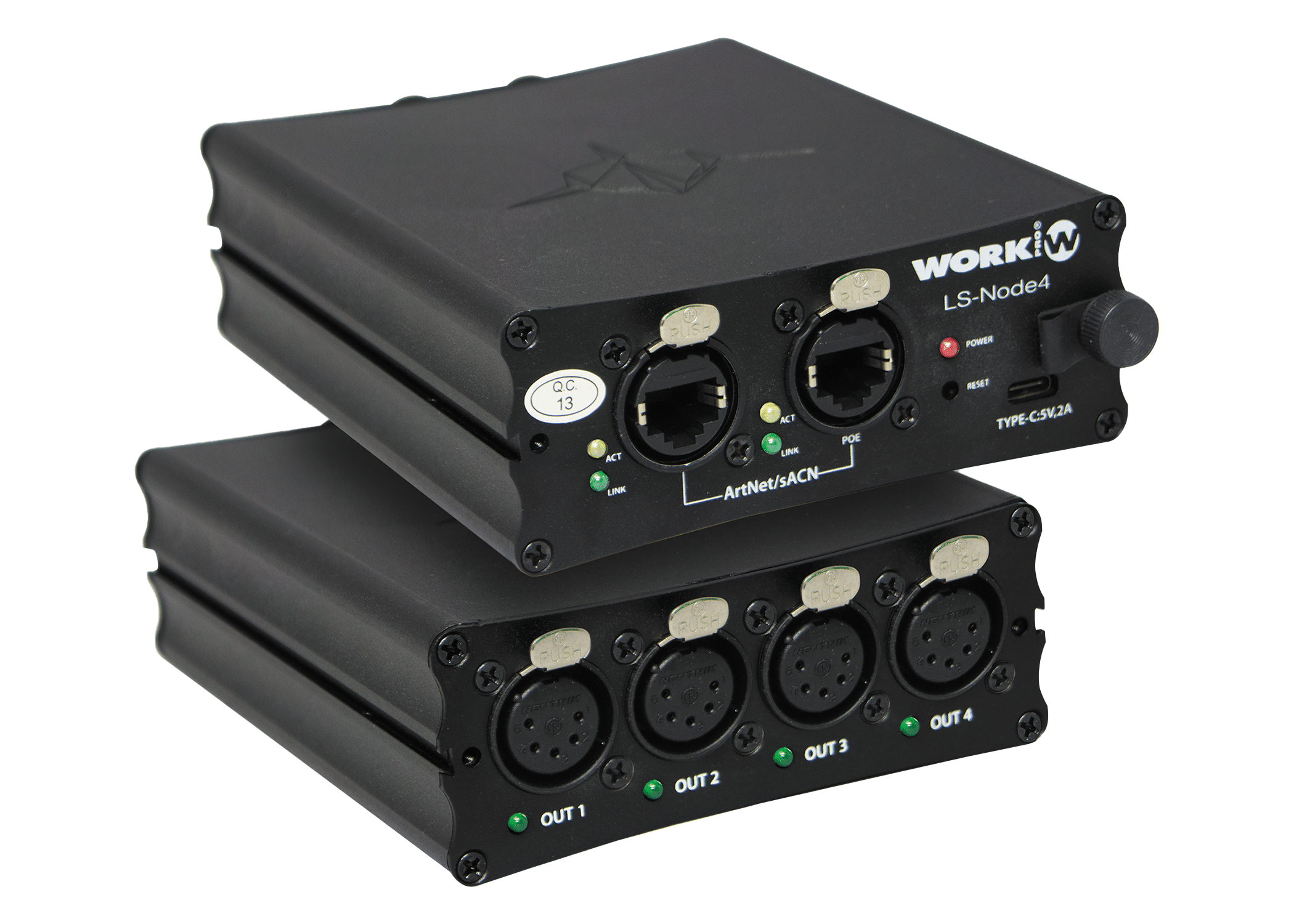

LightShark LS-Nodes

The LS-Node series is the new RDM/DMX streaming range from WORK PRO that supports industry standards ArtNet & sACN. They feature from 1 up to 4 DMX universes, with 3 different models: LS-Node1, LS-Node2 & LS-Node4, each of which adds its respective number of freely configurable DMX universes.

These small LS-Node products are available in the same quarter-rack physical format as the original LS-Core and are powered via a compact USB-C connector or by PoE, which is helpful when used in installations where they may be rack-mounted with an optional LS-AR 19 rack chassis.

All LS-Node products come with an integrated Ethernet switch with 2 ports and are multiprotocol, supporting the industry standards ArtNet and sACN.

LS-Node is fully compatible with LightShark consoles and can also be configured via a webserver, through which users can set up parameters like DMX frame rate (from 15 to 40 frames/s), firmware upgrades, independent RDM/DMX ports routing (any universe can be routed to any of the RDM/DMX ports independently) and modes of use.

With ArtNet/RDM compatibility, LS-Node allows configuration, status monitoring and management of remote devices from lighting consoles.

OPTIONS:

• Node 1 (1 Universe)
• Node 2 (2 Universes)
• Node 4 (4 Universes)
