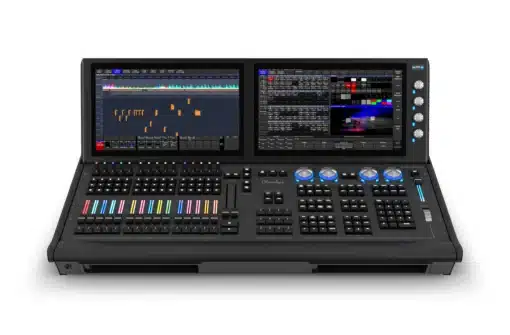

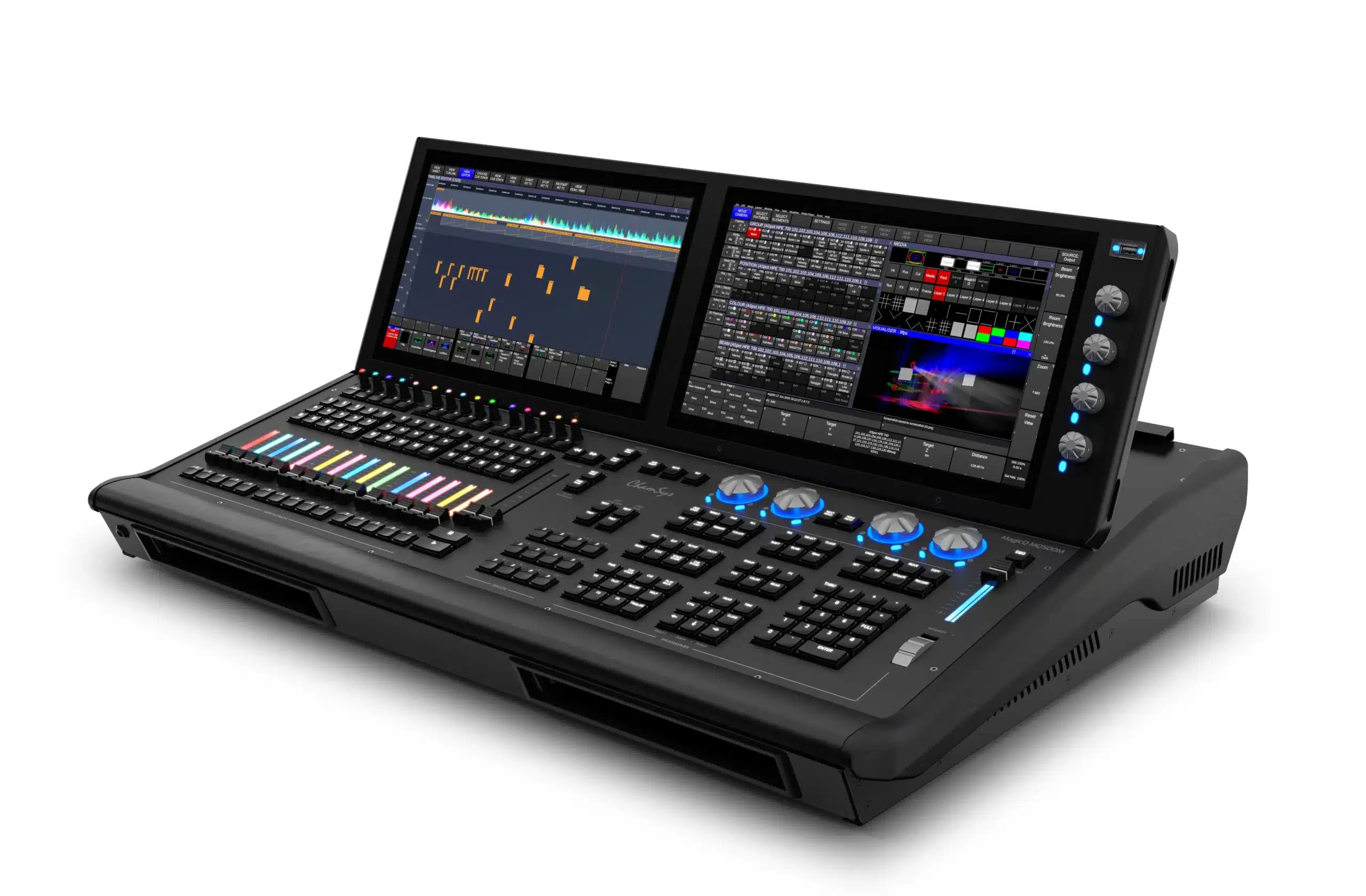

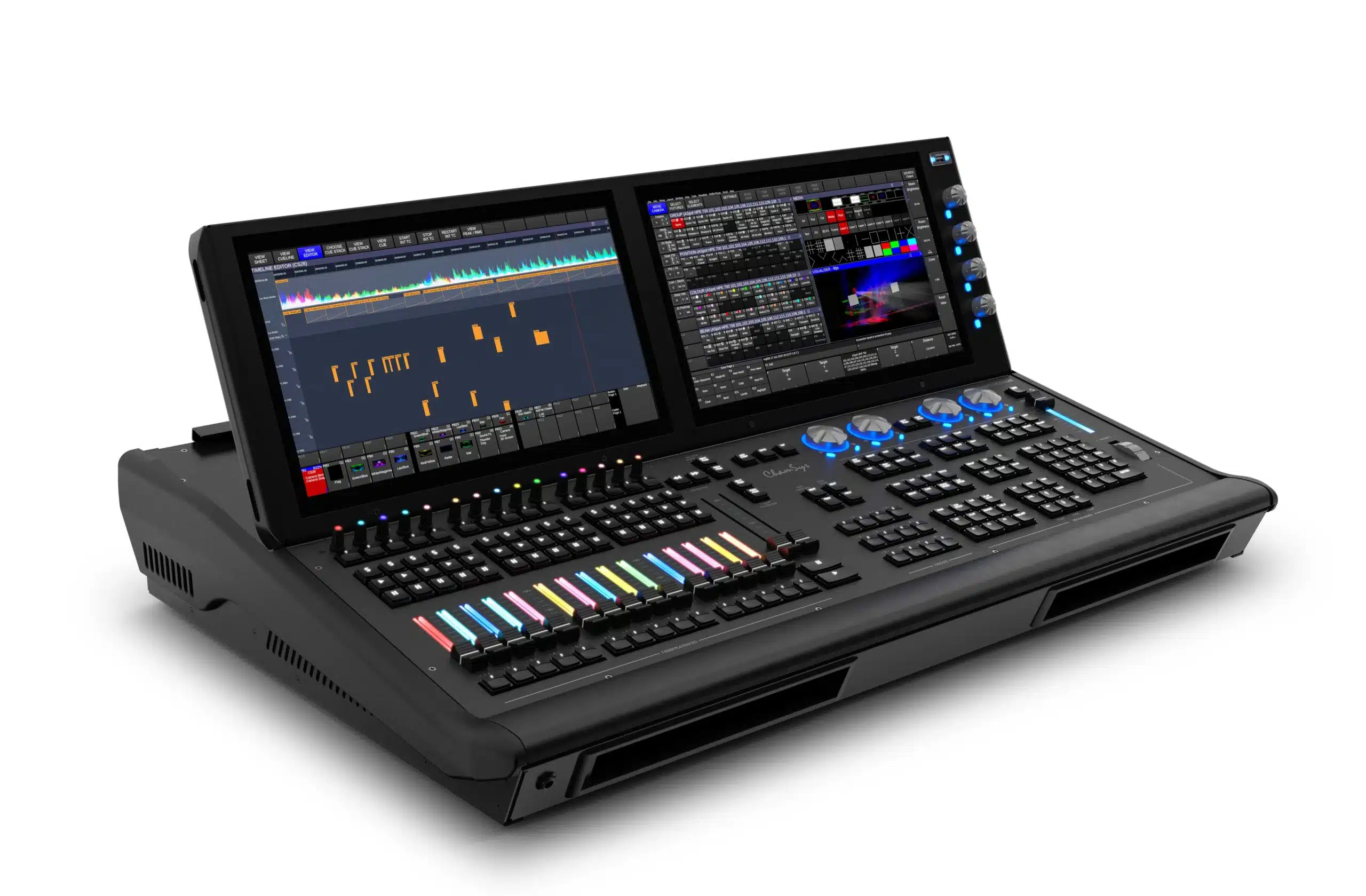

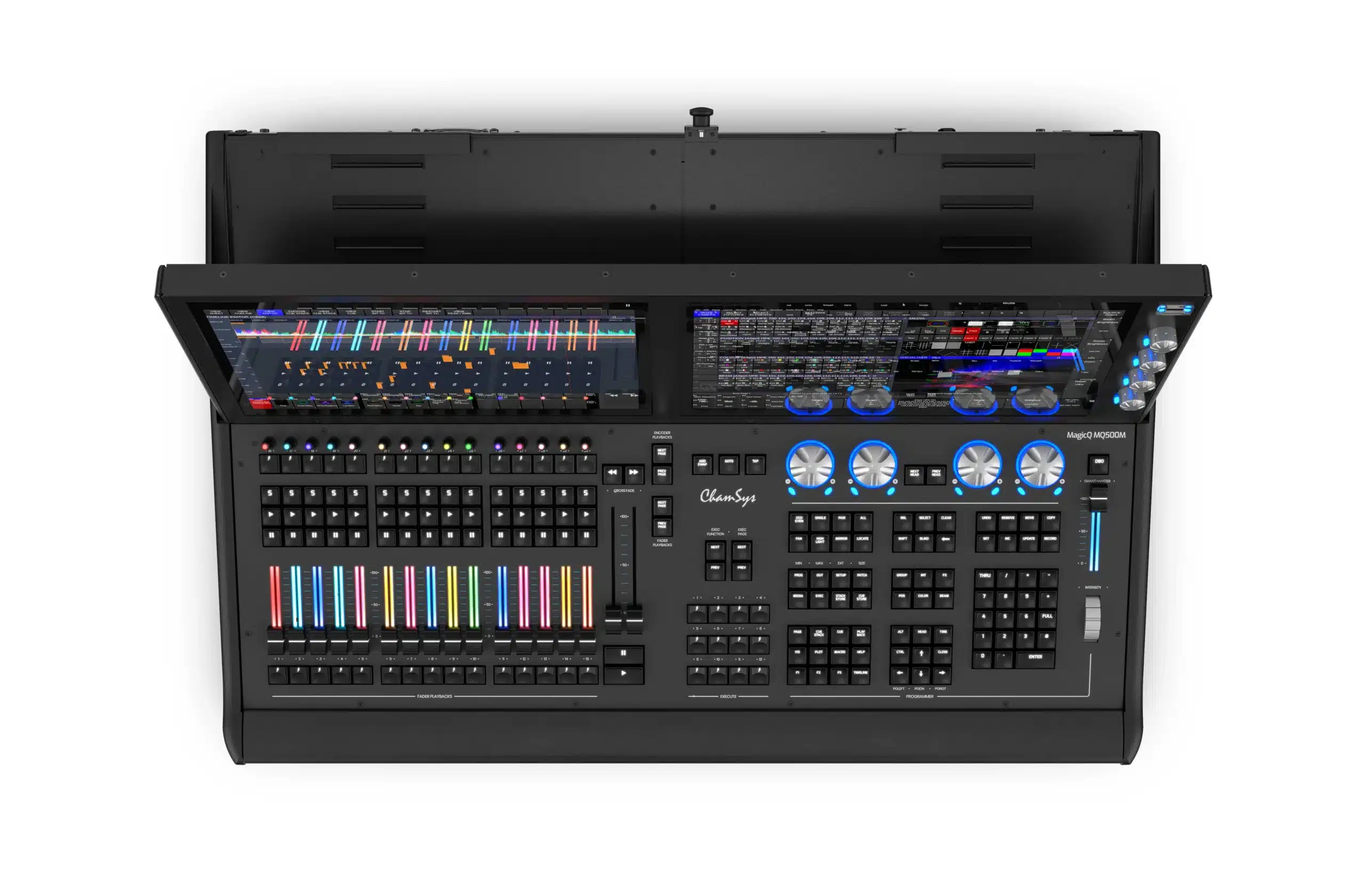

MagicQ MQ500 Stadium Console

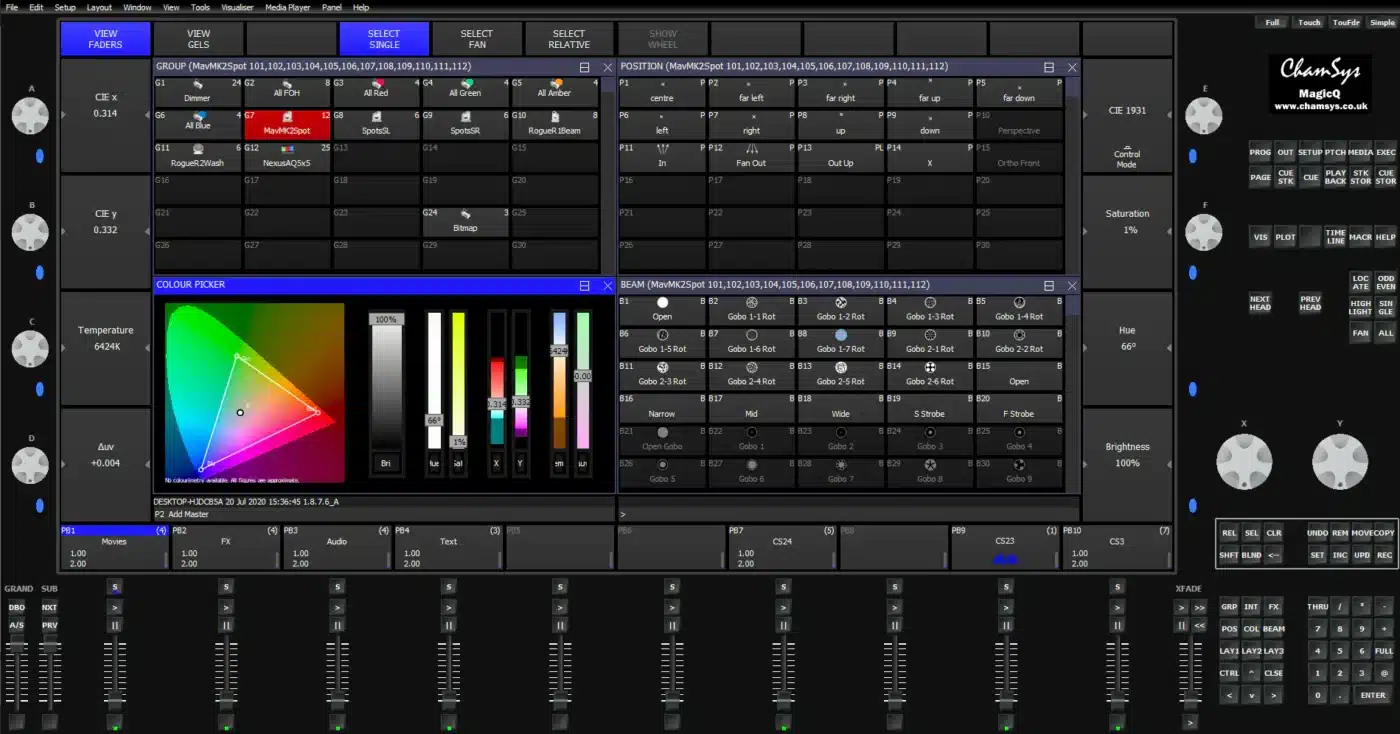

ChamSys’ MagicQ MQ500 Stadium is their largest lighting control console. The MQ500 offers 200 Universes of control without relying on any external processing! It offers an incredibly intuitive operating system creating and running complex light shows. MagicQ consoles include the award winning MagicVis 3D visualizer with high quality beam and gobo rendering for remotely designing a show accurately. MQ500 Stadium features dual HD resolution multi touch 15” displays with adjustable viewing angle and multi touch gesture support. It has the largest number of playbacks in the ChamSys family, with 42 playbacks made up of both fader and executor playbacks for live busking. This includes 15 full faders, 15 executable playbacks, and a dedicated section of 12 multipurpose Macro/Execute/Playbacks/Palette keys.

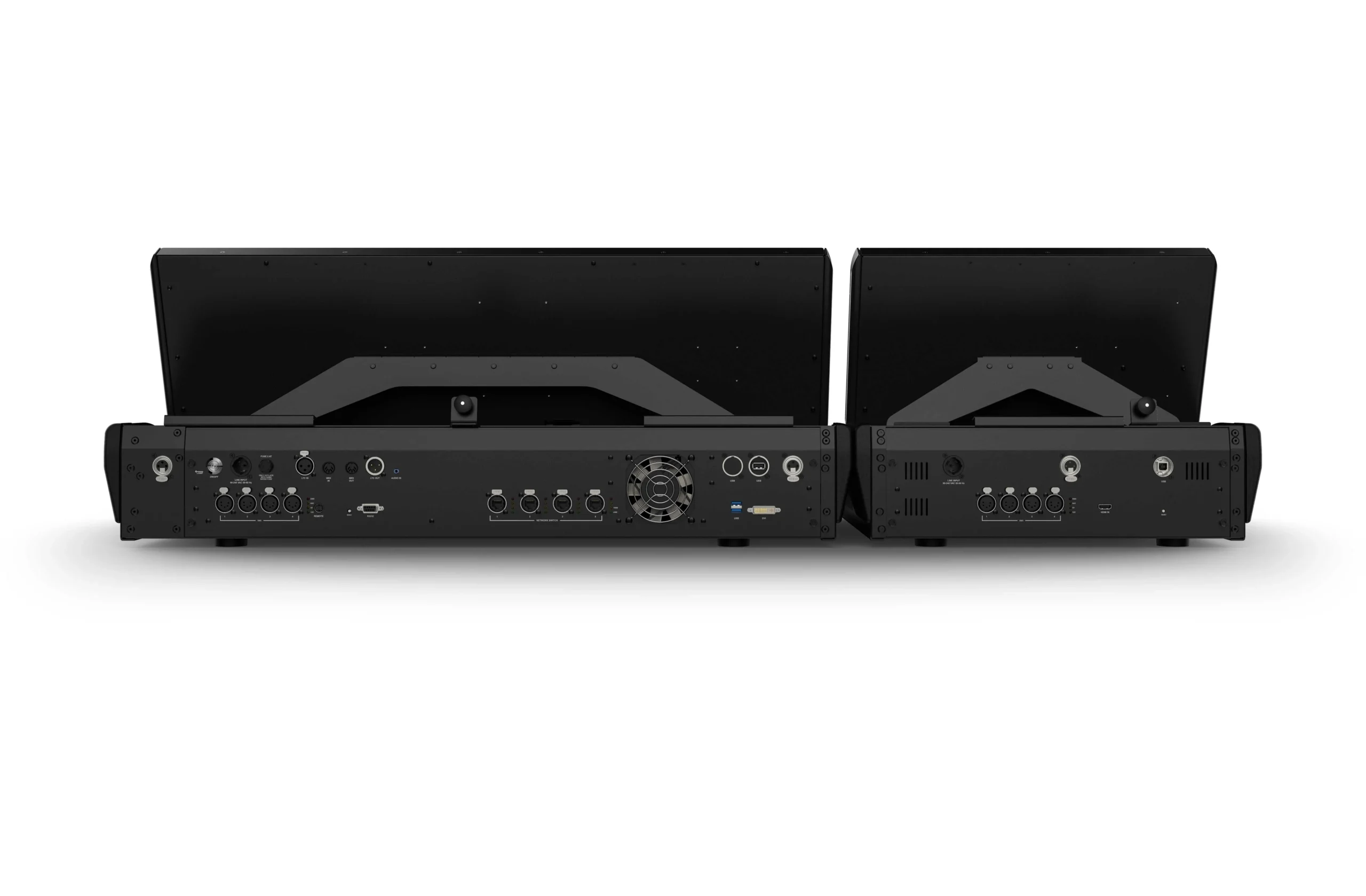

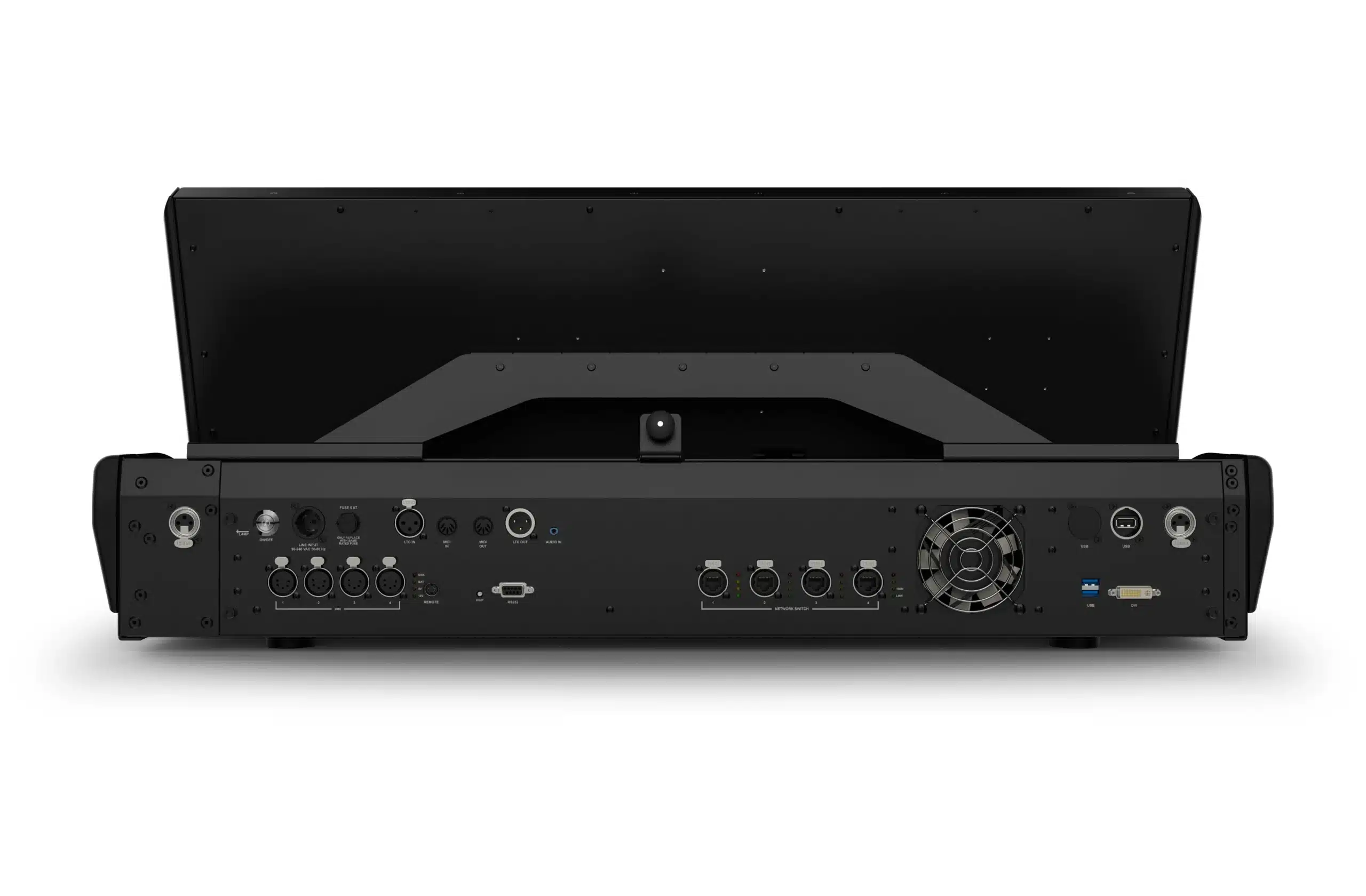

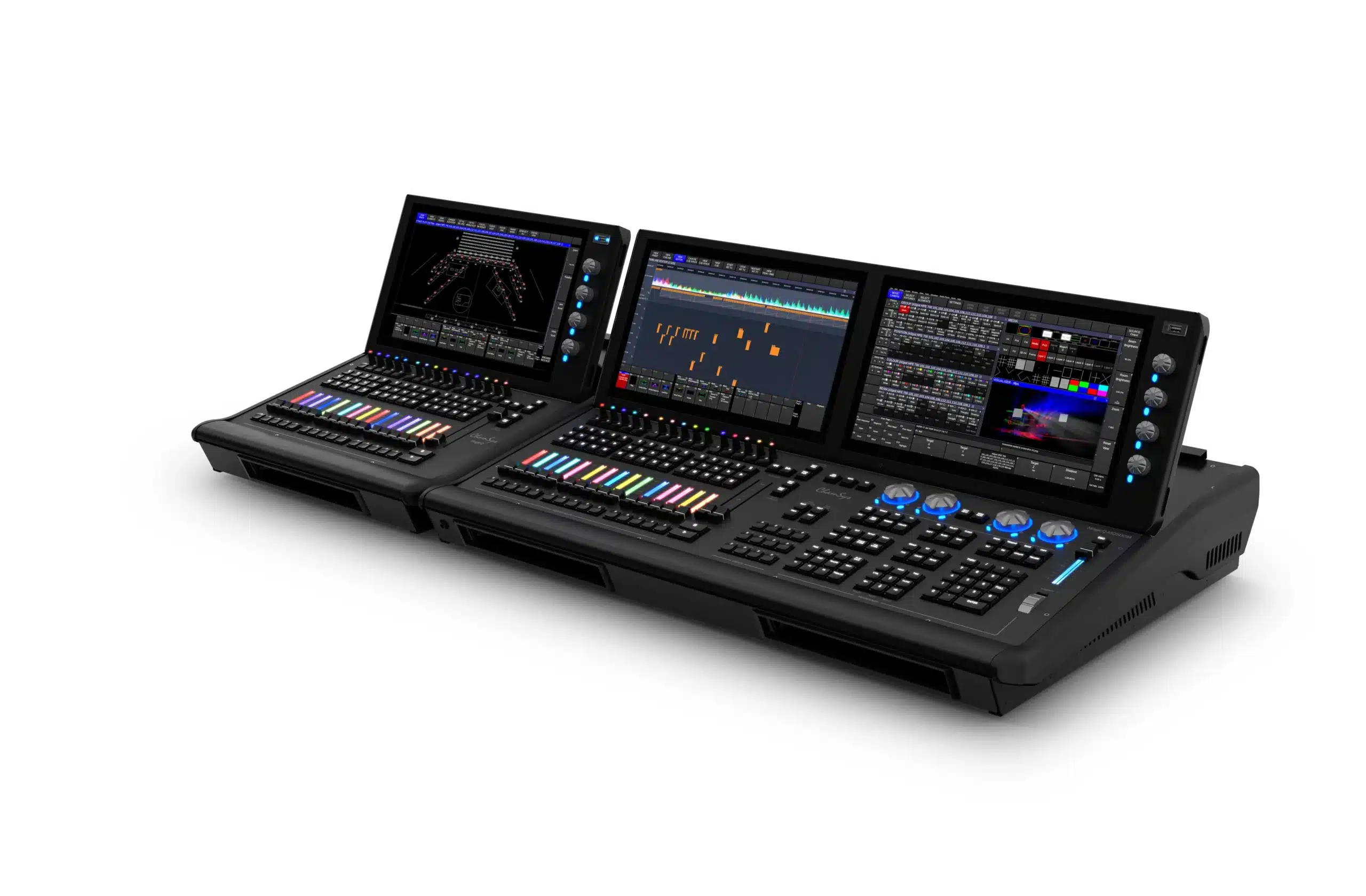

The MQ500 features 4 built-in DMX ports, 4 port ethernet switches, and expanded control through an optional control Wing.

Key Features

• 200 universes direct from the console (licensed above 64)
• Playback section with 30 Playbacks (15 full fader, 15 flash)
• 12 multi purpose Macro/Executes/Playbacks

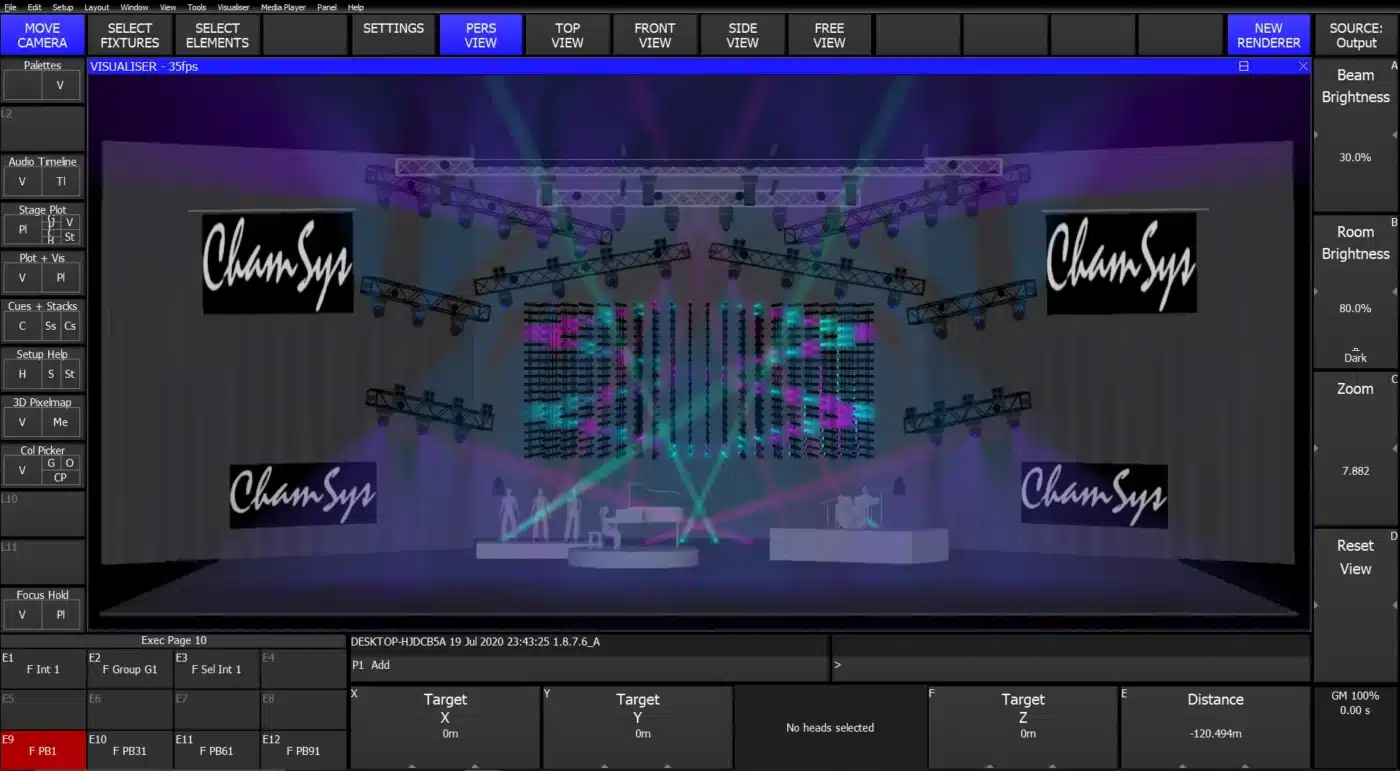

• Inbuilt MagicVis Visualiser with full rendering of beams and gobos
• Inbuilt MagicHD Media Player for pixel mapping onto 200 universes
• Dual Inbuilt 15″ Multi touch displays
• Full HD 1920×1080 resolution
• Adjustable display viewing angle
• RGB function indication for every Playback
• Programming section with Intensity Wheel and 100mm crossfaders for Theatre

Specifications

• Universes: 200 (64 standard)
• Channels: 102,400 (32,768 standard)
• Number of fixtures: Up to 102,400 (32,768 standard)
• Cues: 5000
• Cue stacks: 2000
• Palettes: 4096
• Groups: 5000
• Numbers of shows: Virtually unlimited
• Media server support: 50 (each different content)
• Encoders: 8
• Faders: 18
• Direct DMX ports: 4
• Network ports: 4
• External monitor: Up to 1920×1200 – DVI-D
• USB ports: 5 (including 1 on front panel for easy access)
• Audio input (1 channel, 7 band)
• MIDI Notes in/out
• LTC in/out
• Inbuilt UPS
• Variable Speed Fan
• Dual Colour Desk lamp
• Illuminated soft buttons
• Dust cover
• Power input: 110 to 240 VAC
• Width: 860mm
• Depth: 585mm
• Height: 90mm high at front, 175mm high at rear (screens stored)
• Weight: 28KG

Flightcase Dimensions

• Width: 940mm (37 inches)
• Depth: 670mm (26.4 inches)
• Height: 290mm (11.4 inches)
• Weight (console in flightcase): 50KG
