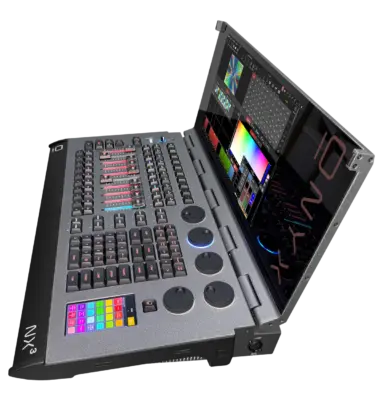

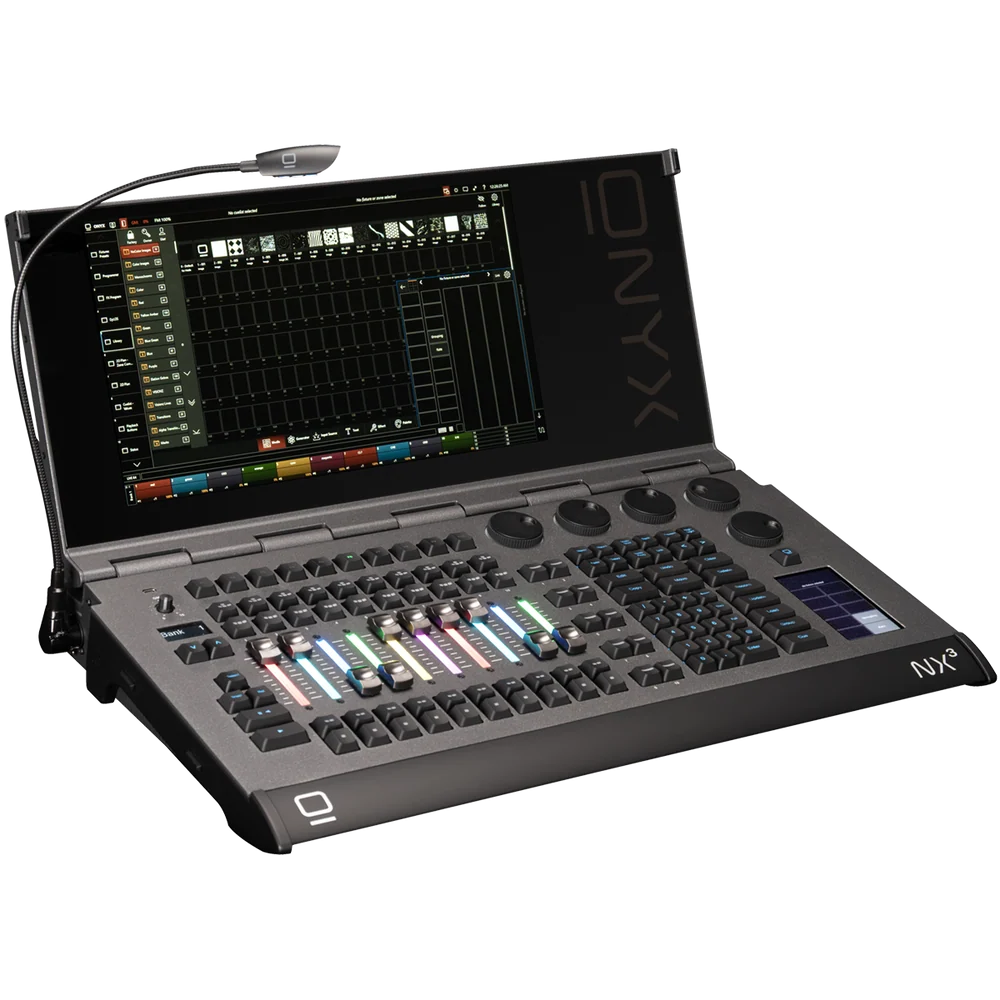

Obsidian NX3
$11,990.00
The NX3 lighting console was designed around how programmers actually work. With intuitive control, comfortable ergonomics, and professional scalability, the NX3 supports everything from small shows to complex productions.
The NX3 UI makes programming intuitive from the moment you sit down. Hardware layouts align directly with on-screen workflows, while motorized faders provide tactile feedback that reflects active playbacks in real time. Customizable RGB-backlit keys, faders, and encoders deliver clear visual status, with color-coded feedback that minimizes guesswork and keeps programmers moving quickly and confidently.
Designed to feel precise and comfortable over long programming sessions, the NX3 features tuned key responses, stable controls, and refined tactile feedback. This supports faster input with less fatigue. Premium materials and quieter operation help programmers stay focused behind the desk, while the low-profile form factor is optimized for real-world setups, encouraging a more natural working posture.
The NX3 delivers show-ready performance in a compact footprint and is stress-tested for rock-solid reliability under real show conditions. As demands increase, the NX3 expands seamlessly through additional control surfaces, displays, and networking—supporting everything from smaller shows to complex productions on a single platform.
Key Features
- Compact and road-ready
- Fast, intuitive programming workflow powered by ONYX
- Built for show-critical reliability
- Comfortable ergonomics for long sessions
- 64 Universes embedded processing (no external hardware required)

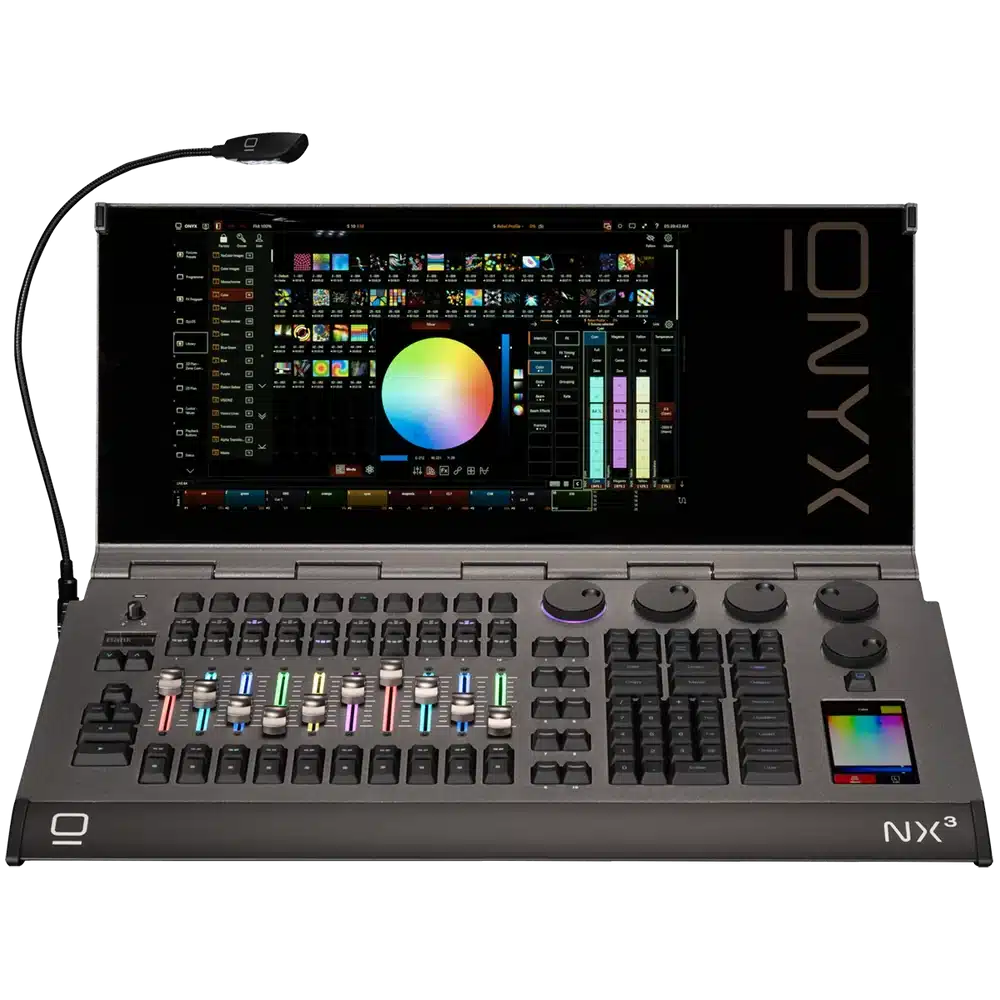

- Integrated folding 17.3″ Full HD multi-touch display
- 10x motorized faders w/ RGB backlight
- 50x Optical Playback Buttons w/ RGB Backlight
- Internal 4.5″ parameter touchscreen
Specifications
Hardware Interface:
Playback:
- RGB backlighting on all controls
- 10x 60mm Motorized Faders
- 50x Optical Buttons
- Master Cuelist Controls
- Rotary Grand Master w/ push
- Bank Selection Keys
- OLED Bank Indicator Display
Programmer:
- RGB backlighting on all controls
- 5x High-resolution rotary encoders w/ push
- Full numerical keypad
- Core Command Keys
- Highlight/Preview/Next/Last Keys
- 10x User-assignable Function Keys (F-Key)
- ONYX Command Shift Key
Displays:
- Main Display: 17.3″ Full HD Multi-Touch
- Auxiliary: 4.5″ Parameter Touch Display
- External Displays: Up to 3x 4K external displays w/ touch functionality
Connections:
Power:
- Locking Power input w/ passthrough
Network:
- 2x 2.5Gb RJ45
- 2x 1Gb Locking RJ45
USB:
- 2x USB-A 2.0
- 2x USB-A 3.1 (10Gb)
- 1x USB-C 3.0 (Front Panel)
- 2x USB-C 4.0 (w/ display support)
External Display:
- 3x DisplayPort
Audio:
- 1x 1/4″ (6.35mm) Audio Input
- 1x 1/4″ (6.35mm) Audio Output
*Audio Input can be used to receive LTC/SMPTE Timecode
DMX:
- 4x DMX (I/O) 5-Pin locking XLR w/ RDM
MISC:
- 2x LED Desk lamp 4-Pin Locking XLR Port
Processing:
Licensing:
- Embedded 64 Universe ONYX License
- 5 DYLOS Zones
- ONYX OS
- Timecode
- OSC
- MIDI
Processing:
- Universes: 64
- Channels: 32,768
- Fixtures: 32,768
Protocols:
- ONYX X-NET
- DMX512
- RDM
- sACN
- Art-Net
- OSC
- Telnet
- CITP
- NDI®
Physical:
Dimensions:
- Depth: 14.5″ (367mm)
- Width: 24.8″ (630mm)

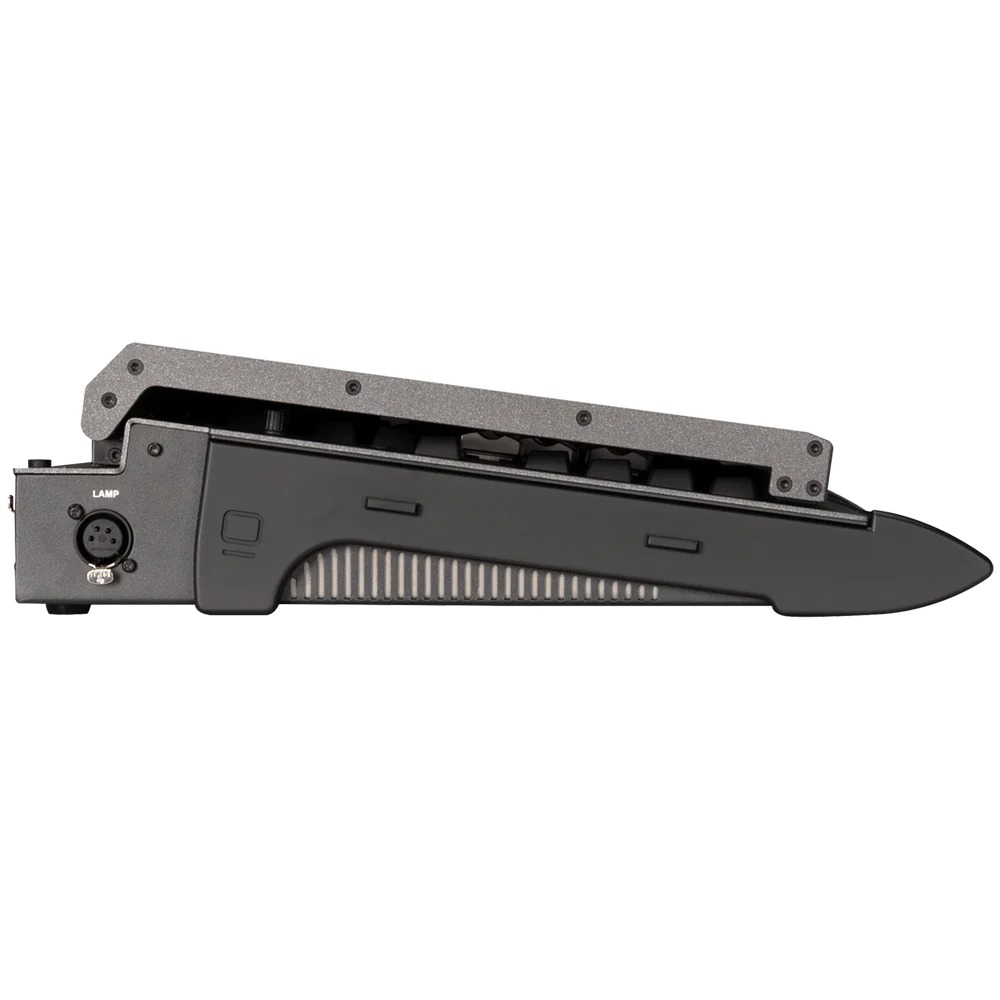

- Height (Closed): 4.0″ (102mm)
- Height (Open): 13.6″ (350mm)
- Weight: 30.4lb (13.8kg)
Electrical:
- Input Voltage Range: 100–240V nominal
- Frequency: 50/60Hz
- Max Power Draw: 200W
Ordering:
SKU:
- US: NX3064
- EU: 1330000016
