Ellipsoidal Video Illustration
Why Consider Our Ellipsoidal?
When fixtures are shinning and doing their job, you take no notice of which brand they are, but whom they are illuminating. In the same way, we desired to create a fixture that makes you not think of us, but allows you to pull focus to what you are doing. It was our desire to bring to the market a more affordable Ellipsoidal for churches, schools, and theaters. They create a warm white output that can be framed and shaped to direct focus. They are bright, and while their body and optics will not compare to the feel of fixtures that cost $1,400 each, we think your wallet will excuse that difference.

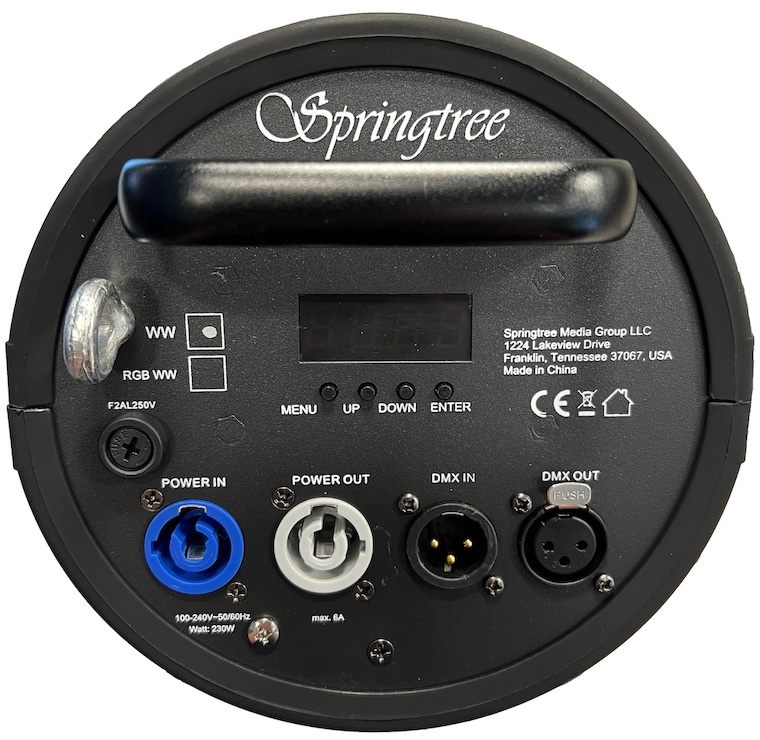

*The unit featured in the video is the previous HD200 model. The new model is the HD202, which features a new back, as seen in the product images.
HD202WW - View Manual HD200WW - View Old ManualEllipsoidal Specifications
Optical
- Light Source: 200Watt Warm White COB LED
- Lens Options: 19°, 26°, 36°
- Lumens: 18,000
- Color Temperature: 3200K
Power
- Power Supply: AC 120V, 50/60Hz
- Power Consumption: Max. 200W
Operating Modes
- DMX (1ch, 2ch, 4ch)
- Master-Slave
- Stand Alone
Connections
- 3-pin DMX In/Out
- Linking Power Cord In/Out
Included
- 1x Natural Warm White LED Ellipsoidal
- 1x Power Cord
- 1x Gobo Holder (for size B Gobos)
- 1x Gel Frame
Dimensions & Weight
- L24.25″ x W8.25″ x H6.5″
- 13 lbs
Chris Gill –
Best ellipsoidal for the price! I bought two of these to replace some old ETC Source 4 Ellipsoidals in our church that had died. The optics are not quite as good as those old fixtures, but these are much brighter and way cheaper than the lower end ADJ and Chauvet DJ ellipsoidals.
The ONLY reason these didn’t get 5 stars are the framing shutters. At lest one of the blades on each fixture won’t hold their position. It’s like the fitting isn’t quite the right size and is too loose.
Other than the framing shutters (which we’ve found a workaround for) this is a great light. We plan on buying several more of these to use on our main stage!
Gary B. –
You can’t beat the price! The optics aren’t as good as Chauvet’s Ovation series, but I wouldn’t expect them to be. I haven’t used them with gobos, but they are a great, frameable front wash!
