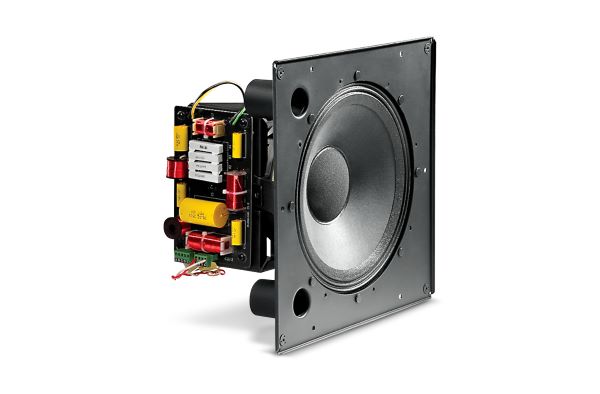

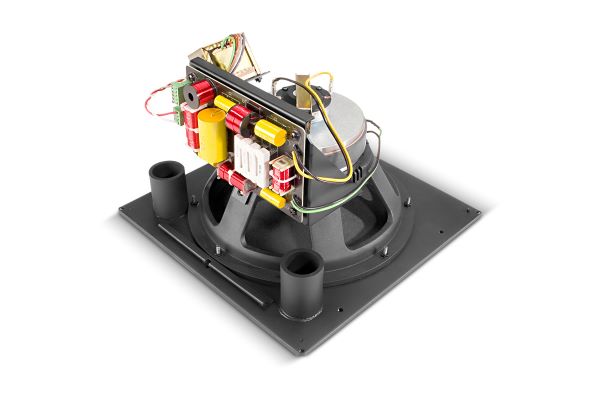

High-output 12 in. Coaxial Ceiling Loudspeaker
The 322CT delivers exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.
Features
- Consistent 90° broadband pattern control.
- Components
Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
• Medium-format compression driver. - Extraordinary clarity for speech and vocals with extended frequency response for music.
- Power handling of 400 Watts with high sensitivity provides high SPL capability.
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
Specifications
| Frequency Range (-10 dB) | 32 Hz – 20 kHz |
| Long-Term System Power Rating | 400 W (1600 W peak), 2 hrs250 W (1000 W peak), 100 hrs |
| Taps | 70V: 100W, 50W, 25W, & 12.5W100V: 100W, 50W & 25W |
| Frequency Response (±3 dB) | 48 Hz – 19 kHz |
| Coverage Pattern | 90° conical, broadband (Avg. 1k – 16kHz) |
| Directivity Factor (Q) | 9 (1k – 16kHz) |
| Directivity Index (DI) | 9.5dB (1k – 16kHz) |
| Sensitivity ([email protected] 1m) | 95 dB measured half-space |
| Maximum SPL | 121 dB cont ave (124 dB peak) |
| Dimensions (H x W x D) | 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in) |
