Background/ Foreground Ceiling Loudspeakers

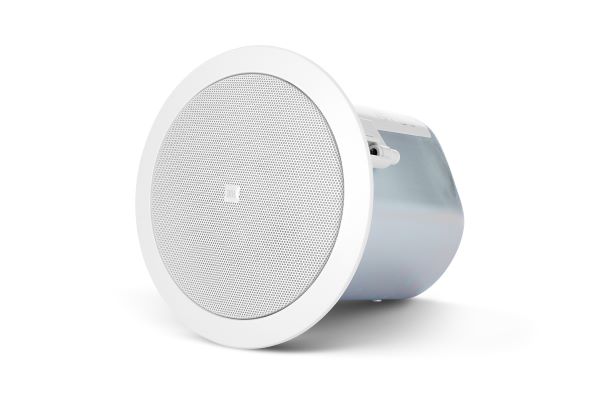

The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
- High power, wide frequency response and low distortion for high sound level capability.
- Wide coverage allows fewer speakers, reducing the cost of
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
|Frequency Range||80 Hz – 20 kHz|
|Power Capacity||80 W Continuous Program Power; 40 W Continuous Pink Noise|
|Transformer Taps||70 V: 30 W, 15 W, 7.5 W & 3.7 W taps100 V: 30 W, 15 W, & 7.5 W taps|
|Nominal Coverage Angle||130° conical coverage|
|Directivity Factor (Q)||2.4 dB averaged 500 Hz to 4 kHz|
|Directivity Index (DI)||3.8 dB averaged 500 Hz to 4 kHz|
|Rated Maximum SPL||102 dB @ 1 m (3.3 ft)|
|Nominal Impedance||16 ohms (Min Z 16.1 ohms @ 320 Hz)|
