Spatial Flats 30Watts | Lo-Vo
From $99.95

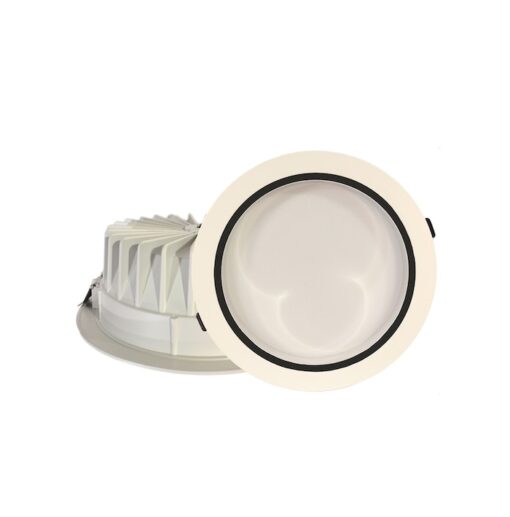

Spatial Flats are recessed LED fixtures that are DMX controllable. These low-voltage (Lo-Vo) fixtures deliver beautifully smooth dimming, powerful output, huge energy savings, and exceptional value. Spatial Flats work with your choice of Lo-Vo power driver for power and control.
Options
- RGBWW LED Engine
- Warm White LED Engine
- Your Choice of Lo-Vo Power Driver
Features
- Low Profile
- Cool To The Touch
- DMX Controllable
- Easy To Install
- Low-Voltage
- Fixtures Are Completely Silent
- Spring Tabs For Mounting
- Beautiful Dimming
- Powerfully Bright
30Watt vs 50Watt
| 30Watt | 50Watt | |
| Recommended Height | 7’ -14’ | 8′-20′ |
| Recommended Spacing | 6’-8’ Centers | 6’-8’ Centers |
| Fixture Diameter | 8″ | 10″ |
Pricing & Power Drivers
| 30Watt Model | 50Watt Model | |
| Warm White LEDs | $99.95 | $129.95 |
| RGBWW LEDs | $109.95 | $139.95 |
| Power Drivers | ||
| DMX602XE Driver | $649.95
(Powers 16 Standard Spatial Flats) |
$649.95
(Powers 12 Larger Spatial Flats) |
| DMX1202XE Driver | $1,169.95
(Powers 32 Standard Spatial Flats) |
$1,169.95
(Powers 24 Larger Spatial Flats) |
| DMX1802XE Driver | $1,499.95
(Powers 48 Standard Spatial Flats) |
$1,499.95
(Powers 28 Larger Spatial Flats) |
When you purchase Spatial Flats, you’re not just acquiring an exceptional light—you’re unlocking the entire Lo-Vo Architectural Lighting System. This innovative system allows you to integrate additional Lo-Vo DMX-controllable LED fixtures onto a single Power Driver, including mini spotlights, LED tape, LED Spatial Bars, and LED modules for custom retrofits.
Specifications
Optical
Warm White
- Light Source: 30Watt Warm White LED
- Color Temperature: 3000K
- Lumens: 1800
- Beam Angle: 100°
RGBWW
- Light Source: 30Watt RGBWW LED
- Color Temperature: 5500K when all LEDs are at 100%
- Lumens: 1260
- Beam Angle: 100°
Included
- 1x Spatial Flat
- 1x Power Whip (Attached)
Dimension and Weight
- 8″ x 4″
- 1.6 lbs
- Mounting Hole Required: 8” Diameter
Required Cable
- 18/2 Cable for Warm White
- 18/5 Cable (18 is the gauge, and five is how many wires are in the jacket)
*We use 18/6 wire (one extra wire) because it is affordable and in a pull box.
| Led Engine | RGBWW, Warm White |
|---|
2 reviews for Spatial Flats 30Watts | Lo-Vo
Add a review
Related products
Lo-Vo Architectural Lighting
$199.95
Spatial Flats
From $129.95
Lo-Vo Architectural Lighting
From $79.95
Lo-Vo Architectural Lighting
$1,499.95
LED House Lighting
From $149.95
Jared R. –
We have a number of customers we have installed these for and they absolutely love them.
Anthony A. –

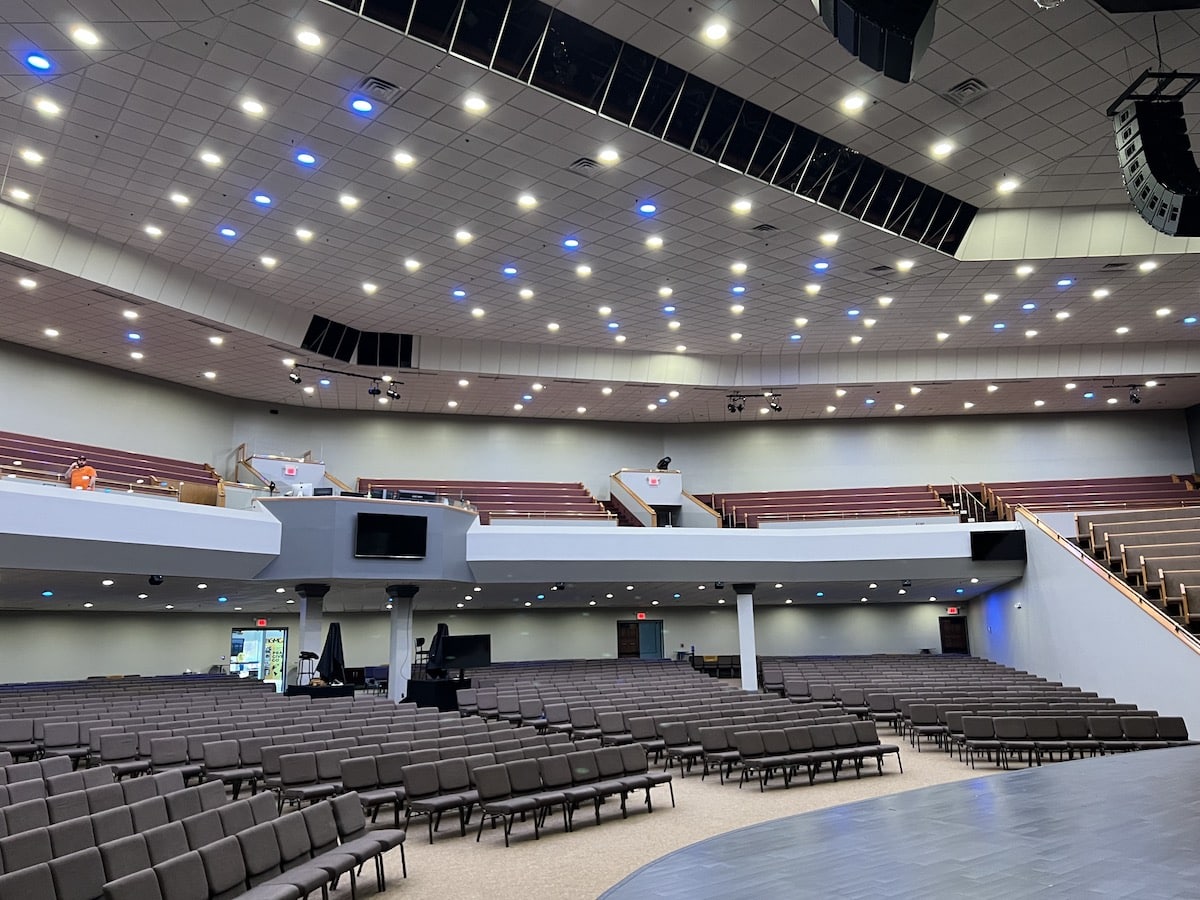

Installed 40 of the RGBW versions 4 years ago and we love them. Solidly built and reliable.
