30Watt

RGBW

$89.95

30Watt

Warm White

$79.95

50Watt

RGBW

$119.95

50Watt

Warm White

$109.95

DMX600

Power Driver

$495.99

DMX1800

Power Driver $1,295.00

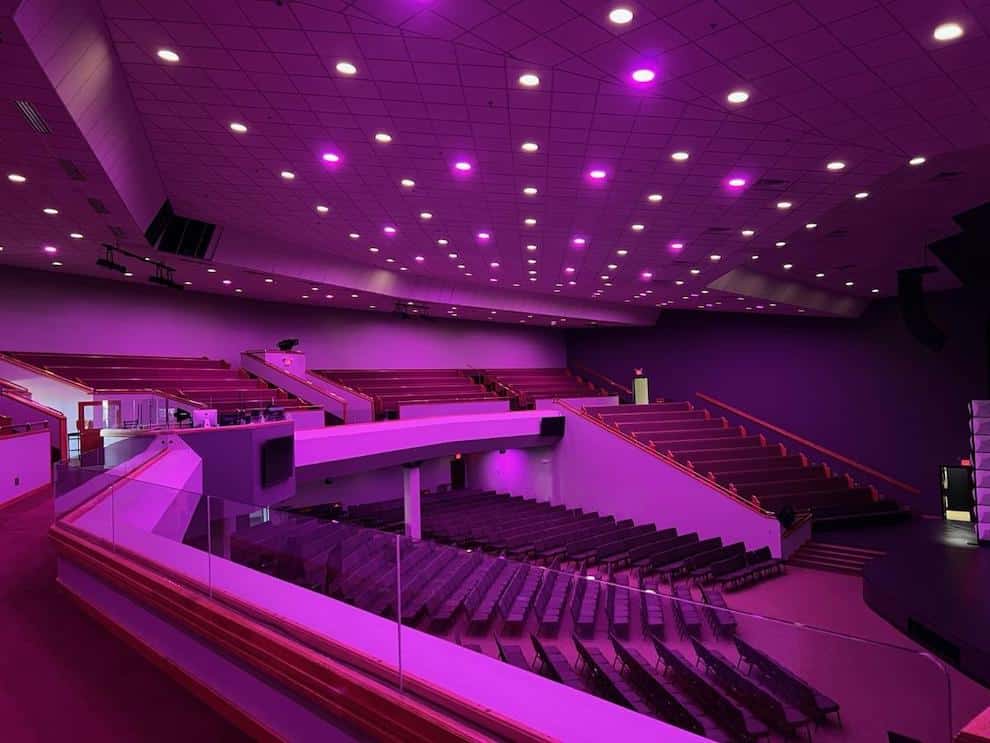

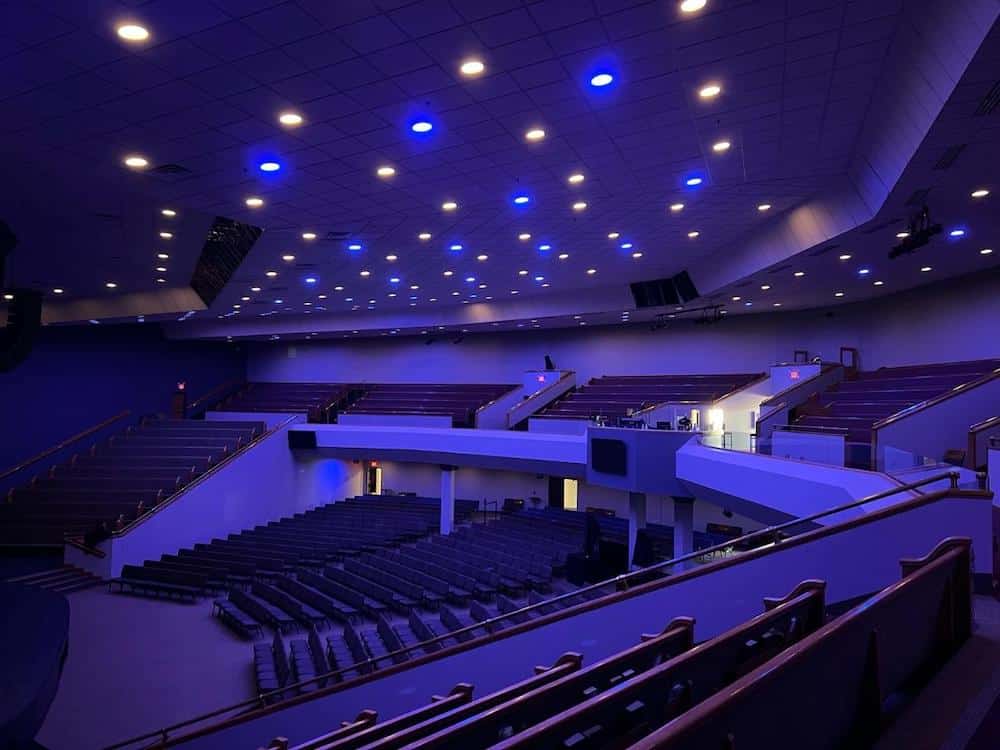

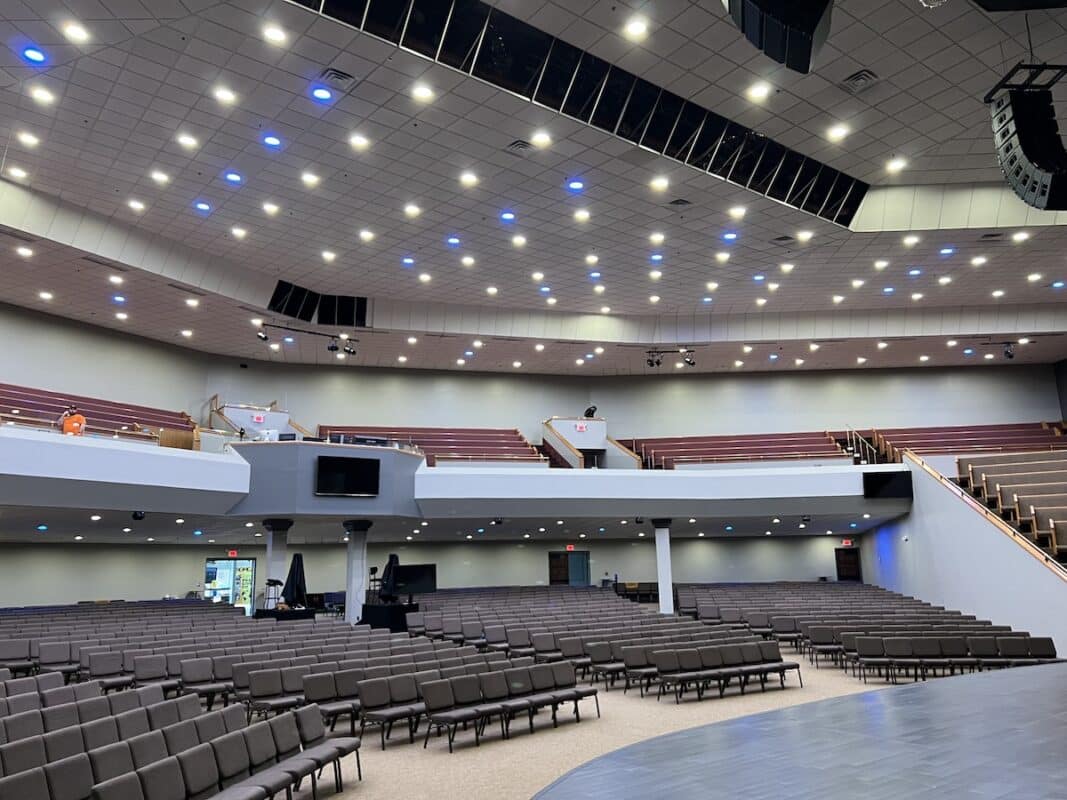

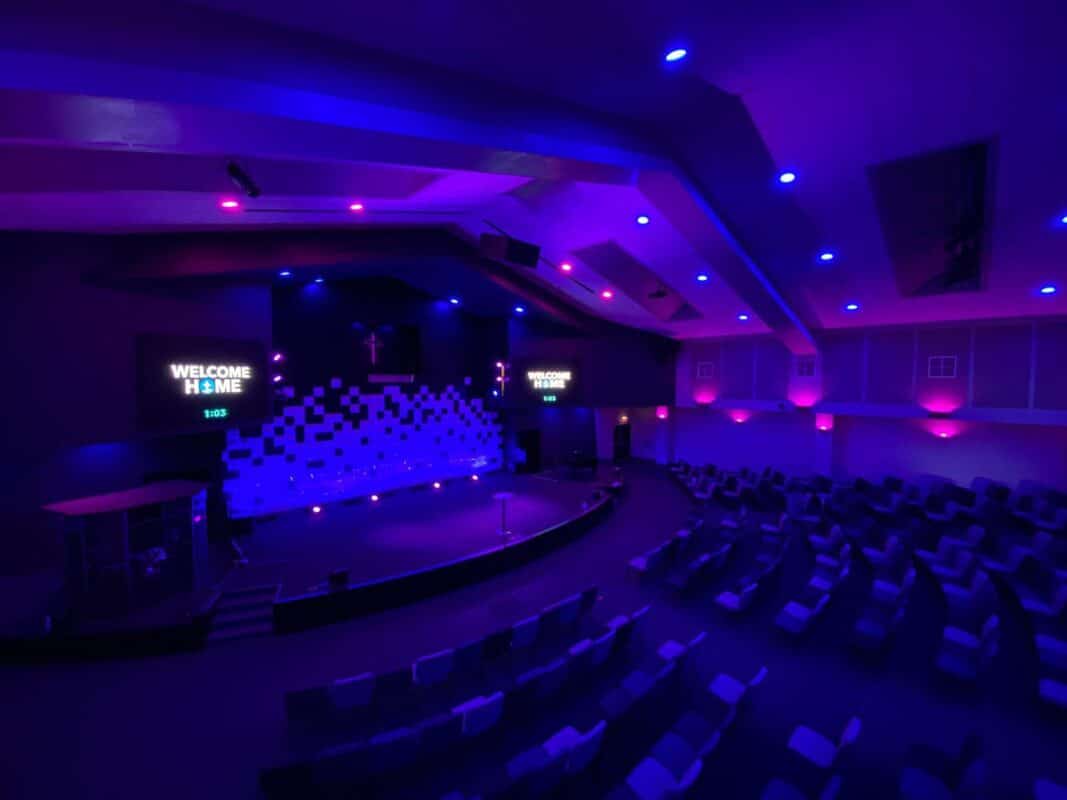

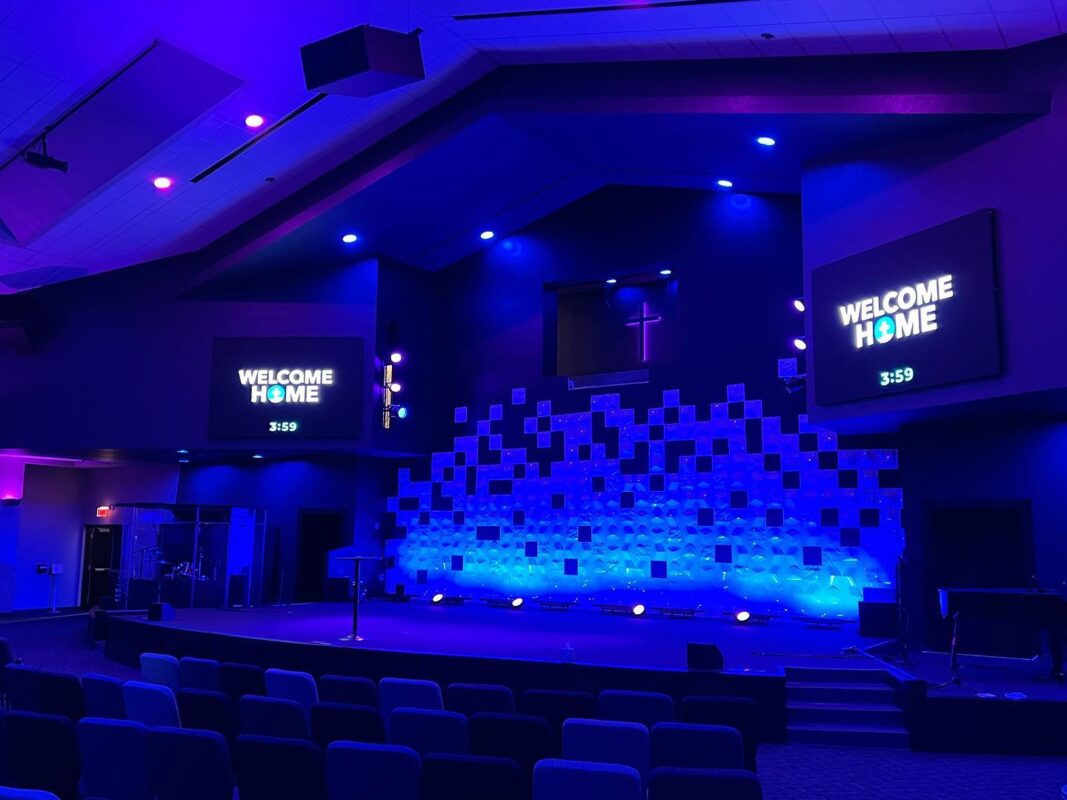

See Them In Action!

Why Did We Create Spatial Flats?

We wanted to create an affordable way to create beautiful LED House Lighting. A solution that was safe and easy to install with smooth dimming and DMX Control.

Low-Voltage Brilliance!

The Spatial Flat’s brilliance lies in its low-voltage. They are safe and easy for any handy person to install themselves. Low-voltage usually means terrible dimming, but we have created the first low-voltage DMX solution with beautiful smooth dimming. They start at just $79.95!

Demo Me!

What They Are

Spatial Flats are DMX Controllable Recessed LED Fixtures that are powered and controlled via a required power driver.

Available Options

  • RGBW or Warm White LED Engine
  • 30Watt or 50Watt Sizes
  • DMX600 or DMX1800 Power Drivers
Click For Features List!
  • Low Profile
  • Cool To The Touch
  • DMX Controllable
  • Easy To Install
  • Safe Low-Voltage
  • Fixtures Are Completely Silent
  • Spring Tabs For Mounting
  • Beautiful Dimming
  • Powerfully Bright

Pick your size

Springtree Spatial Flats are now available in two sizes, the standard 30Watt model, and the new 50Watt model, for use with higher ceilings. The model used in the videos above are the standard 30Watt. You can learn more about the 50Watt model in a video at the bottom of this page.

  30Watt 50Watt
Recommended Height 7’ -14’ 8′-20′
Recommended Spacing 6’-8’ Centers 6’-8’ Centers
Fixture Diameter 8″ 10″

Pick Your Driver

Each Spatial Flat System is powered and controlled by a Power Driver. While the Spatial Flats are completely silent, the drivers are cooled by an audible fan, and should be placed in a utility closet or sound booth. A DMX connection is needed only at the driver, not at each fixture.

There are two options of drivers, the DMX600 (pictured above), and the DMX1800 (pictured below).

Differences Between Power Drivers

The big thing to know is that the DMX1800 controls 3 times as many fixtures, and offers more control options.

  • The DMX600 costs $495.99 & the DMX1800 costs $1,295.00
  • Each DMX600 can run 16 Standard Spatial Flats (30Watts) or 8 Large Spatial Flats (50Watts)
  • Each DMX1800 can run 48 Standard Spatial Flats (30Watts) or 24 Large Spatial Flats (50Watts)
  • Each DMX600 can only run all Warm White or all RGBW fixtures, not a combination of both
  • Each DMX1800 can run a mixture of RGBW and Warm White Spatial Flats, and even other supported low-voltage fixtures
  • DMX600s running RGBWs can only be controlled as a single zone
  • DMX600s running Warm Whites can be controlled as a single or four zones, depending on how you choose to wire them
  • Each port on the DMX1800 can be controlled as an individual zones, and the DMX1800 offers 5 different ways of splitting up the ports into controllable zones
  • The DMX600 includes a standard power cord
  • The DMX1800 does not include a power cord, but needs to be hardwired

Read the manuals to learn more!

Pricing



30Watt Model

50Watt Model

Warm White LEDs

$79.95

$109.95

RGBW LEDs

$89.95

$119.95

Power Drivers



DMX600 Driver

$495.99

(Powers 16 Standard Spatial Flats)

$495.99

(Powers 8 Larger Spatial Flats)

DMX1800 Driver

$1,295.00

(Powers 48 Standard Spatial Flats)

$1,295.00

(Powers 24 Larger Spatial Flats)

Demo Them!

More than photos and photometric data, the best way to know if a Spatial Flat system is right for you is to see them in your facility! The Spatial Flat demo program offers the necessary driver and up to 4 fixtures to try in your space, at a discounted price. If you love them, keep them at the discounted price, and order more here. Not the right fit? Return the demo in 30 days, and receive a full refund. All you have to pay for is the return shipping.

Click To View Demo Pricing
  • Demo Driver Price: $459.95 (Max 1 at this price)
  • Demo Fixture Pricing, Warm White | Standard Size $69.95 (Max 4 at this price)
  • Demo Fixture Pricing, RGBW | Standard Size $79.95 (Max 4 at this price)
  • Demo Fixture Pricing, Warm White | Larger Size  $89.95 (Max 4 at this price)
  • Demo Fixture Pricing, RGBW | Larger Size $99.95 (Max 4 at this price)

Be sure to specify what kind of Spatial Flats you would be interested in demoing. Thanks!

Or Call Us! 615-599-1505

View The Gallery

More Videos!

Additional Resources

View That Installation Guide! View Manual!

Related Products

LED House Lighting

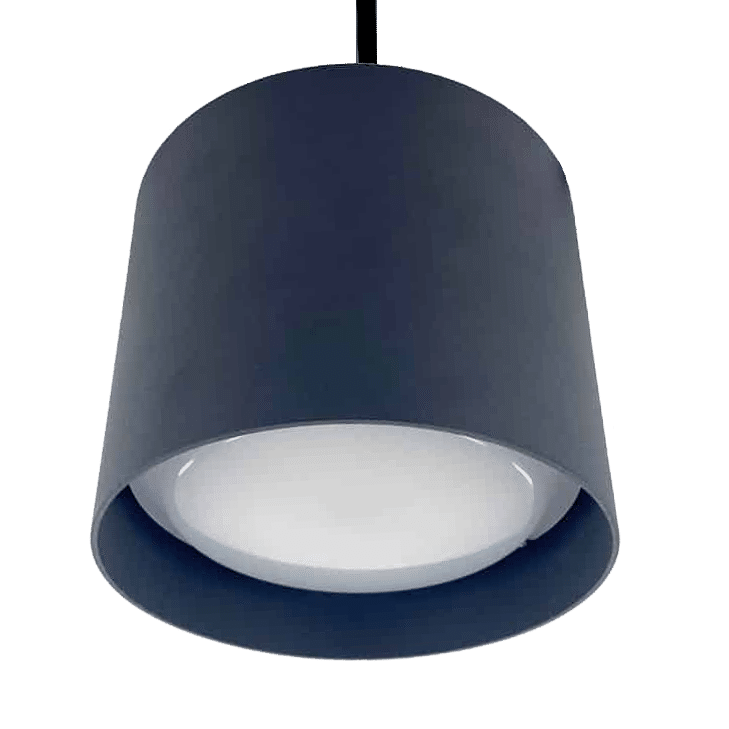

Spatial Flat Pendants

$109.95

LED House Lighting

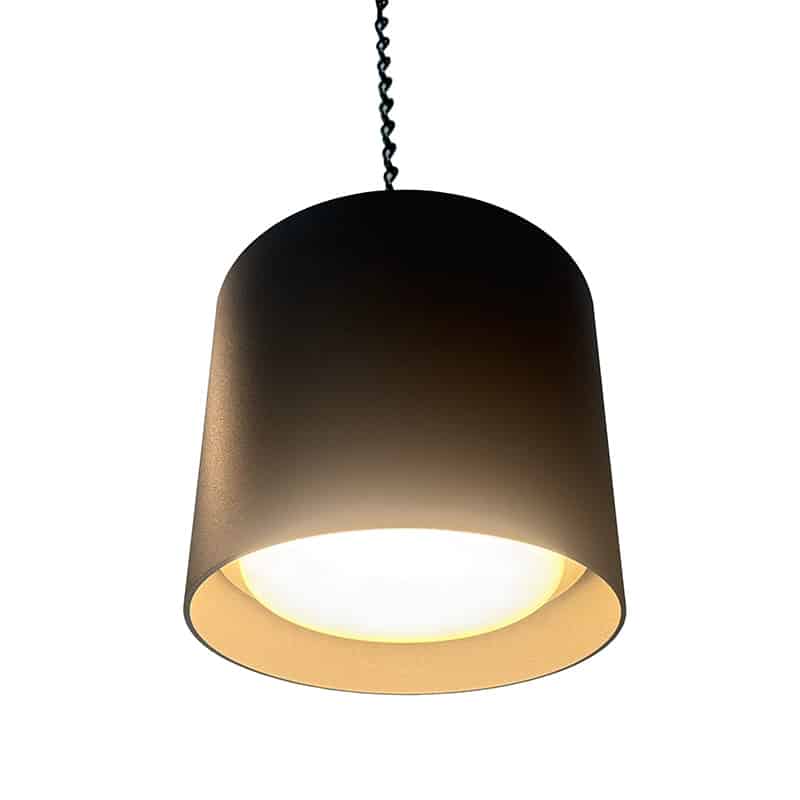

LED Spatial Pendants
