Features
- Low Voltage power (24v, 600w)
- DMX Control
- 2 operating modes (WW and RGBW)
Connections

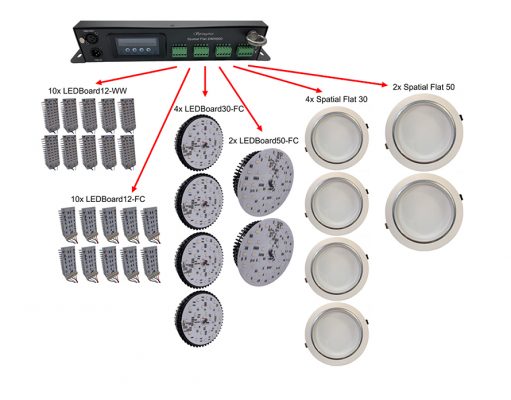

The DMX600 can power up to (16) 30watt Spatial Flats, (8) 50watt Spatial Flats or (40) LEDBoard12 LED Modules. The image below shows the DMX600 used with various combinations of each light. Each of the 4 ports must not exceed 150 watts (120w recommended).
Important Considerations: Each DMX600 can only support Warm White fixtures or Color LEDs, not a combination of the two. If wanting to intermix Warm White and Color LEDs, you need to use multiple DMX600s, a DMX1200, or a DMX1800.
