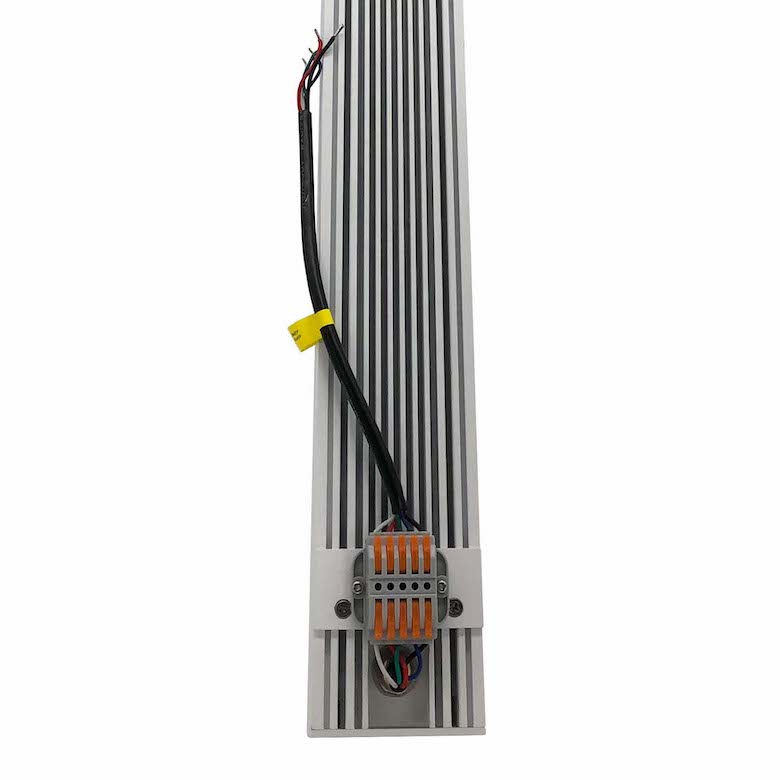

The LED Spatial Bar features a terminal connector and mounting bracket.
Warm White
Optical
Beam Angle: 150 degrees
Lumens: 5000
Color Temperature: 3000K
CRI>90
Lightsource
336x 0.5Watt 2835 Osram LED
Power
24V Constant voltage
Approximate Dimensions
Bar: 39.5″ x 3 ” x 2″
With a flat yoke, the height is 3 1/4″.
With a fully extended yoke, the height is 4 3/8″

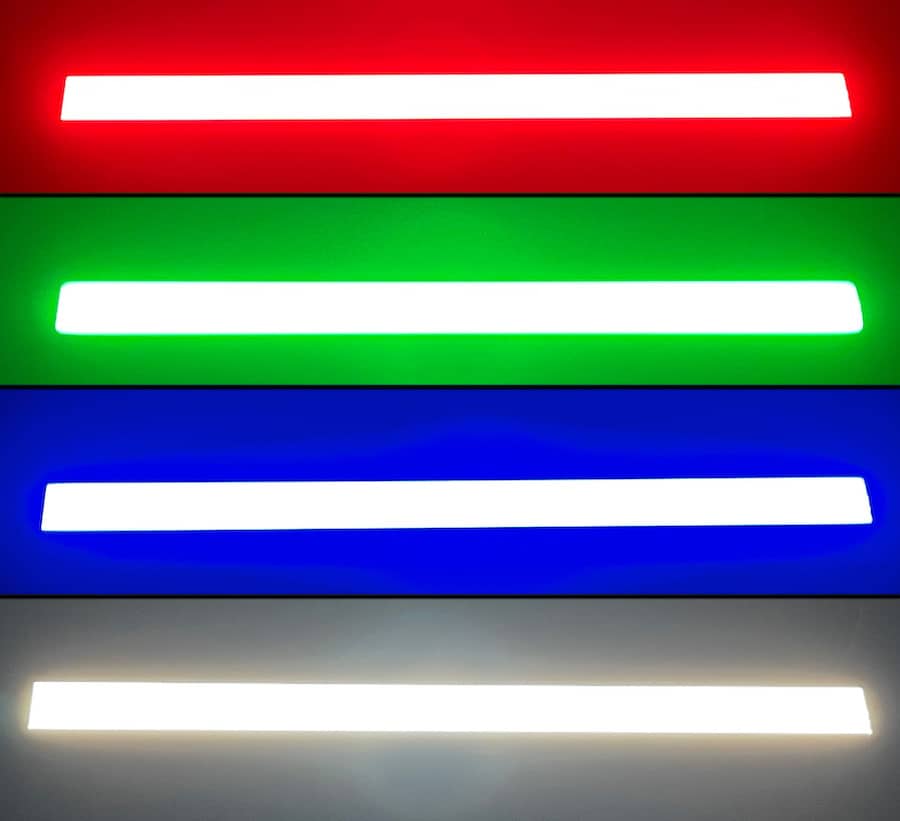

RGBWW
Optical
Beam Angle: 150 degrees
Lumens: 7200
Lightsource
68x 1.5Watt 5050 Epistar RGBA LED
Power
24V Constant voltage
Approximate Dimensions
Bar: 39.5″ x 3 ” x 2″
With a flat yoke, the height is 3 1/4″.
With a fully extended yoke, the height is 4 3/8″
LED Spatial Bars are part of the Lo-Vo line of fixtures. Lo-Vo stands for low-voltage, and it’s an innovative new way to beautifully illuminate your venue in a safe, colorful, flexible, and powerfully bright way with affordable and energy-efficient fixtures.
Lo-Vo fixtures require the use of a Power Driver.
Which Power Driver Is Right For You?
The DMX1200 has the distinction of being the only rack-mountable Lo-Vo Power Driver.
The DMX1800 and the DMX1200 give you more flexibility over control to split your channels into different zones depending on your needs. The DMX600 is more limited in its control options. You can divide your DMX600’s channels into four zones when using 30Watt Warm White fixtures, but all four channels must be a single zone when using color LEDs.
The DMX1800 has to be hardwired, but the DMX600 & DMX1200 can easily plug into a standard wall outlet with the included cable. (Be sure the power outlet matches the required voltage for your unit).
DMX600 | DMX1200 | DMX1800 | |
LED Spatial Bars Powered | 4 | 8 | 12 |
