A Quick Guide on Finding DMX Traits for a Fixture Without a Profile

How to Find DMX Address on a Light

If you’re working with a lighting fixture that doesn’t have a profile readily available, don’t worry! You can still figure out its DMX traits with a bit of patience and testing. Here’s a quick guide:

1. Understand the Basics

• DMX Channels: Each channel controls a specific function (e.g., dimmer, color, strobe).
• Values (0–255): DMX operates on a range of values. Different functions activate at specific ranges.

You can learn more about DMX here!

2. Gather Necessary Tools

• DMX Controller: Physical or software-based.
• DMX Cable: To connect your controller and fixture.
• Fixture Manual: Check if you can find a PDF online for clues.
• Time and Patience: This is a trial-and-error process.

3. Start with Basic Testing

• Power Up the Fixture: Ensure it’s connected correctly.
• Set DMX Address: Assign a starting address (e.g., 1).
• Test Channels One by One: On your controller, incrementally increase the value of each channel and note the effect produced (e.g., dimming, color change).

4. Document Your Findings

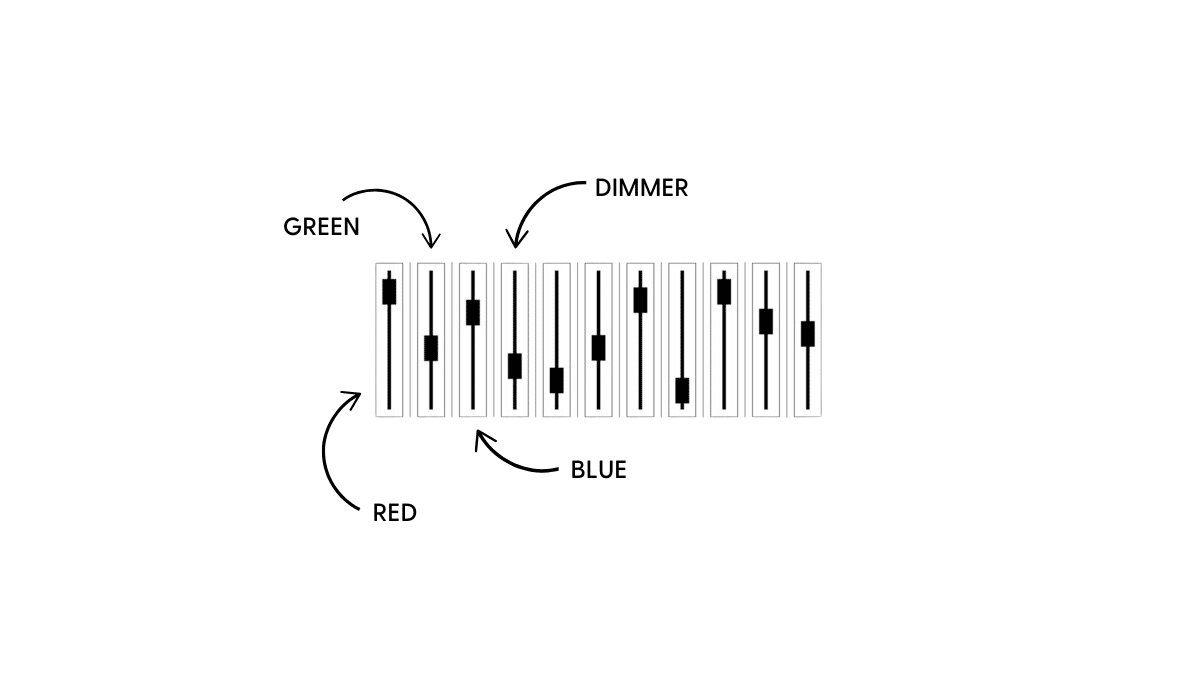

• Channel Map: Create a list of what each channel does.

Example:

• Channel 1: Dimmer
• Channel 2: Red
• Channel 3: Green
• Channel 4: Blue
• Channel 5: Strobe

• Behavior at Specific Values: Note if certain ranges trigger special effects (e.g., 128–255 for strobe speed).

5. Test for Modes

Some fixtures have multiple DMX modes (e.g., 8-channel, 16-channel). Test other possible configurations:

• Adjust the starting address.
• Repeat the process to identify differences between modes.

6. Compare Online Resources

• Search for the fixture’s brand/model online. Even if a profile isn’t available, forums or user reviews might offer insights.

7. Build Your Own Profile

Once you’ve mapped the channels, you can create a custom profile in your lighting software or controller.

8. Consult the Community

If you’re stuck, ask for help in DMX forums or social media groups. Someone might have already mapped the same fixture.

With persistence, you can figure out the DMX traits of almost any fixture. Good luck!
